Kersten SCHN 45 · compact snow ploughs
Clear winter routes.
Keep your machine working.
Choose a 45 cm-high snow blade for your pedestrian tractor, ride-on mower or compact tractor. Match the connection and controls first, then choose the width for your paths, entrances and parking areas.
What machine will you use?
Start with the connection, not just the blade width.
A complete mower kit and a blade for an existing linkage are different purchases. Use your machine and existing mounting system to find the right section.

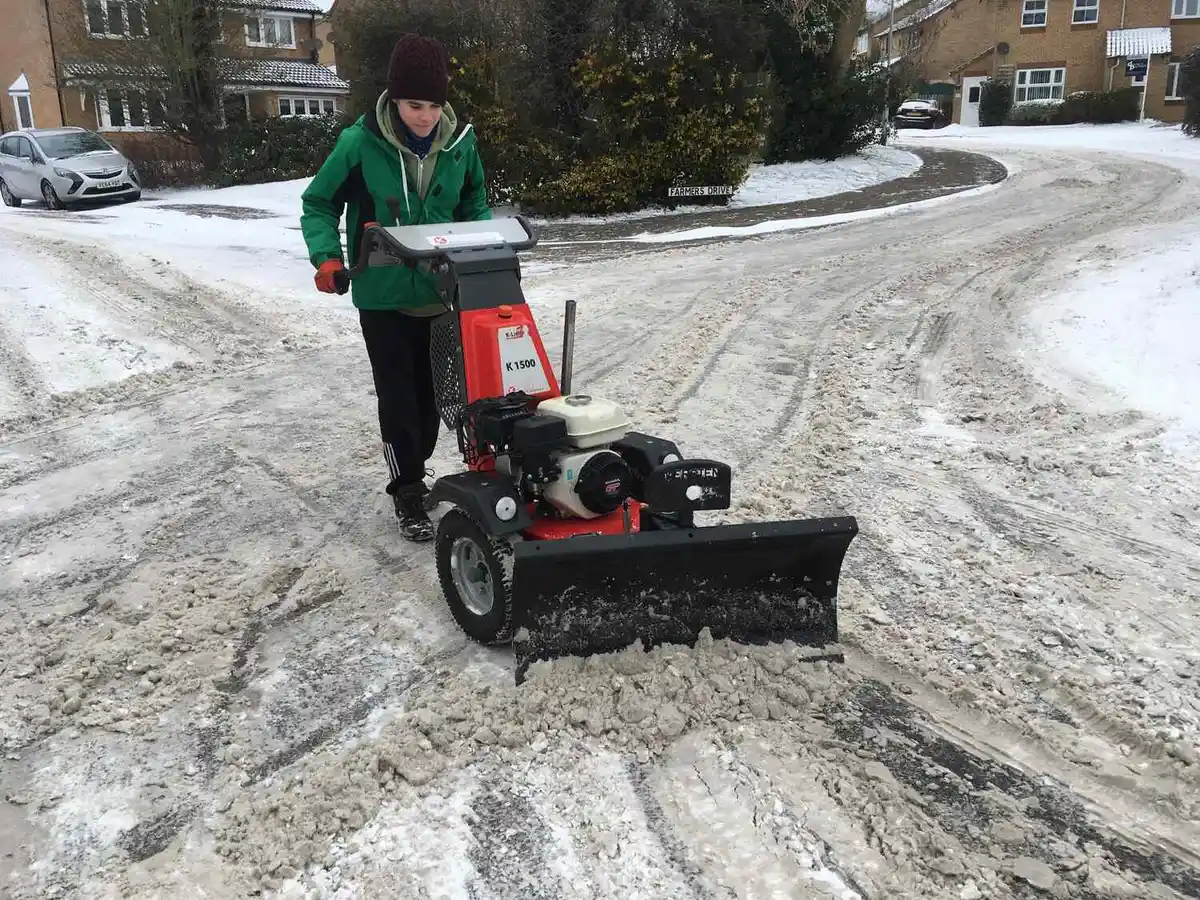

Pedestrian attachments · 35 or 70 mm
Three compact blades for two-wheel carriers.
Keep pedestrian routes open.
Compact two-wheel machines are useful where access, turns and obstacles make a larger carrier awkward. Angle the blade to move snow alongside the route and use a controlled travel speed.
35 mm and 70 mm attachments are separate systems. The 35 mm listing links to K820, K820 Pro and K1500. The 70 mm listings link to K2100, UBS and Matador M-Trac models; confirm the exact machine and connection.
| Attachment · product link | Width / connection | Manual angling | Choose it when | Current attachment price |
|---|---|---|---|---|
| SCHN 100 ST-K 35 → | 100 cm / 35 mm | 22° listed | You have a compatible 35 mm K-series carrier and need compact route clearance. | £995.00Ex VAT · checked 5 Oct 2026 |
| SCHN 100 FK-M-KU 70 → | 100 cm / 70 mm | 30° listed | You have a compatible 70 mm carrier but need a narrower blade for access. | £1,195.00Ex VAT · checked 5 Oct 2026 |
| SCHN 125 FK-M-KU 70 → | 125 cm / 70 mm | 30° listed | Your 70 mm carrier and route can accommodate the wider blade. | £1,395.00Ex VAT · checked 5 Oct 2026 |
The carrier supplies the movement. These are manually angled plough attachments, not powered rotary implements. Check the carrier’s traction, tyre equipment and permitted operating conditions separately.
Compare pedestrian two-wheel tractors →Complete mower kits · mechanical or hydraulic
Put a suitable mower to work through winter.
The FK-PAK listings provide a 125 cm-wide, 45 cm-high plough with the mounting arrangement for a specified mower. Choose mechanical lever operation or hydraulic lift and angling from the seat.
John Deere · 125 cm kits
Mechanical listing: X300 / X540.
Hydraulic listing: X300 / X540 / X590.
Choose mechanical control for a straightforward plough setup; choose hydraulic control when seat-operated lift and angling are priorities.
| Kit · product link | Current kit price |
|---|---|
| Mechanical FK-PAK-M → | £1,295.00Ex VAT · checked 5 Oct 2026 |
| Hydraulic FK-PAK → | £2,795.00Ex VAT · checked 5 Oct 2026 |
Kubota GR series · 125 cm kits
Mechanical listing: GR1600, GR1600-II, GR2120 / GR2120S.
Hydraulic listing: GR1600, GR1600-II, GR2120 / GR2120S.
Choose mechanical control for a straightforward plough setup; choose hydraulic control when seat-operated lift and angling are priorities.
| Kit · product link | Current kit price |
|---|---|
| Mechanical FK-PAK-M → | £1,295.00Ex VAT · checked 5 Oct 2026 |
| Hydraulic FK-PAK → | £2,934.75Ex VAT · checked 5 Oct 2026 |
Iseki SXG216 · 125 cm kits
Mechanical listing: SXG216.
Hydraulic listing: SXG216.
Choose mechanical control for a straightforward plough setup; choose hydraulic control when seat-operated lift and angling are priorities.
| Kit · product link | Current kit price |
|---|---|
| Mechanical FK-PAK-M → | £1,295.00Ex VAT · checked 5 Oct 2026 |
| Hydraulic FK-PAK → | £2,795.00Ex VAT · checked 5 Oct 2026 |
Confirm the exact mower variant. These listings include mounting equipment, but the scope of the hydraulic pack, controls, hoses and fitting should be confirmed in your quotation. A model family name alone is not enough to establish fitment.
For a mower that will also carry a sweeper or blower, discuss the wider FKDR attachment system before choosing a dedicated plough kit.
Compare a dedicated kit with a multi-attachment setup →Blades for an existing FKDR linkage
Use the same carrier for more than one season.
Add a blade to the FKDR system.
The FK-FKDR blades use the FKDR front coupling triangle. A compatible hydraulic linkage provides lift, lowering and angling from the seat, and can support other suitable maintenance attachments.
These blade prices exclude the FKDR linkage. Confirm whether your existing installation has the required lifting and angling functions.
| Blade · product link | Width × height | Choose it when | Current blade price |
|---|---|---|---|
| SCHN 11045 FK-FKDR → | 110 × 45 cm | Access is tight and the angled blade still clears the carrier’s wheel tracks. | £850.00Ex VAT · checked 5 Oct 2026 |
| SCHN 12545 FK-FKDR → | 125 × 45 cm | You want a middle width for a suitable mower and mixed site routes. | £1,150.00Ex VAT · checked 5 Oct 2026 |
| SCHN 13545 FK-FKDR → | 135 × 45 cm | You need wider coverage and have verified carrier capacity and access. | £1,250.00Ex VAT · checked 5 Oct 2026 |
Need the FKDR linkage as well?
The following carrier-specific listings provide separate routes into the FKDR system. Confirm the full model, hydraulic power provision, controls and installation scope.
| Carrier-specific linkage · product link | Current linkage price |
|---|---|
| Kubota GR2100 / GR2120 / GR2120S → | £2,495.00Ex VAT · checked 5 Oct 2026 |
| Kubota GR1600 / GR1600-II → | £2,495.00Ex VAT · checked 5 Oct 2026 |
| Iseki SXG216 → | £2,495.00Ex VAT · checked 5 Oct 2026 |
| John Deere X500 series → | £2,495.00Ex VAT · checked 5 Oct 2026 |
| John Deere X300 series → | £2,495.00Ex VAT · checked 5 Oct 2026 |
Linkage and blade are separate listings. Compatibility must be checked for the complete assembly; the prices are not a fitted package quotation.
Compact tractor and outfront-mower blades
Choose the blade and ABR mounting arrangement together.
The FK-ABR blades suit an appropriately specified front linkage or lift system. The correct ABR-SCHN bracket connects the blade to that system; it is separate from the blade price.
SCHN 12545 FK-ABR
Choose it where 125 cm provides sufficient track coverage while keeping the installation compact.
SCHN 13545 FK-ABR
Choose it for a little more coverage; a 135 cm installation is demonstrated on the Kubota EK1-261.
Carrier → front linkage / lift → ABR-SCHN bracket → blade. Confirm lift capacity at the attachment position, axle limits, ballast and hydraulic controls. The blade is pushed by the carrier and does not need a rotating PTO drive.
The FK-ABR listings show hydraulic angling and 20 L/min. Kersten’s EK1 installation also describes manual angling as an alternative; confirm the exact control arrangement for your quotation.
Useful design details across the range
Guide the snow. Control the ground contact.
Curved mouldboard
The curve guides snow up and across the blade towards the discharge side. Plan where the resulting windrow will sit so entrances and crossings remain usable.
Sprung break-back
The blade can yield when it meets an obstruction, helping reduce impact loads. Inspect the route and work at a controlled speed rather than relying on the springs alone.
Skids and replaceable edge
Set the blade height for the surface and maintain the wearing edge. Correct ground contact helps avoid unnecessary wear and moving loose surface material.
Make the specification fit your site
Which attachment suits your carrier?
Identify the carrier
Record the full model, existing connection and controls. Photograph the mounting points.
Measure the route
Check gateways, wheel-track coverage when angled and space for displaced snow.
Match the controls
Specify manual or hydraulic operation, the lift system and any required power provision.
Check the fitted setup
Confirm capacities, traction, hoses, brackets and installation before ordering.
45 cm is the blade height. It is not a guaranteed depth of snow the machine can clear. Snow condition, traction, blade angle and carrier capacity determine what the complete setup can handle.
Check the machine and attachment combination →Product-specific consumables
Order the edge for your actual blade.
Replace the wearing part before the season.
Choose by the blade model, serial number, edge length and fixing pattern. The 100, 125 and 135 cm listings describe urethane; the 110 cm listing describes Robalon plastic. Confirm the supplied material and hardware; equal blade height does not make all fittings identical.
| Edge · product link | Listed part code | Current price |
|---|---|---|
| 100 cm replacement edge → | 800 105 106 | £70.94Ex VAT · checked 5 Oct 2026 |
| 110 cm replacement edge → | 800 110 106 | £91.42Ex VAT · checked 5 Oct 2026 |
| 125 cm replacement edge → | 800 125 106 | £85.00Ex VAT · checked 5 Oct 2026 |
| 135 cm replacement edge → | 800 135 106 | £103.34Ex VAT · checked 5 Oct 2026 |
Real installations and technical resources
See which setup suits your maintenance round.

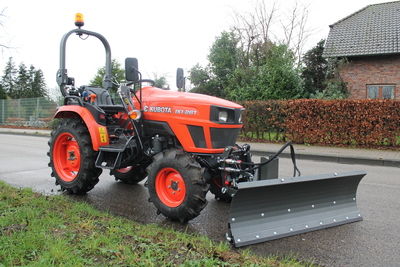

Kubota EK1-261 · a 135 cm tractor setup
A SCHN 13545 FK-ABR, ABR-SCHN-KD bracket and matching front linkage, with hydraulic angling.
Read the Kersten article →
Convert your mower for winter
Compare mechanical lever operation with a hydraulic pack and FKDR linkage, plus spreading options.
Read the Kersten article →
Kubota GR2120 · year-round attachments
See how a carrier-specific FKDR system supports sweeping, brushing and other maintenance tasks as well as a snow-plough option.
Read the Kersten article →Instructions and parts information
Select the document for the actual mounting family and machine generation.
Snow clearance and ice treatment are different tasks
Complete your winter equipment.
Compare sweepers for lighter fresh snow and year-round cleaning →
Before you order
Your SCHN 45 questions answered.
What does SCHN 45 mean?
It identifies the 45 cm blade height. Working widths vary by mounting family: pedestrian 100 or 125 cm; complete mower kits 125 cm; FKDR blades 110, 125 or 135 cm; FK-ABR blades 125 or 135 cm.
Are the 35 mm and 70 mm attachments interchangeable?
They are different connection systems. Select the model for the carrier’s actual interface and verify any proposed adapter rather than assuming every K-series or UBS machine takes the same blade.
What is included in a complete mower kit?
The FK-PAK listings include the plough and mounting equipment for the specified mower. Confirm the exact variant, controls, hydraulic pack where applicable, hoses and fitting in the quotation.
What is the difference between FK-PAK and FK-FKDR?
FK-PAK is listed as a mower-specific plough kit. FK-FKDR is a blade for the FKDR front coupling system; the compatible linkage and its controls are separate requirements.
Does an FK-ABR blade fit directly to the front linkage?
The correct ABR-SCHN bracket is normally required between the blade and the carrier’s front linkage or lift arrangement. These blade prices exclude that bracket.
Do all versions need 20 L/min hydraulics?
No. Pedestrian ploughs and mechanical mower kits use manual blade controls. The FK-ABR hydraulic listings specify 20 L/min; hydraulic mower and FKDR installations require their own matched control and power arrangement.
Does the snow plough need a PTO?
The carrier pushes the blade, so the plough has no rotating implement to drive from a PTO. The selected mounting and lifting system, and any hydraulic controls, still need to be specified correctly.
Will ploughing remove all ice?
No. Assess remaining ice or compacted material separately and include suitable treatment and follow-up inspections in the winter maintenance plan.
Match the blade to the complete setup
Tell us what machine you have.
Send the make, full model, mounting and control details, route width and surfaces to be cleared. We’ll help match the plough, connection and installation for your site.
