Front Linkage Kit for John Deere X500 series ride-on mowers

Front Linkage Kit for John Deere X500 series ride-on mowers

FKDR Linkages

Kersten Wholegoods Item Code: FKDR-HYDR-JDX500

£ 2,495.00 GBP (£ 2,495.00 / Piece)

The FKDR is a front linkage kit for your Ride on Mower - This kit is for the John Deere X500 and comes complete with a hydraulic tank and pump. This turns your mower into a versatile multi-tool for lots of groundcare tasks.

Tank SizeStyleCouplingsTractor
10LFKDR1/2"X500
  1. Hydraulic Lift and Angling: Allows attachments to be lifted, lowered, and pivoted left/right using a hydraulic system.
  2. Integrated Hydraulic Tank: Contains control valves and houses the control panel for stepless adjustment of lift and angling.
  3. Control Panel with Sticks: Positioned on top of the hydraulic tank for intuitive operation from the driver's seat.
  4. 1/2 inch Hydraulic Couplings: For quick and secure attachment of hydraulic lines.
  5. Hydraulic Valve Configuration:

1 x Double-acting valve

1 x Double-acting valve with float position

1 x Motor drive with variable speed (for hydraulically driven attachments)

  1. FKDR-Style A-Frame: Male coupling triangle designed to fit Kersten’s range of front-mounted attachments.
  2. 2-Year Warranty: Ensures peace of mind and long-term performance.

Design Features

Integrated Reservoir

Simple Fitment

Bracket for FKDR

Ergonomic Controls

Auxilliary Drive

Quick Hitch

Product Overview

FK-FKDR Hydraulic Front Linkage for Ride-On Mowers

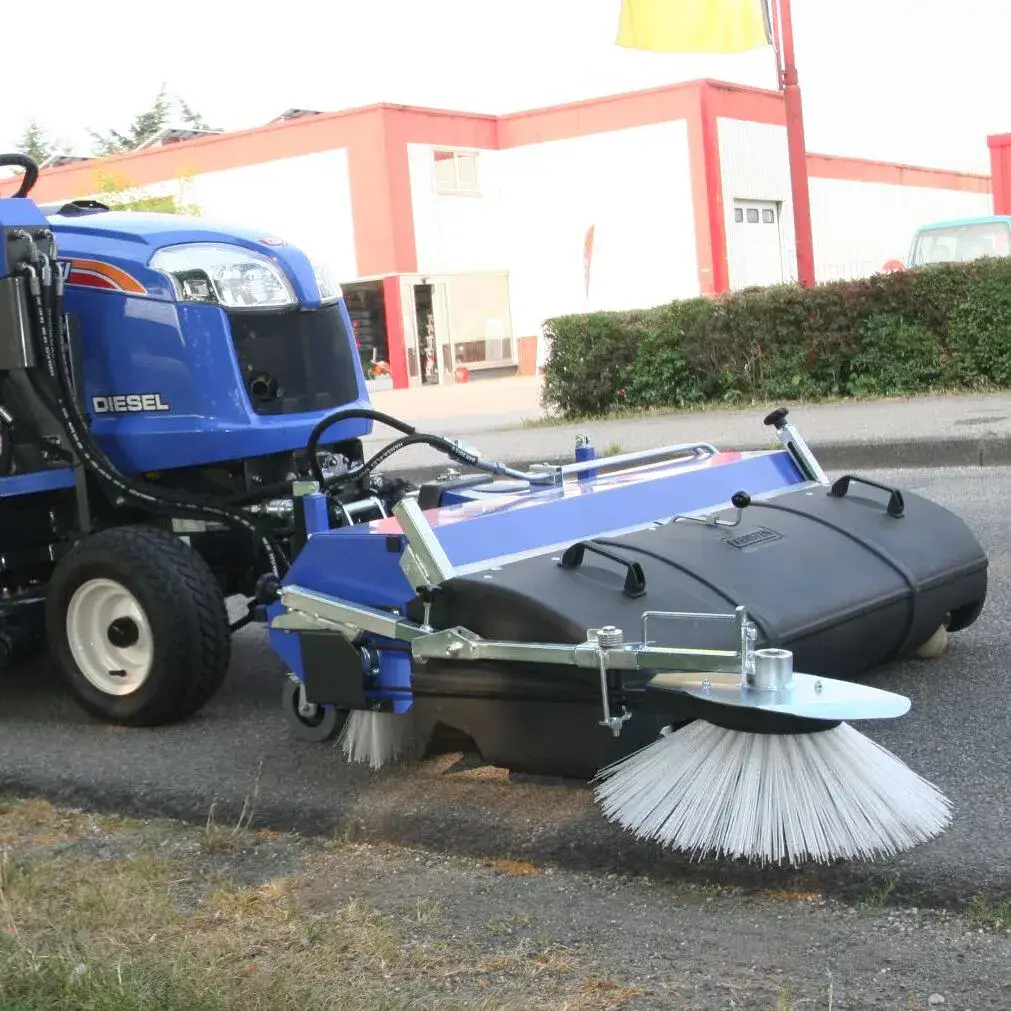

The FK-FKDR Hydraulic Front Linkage transforms ride-on mowers into multifunctional maintenance machines. Designed with a hydraulic coupling triangle and male FKDR-style A-frame, it allows rapid attachment of a wide range of implements — including sweepers, snow blades, weed burners, and blowers. With integrated hydraulic lift and pivot functions, stepless motor speed control, and ergonomic controls at the driver’s seat, the FK-FKDR delivers precise operation, efficiency, and comfort for year-round grounds maintenance tasks.

Mounting System
Hydraulic Functions
Control
Front Linkage Weight

Dome Triangle with A-Frame

Lift, Lower, Pivot ±30°, Variable-Speed Drive

Ergonomic Panel at Driver's Seat

17 kg

Technical Specifications

Specification Details
Mounting Dome Triangle with Male FKDR A-Frame
Compatible Mowers Kubota GR1600
Height 265 mm
Length 305 mm
Hub 195 mm
Width 282 mm
Swivel Angle Left and Right 30°
Weight 17 kg
Hydraulics Integrated tank and control valves (1 x double acting, 1 x double acting with float, 1 x variable-speed motor drive)
Hydraulic Couplings 1/2 inch Hydraulic couplings
Warranty 2 Years



  • Hydraulic Coupling Triangle enables quick and secure attachment of front-mounted implements.
  • Integrated Lift and Pivot allows smooth vertical and lateral control directly from the driver’s seat.
  • Variable-Speed Hydraulic Motor Drive provides stepless control of power to attachments without belt slippage.
  • Parallelogram Linkage maintains consistent implement contact with the ground for even, accurate operation.
  • Ergonomic Control Panel provides intuitive control of lifting, pivoting, and oil flow adjustment from the driver’s position.
  • Multifunctional Platform — ideal for sweepers, snow blades, leaf blowers, and weed burners.
  • Lightweight but Durable — just 17 kg, designed to integrate seamlessly with compatible ride-on mowers.
  • FKDR A-Frame compatible with a wide range of Kersten attachments for year-round use.
  • 2-Year Warranty ensures reliability and peace of mind for professional users.

Applications

  • Grounds maintenance across urban and rural settings using sweepers and weed control tools
  • Snow and leaf clearance during winter and autumn
  • Used by local authorities, contractors, and estate managers seeking year-round productivity

Applications

Moss and Weeds on hard surfaces

When Moss and Weeds become established on hard surfaces, such as block paving; tarmac; or concrete - they are difficult to remove with a sweeper. For this application we have made the Weedbrush. Kersten weedbrushes have been designed to quickly remove weeds and moss.

Learn More →

Applications

Maintaining Artificial Surfaces

In addition to the normal problems we face maintaining hard surfaces; artificial surfaces have infill, which gets compacted and also migrates around the surface. This infill can be de-compacted with a sweeper allowing the surface to drain properly. The sweeper will also even out the distribution of infill and stand up the grass, making the surface much nicer to use.

Learn More →

Winter Maintenance

Keeping pavements and highstreets open is also a challenge, often undertaken by council teams. A Kersten Plough or Spreader can allow facilities, key bus stops and other transport networks to remain accessible to pedestrians.

Learn More →

“"We could be spending up to 20 hours a week removing moss and dirt from the pedestrian areas," explained John, "and it seemed nothing we did made much difference." "I was so impressed, I needed the machine there and then."”
Tyne Valley Garden Centre

Blogs related to FKDR Linkage

Case study: Snow Plough for Iseki SXG 324 Low Tip - Cover Image
Tractor Attachments
Case study: Snow Plough for Iseki SXG 324 Low Tip

Winter doesn’t have to mean downtime for your ride-on mower! Kersten offers a tailored ...

Case Study: Weedbrush for John Deere X series Ride on Mower - Cover Image
Tractor Attachments
Case Study: Weedbrush for John Deere X series Ride on Mower

The FKDR allows yout Ride on Mower to carry out weed brushing tasks.

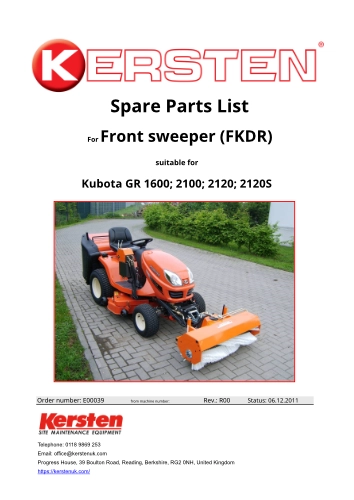

Instruction Manual and Spare Parts List
