Front linkages, PTO systems & attachment brackets
Turn the front of your tractor into a proper working tool carrier.
A correctly specified front linkage gives you lift, control and a repeatable mounting point. Add the right PTO or hydraulic power system and the correct ABR bracket, and the tractor can operate sweepers, snow equipment, weed brushes, mowers and other front-mounted attachments.
The complete mounting system
There are four parts to get right — not just the linkage.
The easiest way to understand a front-mounted attachment is to follow the connection from the tractor to the implement. The exact components vary by tractor and attachment, but the principle is consistent.
Your tractor
Make, model, year, available hydraulics, mid/rear PTO and front axle geometry determine which system can be fitted.
Front linkage
Provides the structural mounting point and lift/lower function. Many systems use a Cat. 0, Cat. 1 or quick-hitch A-frame arrangement.
PTO or hydraulic power
Powered attachments need the correct drive source. Depending on tractor and implement this may be a front PTO, hydraulic supply or separate hydraulic power pack.
ABR bracket + attachment
This is the part that is often missed. The attachment normally needs a matching bracket between its frame and the linkage. Kersten bracket codes commonly begin ABR.
Why put the attachment at the front?
Do the job before the tractor drives over it.
A front linkage is not simply a different place to hang an implement. For many maintenance tasks it changes visibility, manoeuvrability and the order in which the work happens.
Better visibility
See the edge of a sweeper, plough or weed brush from the driving position and place it more accurately around kerbs, paths and obstacles.
Work before the tyre
Sweep debris, clear snow or treat vegetation before the tractor wheels compact or drive over the material you are trying to remove.
Keep weight close
Purpose-designed linkages keep the attachment as close to the tractor as practical, helping lift geometry and manoeuvrability.
Use both ends
The rear linkage can remain available for a second compatible implement — for example ploughing at the front while spreading at the rear.
Front power systems
The PTO kit is matched to the tractor — and the attachment must match the PTO.
Kersten and Matev front power systems are not one universal PTO kit. The correct solution depends on where power can be taken from the tractor, the available installation space, the required PTO speed and direction, and the implement being driven.
Independent engine-driven front PTO
On suitable tractors the front PTO can be driven directly from the engine. Current Kersten kits such as the Kubota STW system use a wet multi-plate clutch and an integrated oil supply.
Mid-PTO extension to the front
Where the tractor already has a suitable mid PTO, a model-specific shaft kit can extend that drive to the front. This is used on a number of compact-tractor installations.
Hydraulic drive or auxiliary power pack
Some attachments are hydraulic rather than mechanically PTO-driven. If the tractor has enough flow and pressure, its own services may be used; where it does not, an auxiliary PTO-driven hydraulic pack can provide the required oil supply.
1000 rpm, 2000 rpm, clockwise, counter-clockwise — these are not interchangeable details.
Front PTO speed and rotation direction vary between tractor systems. For example, the Kersten Kubota STW kit is a 1000 rpm clockwise system, while some Iseki front PTO solutions are specified at 2000 rpm. The attachment gearbox and PTO shaft must be specified to suit the actual tractor-side output.
The connection people often overlook
ABR is the bridge between the linkage and the attachment.
The tractor linkage and the attachment are two separate systems. A correctly selected adapter bracket connects them and puts the implement in the right mounting geometry.
One attachment may have several bracket choices.
A sweeper, snow plough or other implement can often be mounted to different tractor interfaces. The ABR code identifies the bracket that adapts the attachment to the chosen linkage.
- ABR 60 FRONT — an example for FKM 60 sweepers on Cat. 1 / Cat. 2 front link arms.
- ABR 60 KD — an example for the same sweeper family using a quick-attach A-frame.
- ABR-SCHN-DP — an example connecting SCHN snow ploughs to Cat. I / II tractor front linkage.
So when ordering, we need both sides of the connection: the exact tractor/linkage and the exact attachment.
Examples from the current range
See how linkage, power and bracket components are sold separately.
These examples illustrate the system. Your tractor may use different components, lifting capacity, PTO speed or coupling category.
Front linkage
Kubota G231 / G261 Front Linkage
Cat. 0 A-frame linkage with hydraulic lift and compact geometry, with compatible front PTO and hydraulic options available separately.
Front PTO
Kubota STW Front PTO Kit
Engine-driven 1000 rpm clockwise front PTO with wet multi-plate clutch, integrated oil supply and six-spline output.
Attachment bracket
ABR 60 FRONT
Mounting bracket for FKM 60-series sweepers to tractor front linkage using Cat. 1 or Cat. 2 link arms.
Start with the tractor
Find linkage and PTO options by tractor manufacturer.
Front linkage fitment is model-specific. Start with the tractor family, then confirm the linkage, required power system and attachment bracket as one package.
Kubota
Ride-on, sub-compact and compact tractor linkage, PTO and hydraulic options.
See Kubota choices ↓John Deere
Front linkage and power options across X, 10, 20, 30 and 4R families.
See John Deere choices ↓
Iseki
Systems for SXG, TXG, TM, TH, TLE and TG compact tractor families.
See Iseki choices ↓New Holland
Front linkage, PTO and accessory routes for Boomer compact tractors.
See New Holland choices ↓Kioti
Front linkage and PTO options for selected CK and CX tractor families.
See Kioti choices ↓TYM, Farmtrac & others
If your model is not shown, we can still help specify linkage, power and the ABR interface.
Ask about your tractor ↓Kubota front systems
Kubota linkage, PTO and bracket choices.
Cover compact ride-on and compact tractor routes, then add the correct PTO or hydraulic power option and the ABR bracket that interfaces with the attachment.
Kubota G231 / G261 linkage
Cat. 0 A-frame front linkage for the popular Kubota ride-on tractor family.
View product →Kubota STW PTO kit
Engine-driven front PTO option for suitable STW-series tractors.
View product →Kubota systems overview
See the wider Kubota family coverage, including further front-linkage, power and accessory options.
See all Kubota systems →John Deere front systems
Linkage and power options for John Deere X, 1R, 2R, 3R and 4R-type routes.
Useful where a John Deere compact tractor or out-front machine needs to move beyond mowing and into sweeping, winter work or weed control.
JD 2026R front linkage kit
A current example of the John Deere front-linkage route for compact tractor users.
View product →John Deere tractor families
See coverage across X-series, 10/20/30-series and 4R families from the John Deere landing page.
See covered families →Front-mounted attachment route
Choose the John Deere tractor first, then match the linkage, PTO and ABR bracket to the attachment.
See all John Deere systems →Iseki front systems
Iseki routes for SXG, TXG, TM, TH, TLE and TG tractors.
The Iseki range includes front-linkage and PTO solutions for a broad mix of compact amenity tractors. Check PTO speed and direction carefully on these systems.
Iseki TH 5420 front linkage kit
Example current TH-series front-linkage product route with Cat. 0 A-frame format.
View product →SXG to TG family coverage
See the full landing page for ride-on and compact Iseki tractor compatibility routes.
See Iseki families →Check PTO speed and rotation
Some Iseki systems have specific PTO characteristics. Confirm the exact drive specification before choosing the attachment gearbox.
Ask us to specify an Iseki system →New Holland front systems
New Holland Boomer linkage, PTO and accessory routes.
Use this route for Boomer compact tractors, then match the correct front-linkage assembly, power option and ABR interface for the planned attachment.
Boomer 20–55 series routes
The current New Holland landing page covers compact and sub-compact Boomer tractors.
See Boomer systems →Linkage selection by tractor
Start with the exact Boomer model so lift geometry, mounting points and power options are correct.
Choose your New Holland tractor →Add the correct ABR bracket
Once linkage and power are right, specify the matching ABR bracket between the linkage and the attachment.
Ask for a complete New Holland package →Kioti front systems
Selected Kioti CK and CX front-linkage and PTO routes.
Kioti systems are best specified by exact tractor model so the front lift kit, PTO route and bracket arrangement stay coherent from the start.
Selected CK and CX families
See the current Kioti linkage landing page for the main tractor families already covered.
See Kioti systems →Linkage + PTO package selection
Choose the exact model first, then match the required power route to the front-mounted implement.
Browse Kioti linkage options →Need help identifying the right kit?
If you already know the tractor and the attachment, we can help specify the full Kioti package.
Ask about your Kioti tractor →Other tractor makes
TYM, Farmtrac and less common tractor routes can still be specified.
If the tractor is not listed in a public brand page yet, the same process still applies: tractor details, linkage, power system, ABR bracket and attachment.
Exact make, model and year
That tells us mounting geometry, lift possibilities and potential power routes.
Send your tractor details →Which attachment you want to run
Sweeper, plough, blower, weed brush or spreader choice determines PTO, hydraulics and ABR bracket selection.
Tell us the intended attachment →Do not forget the ABR bracket
Most front-attachment packages still need the correct ABR interface between linkage and implement.
See why the ABR bracket matters →What can a front linkage carry?
Build the tractor around the jobs you actually need it to do.
Once linkage, power and ABR fitment are correct, the same tractor can move between very different maintenance tasks through the year.
Sweepers
Hydraulic or PTO-driven front sweeping for debris, moss, mud, leaves and surface maintenance.
Explore sweepers →
Weed brushes
Front-mounted mechanical weed removal where visibility and accurate edge placement matter.
Explore weed brushes →

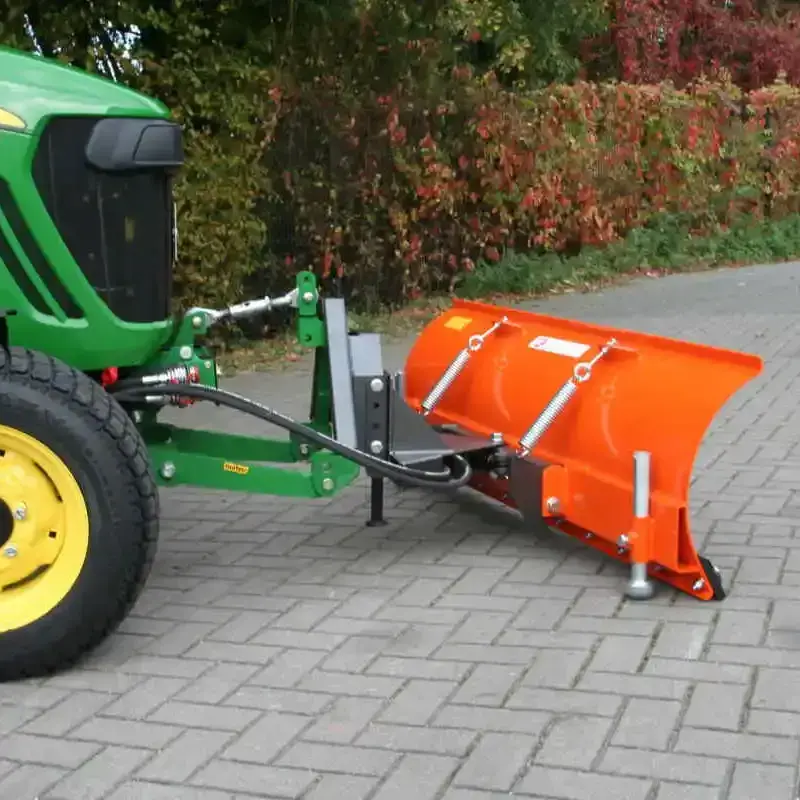

Snow ploughs
A natural front-linkage job: clear the route ahead while keeping the rear available for spreading.
Explore snow ploughs →

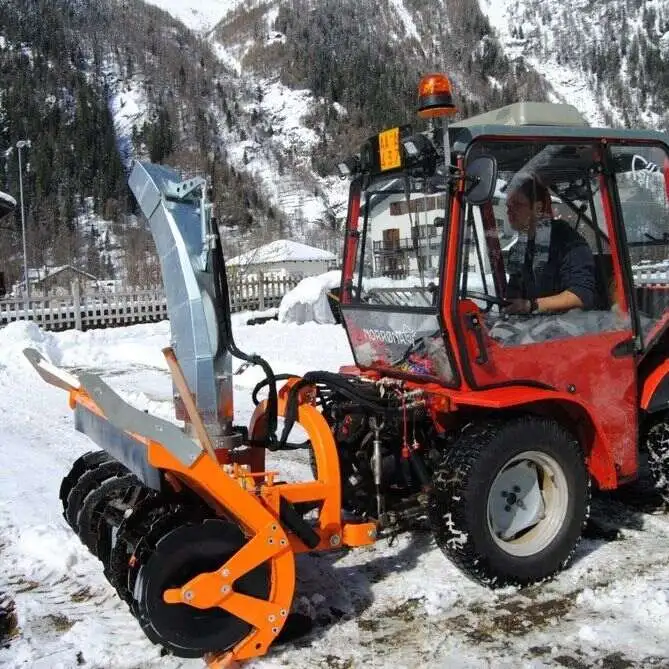

Snow blowers
Mechanically driven front equipment for deeper snow where a matched PTO system is essential.
Explore snow blowers →
Mowers
Selected front-mounted mowing systems for compact tractors and specialist carriers.
Explore grass cutting →

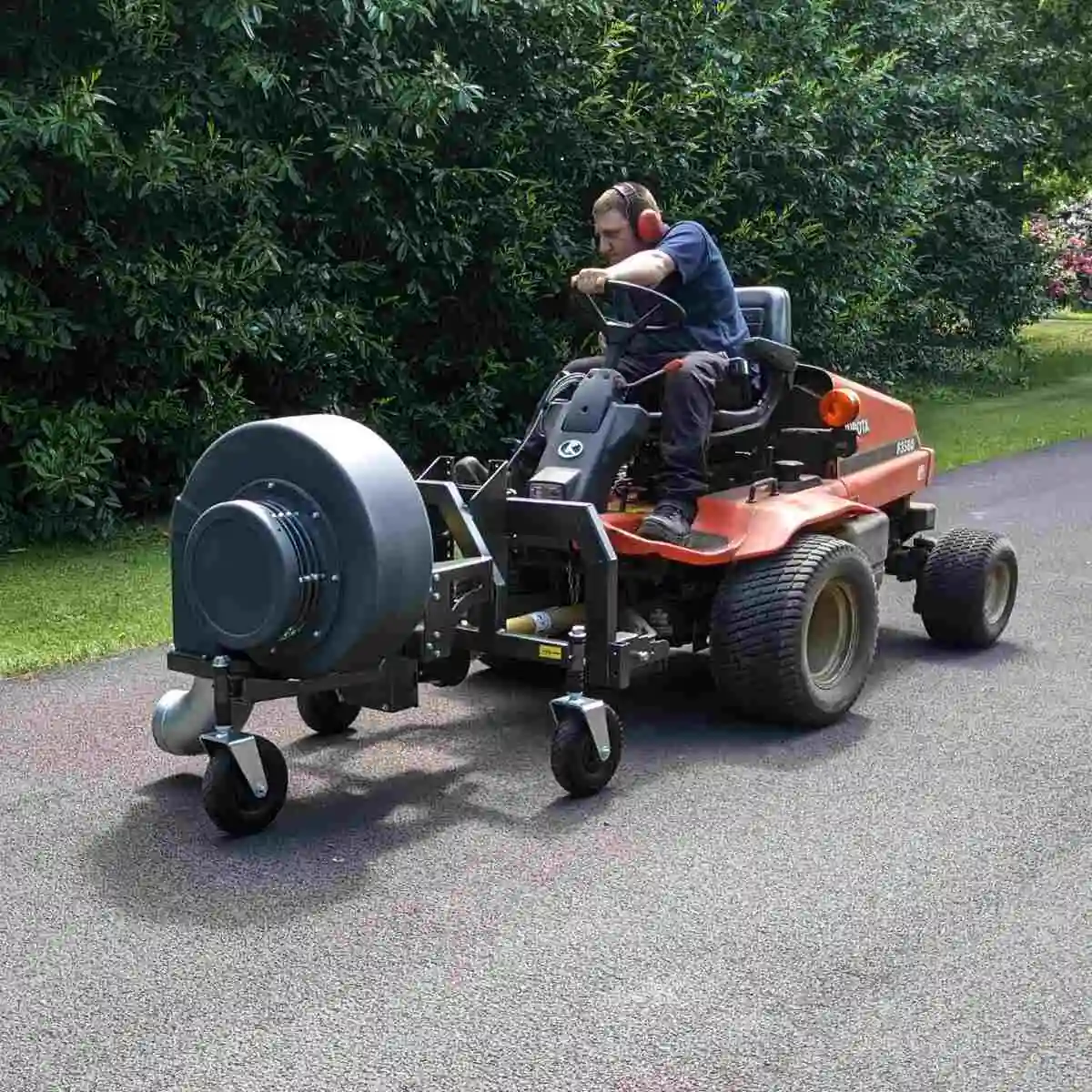

Blowers
High-output airflow attachments where front mounting improves visibility and route control.
Explore blowers →
Spreaders
Often used at the rear while a front linkage carries a plough or other winter attachment.
Explore spreaders →Other front attachments
Tell us the tractor and the job and we can check whether a suitable linkage, power and bracket package exists.
Ask about fitment →Before ordering
Give us these three pieces of information and we can specify the system properly.
Exact tractor
Make, full model designation, year where relevant, and any existing front loader, mower deck, mid PTO or hydraulic equipment.
Exact attachment
The sweeper, plough, blower, mower or other attachment — including working width and whether it is hydraulic, mechanical or unpowered.
How you want to use it
Working surface, lift requirements, hydraulic functions, collector or side-brush options, and any rear implement you intend to run at the same time.
Frequently asked questions
Front linkage, PTO and bracket questions
Do I need an ABR bracket if I already have a front linkage?
Usually, yes. The front linkage is the tractor-side mounting system; the attachment normally needs a compatible adapter bracket between its own frame and the linkage. Kersten attachment brackets commonly use an ABR item code.
Does every front attachment need a PTO?
No. Unpowered attachments such as some snow ploughs only need a suitable linkage and bracket. Hydraulic attachments need sufficient oil flow and pressure, while mechanical attachments need a compatible front PTO and shaft arrangement.
Can I use any 1000 rpm attachment on any 1000 rpm front PTO?
No. PTO speed is only one compatibility point. Rotation direction, shaft size and spline, attachment gearbox, shaft alignment, linkage geometry, lift capacity and guarding all need to be correct.
Why use a front linkage instead of a rear-mounted attachment?
Front mounting improves visibility and lets the attachment work on material before the tractor drives over it. It can also leave the rear of the tractor available for another compatible implement.
What if my tractor does not have enough hydraulic flow?
Some installations can use a separate PTO-driven hydraulic power pack. The correct solution depends on the attachment's flow and pressure requirement and the tractor's available PTO and hydraulic services.
Can you supply linkages for tractors not shown on the website?
Kersten supplies model-specific systems across a broad range of compact tractors and works with specialist linkage manufacturers including Matev. Send the exact tractor details so current availability can be checked.
Specify the complete package
Tell us the tractor and the attachment — we’ll check the linkage, PTO and ABR bracket together.
That avoids the common mistake of ordering a front linkage without the power system or attachment-side bracket needed to make the implement actually fit and work.
