Kersten KM 60 hydraulic sweepers
Put a larger brush
behind your tractor.
Heavy-duty sweeping with a 60 cm roller, pendulum suspension and four widths from 190 to 270 cm. Match rear linkage, hydraulic power and collection to the debris your site produces.
The current KM 60 range
Choose the width your site and carrier can handle.
All four H models use hydraulic drive for the roller. Rear tractor mounting is a practical route; suitable front, loader and forklift installations use the appropriate brackets and setup.
190 cm · hydraulic drive · Ø 60 cm
KM 19060 H
Choose it when: you need the narrowest current KM 60 for access roads and yards, with less working width to manoeuvre.
225 cm · hydraulic drive · Ø 60 cm
KM 22560 H
Choose it when: you want a wider cleaning pass while keeping below the largest two working widths.
250 cm · hydraulic drive · Ø 60 cm
KM 25060 H
Choose it when: you maintain larger yards and roads, with room and carrier capacity for a broad collecting setup.
270 cm · hydraulic drive · Ø 60 cm
KM 27060 H
Choose it when: you have open working areas and a carrier capable of handling the widest complete installation.
Specify the complete working load. Individual sweeper prices exclude the separately listed bracket, collector and options. Installation photographs may show accessories. The KM 25060 page gives conflicting weights of 240 and 260 kg; confirm the supplied weight. Include the bracket, collector, debris and water when checking lift capacity.
Listed package offers from £6,595 ex VAT. The 190, 225 and 250 cm product pages advertise a sweeper, mounting frame and collector box, labelled as 2025 offers. Checked 2 Oct 2026. Confirm current availability, the chosen width, bracket, contents and package price.
Heavy-duty construction with controlled brush contact
Built for bulky debris and changing ground.
A robust load path
The mounting frame supports the sweeper from its upper structure. CNC-folded and welded heavy-gauge steel gives the chassis the strength needed for repeated outdoor cleaning.
Pendulum ground following
The suspension lets the sweeper follow surface changes. Set the heavy-duty gauge wheels individually for effective roller contact instead of forcing the brush down with the linkage or boom.
Hydraulic power at the roller
An inboard orbital motor drives the five-row spiral brush through a tensioned duplex chain. The large roller provides space to move substantial debris into a windrow or collector.
Mounting, power and control
The bracket and hydraulics make the working combination.
For rear tractor use, plan tractor → rear three-point linkage + hydraulic power → ABR 60 HECK bracket → KM 60 sweeper. The rear PTO does not directly drive these H models.
Match the hitch
The rear bracket listing specifies Category I and II link arms. Confirm the actual geometry, clearance and loaded lift capacity.
Check continuous oil supply
Current listings specify 50 L/min. Confirm operating pressure, cooling, return arrangement and available flow at the sweeper.
Allow ground following
Match the carrier’s float and the mounting bracket to the surface. Set both gauge wheels to avoid excessive brush contact.
Plan the functions
Specify roller drive, collector emptying, hydraulic angling and gully brush controls together. Dust suppression also needs electrical power.
ABR 60 HECK · rear three-point linkage
Connects the sweeper to suitable Category I or II rear link arms. Confirm the complete installed load, hitch geometry and hydraulic routing.
ABR 60 GS · pallet-fork mounting
Pallet-tine pockets for suitable forklifts and loaders with pallet forks. Confirm tine dimensions, retention, float and the complete support-wheel arrangement.
Front and loader installations
Other carrier routes need a specified ABR interface and the correct conversion or working orientation. Agree the complete installation before assuming a front bracket or loader hitch is interchangeable.
| Loader mounting route | Current price |
|---|---|
| ABR 60 EURO · specified Euro hitch → | £1,750.00Ex VAT · checked 2 Oct 2026 |
| ABR 60 TELE · specified loader interface → | £1,995.00Ex VAT · checked 2 Oct 2026 |
Pick up the material or move it aside
Match the collector or guard to the job.
Collector for removal · guard for windrowing
Choose the SSB collector to remove loosened soil, leaves and organic debris from the site. Hydraulic emptying lets the operator discharge material from the operating position.
When moving material without collecting, use the matching SPL front guard to reduce debris spray. The guard is not a collector.
The collector mounts to the sweeper chassis and has adjustable height settings. Confirm its position as the brush wears; it differs from the FKM 60’s floating parallel-linkage collector.
| Working width | Hydraulic collector | Front guard |
|---|---|---|
| 190 cm |
SSB 19060 →
£1,895.00Ex VAT · checked 2 Oct 2026
|
SPL 19060 →
£450.00Ex VAT · checked 2 Oct 2026
|
| 225 cm |
SSB 22560 →
£1,950.00Ex VAT · checked 2 Oct 2026
|
SPL 22560 →
£500.00Ex VAT · checked 2 Oct 2026
|
| 250 cm |
SSB 25060 →
£1,995.00Ex VAT · checked 2 Oct 2026
|
SPL 25060 →
£550.00Ex VAT · checked 2 Oct 2026
|
| 270 cm |
SSB 27060 →
£2,150.00Ex VAT · checked 2 Oct 2026
|
SPL 27060 →
£650.00Ex VAT · checked 2 Oct 2026
|
Agree the emptying circuit before connection. The collector listings describe operation without an extra hydraulic service. Have the valves, couplings and carrier controls confirmed for the supplied build; do not assume every hydraulic arrangement is interchangeable.
| Support equipment | Current price |
|---|---|
|
LR-SSB-KM 60 · collector guide wheel → The listing specifies two front castor wheels for working widths from 150 cm; confirm kit quantities. |
Ask for a price |
|
MP-LR-ABR 60 KPL · mounting-frame wheel → Additional Ø250 × 85 wheel with spindle height adjustment; confirm mounting and quantity. |
£695.00Ex VAT · checked 2 Oct 2026
|
Clean the edge as well as the centre
Bring kerb debris into the sweeping path.
ASH 7060 R · right-hand gully brush
70 cm hydraulic brush with variable speed, spring-loaded collision protection and a storage position. Feeds kerb debris towards the main brush and collector.
ASH 7060 L · left-hand gully brush
Corresponding left-hand hydraulic brush for the chosen working direction and edge layout. Specify the mounting plate, controls and hydraulic supply together.
A gully brush cleans beyond the main roller’s reach. For established vegetation and compacted soil at the edge, compare a dedicated weed brush before sweeping and collection.
Control direction and manage dust
Add the functions your installation needs.
HSZ-180 KM 60 · hydraulic angling
Replaces manual angling with movement to either side from the operating position. Requires a suitable double-acting hydraulic service and the correct hoses and controls.
WAS water kits · dust suppression
A sweeper-mounted tank supplies the nozzle rail through a 12 V pump. The water helps bind dust during suitable work. Choose tank size for the duty and the carrier’s loaded capacity.
| Water kit | Current price |
|---|---|
| WAS 200 KM 60 · 200 litres → | £1,750.00Ex VAT · checked 2 Oct 2026 |
| WAS 100 KM 60 · 100 litres → | £1,550.00Ex VAT · checked 2 Oct 2026 |
A full tank adds approximately 100 or 200 kg of water before the hardware. Confirm electrical supply, mounting and the complete load.
Cab controls and automatic height systems: specify these against the exact machine and valve arrangement. Ask Kersten to confirm the compatible controls and height-adjustment options for your KM 60 build.
Choose the correct 60 cm sweeper family
KM 60 or FKM 60?
KM 60 · hydraulic drive and rear mounting
Four current widths from 190 to 270 cm, hydraulic roller drive and individually adjusted gauge wheels. A strong route for a suitable rear tractor installation, with specified front and loader alternatives.
The SSB collector is chassis-mounted and height adjustable. Choose the bracket and hydraulic arrangement for the complete build.
FKM 60 · front-mounted selection
Six widths from 130 to 250 cm with PTO or hydraulic drive listings. Its floating parallel-linkage collector and optional KM Control are useful reasons to compare a front installation.
Start with the surface and debris
What does your site need?
Water-based hockey, sand-filled and rubber-crumb surfaces need different brush and collection settings. Agree the setup with the surface supplier. Compare more active reciprocating brushes →
Actual installations and useful comparisons
See the whole working setup.
KM 60 on rear tractor linkage
A KM 60 example with ABR HECK rear mounting, hydraulic collection and water-spray dust suppression.
Read the case study →
Merlo · compare an FKM 60 setup
This related case study specifies FKM 22560 H, ABR 60 TELE and SSBF floating collection. Useful when comparing front-mounted ground following.
Read the case study →
Manitou · compare the larger KM 70
This related installation uses KM 25070 H with an ABR 70 TELE bracket and floating collector for road mud. It illustrates when another sweeper family suits the job.
Read the case study →Plan a regular cleaning regime
Remove the build-up before it becomes the problem.
Sweeping as preventative weed management
Why removing detritus and collecting the arisings helps limit the conditions that support weed growth.
Read the Kersten article →
Maintaining tarmac and concrete
A practical guide to regular sweeping, drainage routes, edge cleaning and remedial work on hard surfaces.
Read the Kersten article →Video and technical resources
Set up the brush for effective cleaning.
KM 60 video demonstration
Watch on YouTube →Manuals and setup
Use the operating manual and parts list for your machine’s build and serial number. Check brush contact, collector height and carrier float before work.
KM 60 instruction manual →KM 60 spare-parts lists →
Consumables for the working roller
Keep the replacement brush matched to the machine.
Order by width, diameter and part number

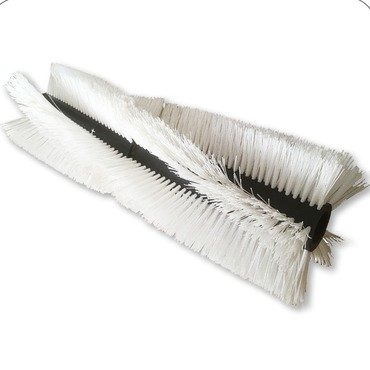

Use the machine serial number and exact roller specification when ordering. The photograph shows the individual replacement brush, not a complete sweeper.
One representative roller image is used for the range below; confirm the supplied sections and hub for your build.
| Replacement brush | Current price |
|---|---|
| 190 010 060 · 190 cm / Ø 60 cm → | £650.00Ex VAT · checked 2 Oct 2026 |
| 225 010 060 · 225 cm / Ø 60 cm → | £695.00Ex VAT · checked 2 Oct 2026 |
| 250 010 060 · 250 cm / Ø 60 cm → | £720.00Ex VAT · checked 2 Oct 2026 |
| 270 010 060 · 270 cm / Ø 60 cm → | £750.00Ex VAT · checked 2 Oct 2026 |
Different carriers and working scales
Compare the alternatives before specifying.
Before you order
Your KM 60 questions answered.
Does the KM 60 use my rear PTO?
The current KM 19060 H, KM 22560 H, KM 25060 H and KM 27060 H use hydraulic power for the roller. Rear three-point linkage supports and lifts the installation through the correct ABR bracket.
What hydraulic supply do I need?
Current listings specify 50 L/min. Confirm operating pressure, the return arrangement, oil cooling and continuous-duty capacity for the supplied machine and all accessories.
Is it only for rear mounting?
Rear tractor mounting is a practical route. Other front, loader and forklift installations are possible with the appropriate bracket, ground following and machine setup. Confirm the working orientation and any conversion required.
Is a collector included in the sweeper price?
The individual prices are separate. The 190, 225 and 250 cm pages advertise package offers from £6,595 ex VAT, labelled as 2025 offers. Confirm the width, bracket, collector, contents and current package price.
Is the collector the same as the FKM 60 collector?
The KM 60 SSB collector is chassis-mounted and height adjustable. The FKM 60 SSBF collector uses a floating parallel-linkage system. Confirm the right collector for the precise model and build.
Can it windrow material instead of collecting?
Use the suitable front brush guard when working without collection to help control debris discharge. Choose angling and brush contact for the surface and material.
Can I fit automatic height control?
Availability depends on the exact machine build and height-adjustment mechanism. Ask Kersten to confirm a compatible automatic-height system for your KM 60 installation.
Why is the 250 cm weight marked for confirmation?
Its product page gives 260 kg in the overview and 240 kg in the specification table. Confirm the supplied weight and include the bracket, collector, debris, water and other options when checking capacity.
Specify the complete working installation
Tell us about your tractor and your site.
Send the carrier make and model, linkage or loader interface, hydraulic supply and return, plus the surface, debris and access width. We’ll help match the sweeper, ABR bracket and options.
