Kersten KM 45 front-mounted sweepers
More work from your mower.
Cleaner surfaces across your site.
A front-mounted, 45 cm brush for suitable compact tractors, outfront mowers and utility vehicles. Choose 130, 150 or 165 cm, with PTO or hydraulic drive, then add collection, edge cleaning and dust control.
The main KM 45 range
Three widths. Two ways to power the brush.
Pick the width for your access routes and tyre track, then choose the drive your carrier can supply. All three widths have mechanical PTO (M) and hydraulic (H) product listings.
130 cm · Ø 45 cm roller
KM 13045
Choose it when: you need the most compact of these three widths, or want to limit the size and load of a collector installation.
KM 13045 M · mechanical PTO
Match PTO speed, rotation and shaft arrangement to the carrier.
KM 13045 H · hydraulic
Listed oil-flow requirement: 20 L/min. Confirm the complete circuit.
150 cm · Ø 45 cm roller
KM 15045
Choose it when: you need a wider pass for paths, yards and car parks, while keeping a compact front-mounted arrangement.
KM 15045 M · mechanical PTO
Match PTO speed, rotation and shaft arrangement to the carrier.
KM 15045 H · hydraulic
Listed oil-flow requirement: 20 L/min. Confirm the complete circuit.
165 cm · Ø 45 cm roller
KM 16545
Choose it when: your carrier, turning space and access routes can accommodate the widest brush and its complete working load.
KM 16545 M · mechanical PTO
Match PTO speed, rotation and shaft arrangement to the carrier.
KM 16545 H · hydraulic
Listed oil-flow requirement: 20 L/min. Confirm the complete circuit.
Specify the complete installation. These are individual sweeper prices, excluding VAT. Confirm the correct ABR mounting bracket, drive connection, controls and accessories in the quote. Photographs show examples and may include options; colour and configuration vary. Product descriptions list garage stands for handling the detached sweeper; confirm the supplied equipment.
Designed to earn its place on your fleet
Put existing machines to work all year.
Work ahead of the tyres
Front mounting gives a direct view of the brush and avoids compacting loose material under the carrier before sweeping it. It also helps you approach kerbs, corners and obstacles.
Move bulky material
The five spiral rows leave space for soil, leaves and other debris to move between the bristles. The large roller supports routine cleaning and suitable remedial work, with collection when material must leave the site.
Follow the surface
Pendulum suspension and independently adjusted gauge wheels help the roller maintain useful contact over uneven ground. Set contact carefully so the bristles work without excessive bending or downforce.
Start with the carrier’s available power
PTO or hydraulic: which route suits your machine?
| Drive | Choose it when | What to check |
|---|---|---|
| Mechanical PTO · M | Your tractor or outfront mower has a suitable front PTO and lifting arrangement. | PTO speed and rotation, shaft geometry, mounting bracket and lift capacity. Hydraulic collector opening or a hydraulic gully brush still needs suitable power and controls. |
| Hydraulic · H | Your carrier has suitable continuous hydraulic implement power, or a purpose-designed hydraulic power installation can be supplied. | Current H models list 20 L/min. The category specification lists 180 bar; confirm pressure, return, flow control, cooling, couplings and additional functions as a complete circuit. |
Horsepower alone does not establish compatibility. Lift geometry, loaded capacity, the mounting interface and the actual PTO or hydraulic supply determine the installation. Avoid assuming every variant of a tractor or mower has the same services.
Connect the carrier, power and attachment
The bracket is part of the working system.
For a tractor, plan the complete chain: tractor → front linkage → PTO or hydraulic power → ABR mounting bracket → KM 45 sweeper. Most attachments do not bolt directly to the linkage.
Lift and interface
Identify the exact front linkage, Quick-Tach system or mower lift arms. Check the total load and its distance ahead of the carrier.
Correct ABR bracket
Select the bracket for that interface. KM 45 product pages list options for Category 0/1, John Deere Quick-Tach and two-point front mowers.
Power the roller
Specify the PTO or hydraulic connection for the chosen drive. Some mower installations use a PTO-powered hydraulic system; have the whole arrangement confirmed.
Operate the options
Plan collector opening, angling and gully-brush controls together. Dust suppression also needs a suitable 12 V electrical connection.
Width, clearance and loaded capacity
Choose against the real working space.
Check the complete assembly through gateways and around obstacles. Angling reduces the width covered across the direction of travel; a gully brush adds extra width. Brackets, collector, water and debris also affect the load.
| Model width | Published overall width | Basic sweeper weight | Main roller | Standard swivel |
|---|---|---|---|---|
| KM 13045 · 130 cm | 140 cm | 133 kg | Ø 45 cm | 26° manual |
| KM 15045 · 150 cm | 160 cm | 140 kg | Ø 45 cm | 26° manual |
| KM 16545 · 165 cm | 175 cm | 146 kg | Ø 45 cm | 26° manual |

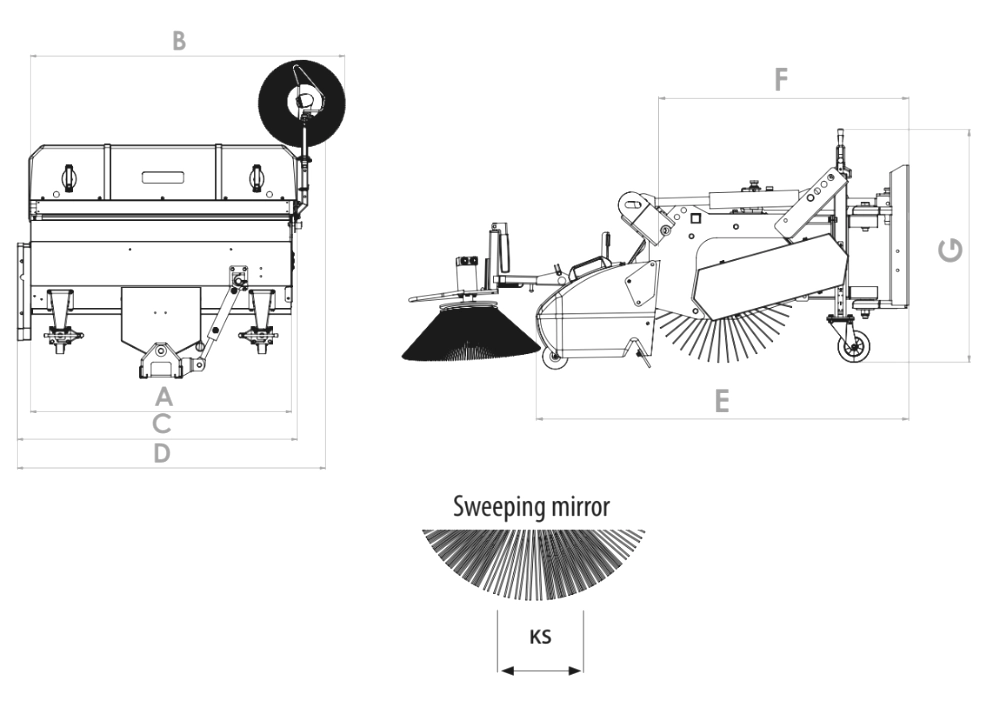

Measure the installed machine
The current product specifications list a basic length of 79 cm and a height of 73 cm. These dimensions do not describe every bracket, collector or carrier installation.
Include the collected debris and water in the lift-capacity check. A 100 litre tank adds roughly 100 kg of water before the tank, pump and mounting hardware.
Basic weights and dimensions are published figures. Confirm the supplied build and complete fitted dimensions before ordering.
Collection and controlled discharge
Remove the debris, or move it where you need it.
Collect loosened material when the aim is to remove it from the site. For windrowing, specify the matching brush guard and an appropriate discharge direction.
Hydraulic-emptying collectors
The current SSB K listings specify steel construction, hydraulic emptying and a running caster wheel. Match the width and confirm the hydraulic service required for opening.
The same series photograph is used for these collector listings. It illustrates the design rather than the exact width.
| Collector | Current price |
|---|---|
| SSB 13045 K · 130 cm → |
£1,450.00Ex VAT · checked 2 Oct 2026.
|
| SSB 15045 K · 150 cm → |
£1,595.00Ex VAT · checked 2 Oct 2026.
|
| SSB 16545 K · 165 cm → |
£1,795.00Ex VAT · checked 2 Oct 2026.
|
Confirm current supply and fitment for the 165 cm collector before ordering.
Brush guards for sweeping without a collector
| Guard | Current price |
|---|---|
| GUSPL 13045 · 130 cm → |
£295.00Ex VAT · checked 2 Oct 2026.
|
| GUSPL 15045 · 150 cm → |
£340.00Ex VAT · checked 2 Oct 2026.
|
| GUSPL 16545 · 165 cm → |
£380.00Ex VAT · checked 2 Oct 2026.
|
Keep kerbs and edges in the cleaning pass
Two gully-brush drive options.
A gully brush moves loose material from kerb edges into the main brush’s path. Established weeds and heavily compacted deposits may need a weed brush first.
ASM 4045 KM · mechanical gully brush
40 cm side brush with mechanical belt drive, height/angle adjustment, storage position and collision protection. Confirm the mechanical connection to your sweeper.
ASH 4045 KM · hydraulic gully brush
40 cm side brush with adjustable speed and height, storage position and collision protection. On an H sweeper it uses the built-in sweeper hydraulics; on an M installation it requires a suitable hydraulic service and return.
Dust, angling and visibility
Add the functions your site actually needs.
Use the right brush contact, travel speed and brush speed for the material. Water sprays can help bind dust during suitable sweeping work; they add electrical requirements and weight.
WAS 100 AUF · 100 litre kit
Water tank mounted on the sweeper, with a 12 V electric pump, spray bar and nozzles. Choose it where the carrier can carry the additional front load. Requires a vehicle 12 V service plug.
WAS 200 KAT 1 · 200 litre kit
Rear three-point-mounted water tank with a 12 V electric pump, spray bar and nozzles. Check rear linkage availability, the full water load and overall balance. Requires a vehicle 12 V service plug.
| Control or accessory | Current price |
|---|---|
|
EMV · cab-mounted solenoid control →
Listed for angling and sweeper drive from one double-acting service with detent; confirm the complete circuit. |
£650.00Ex VAT · checked 2 Oct 2026.
|
|
HSZ-180 · hydraulic angling →
Requires a suitable double-acting hydraulic service. |
£650.00Ex VAT · checked 2 Oct 2026.
|
|
MP-MR-ST · hydraulic brush speed control →
For a suitable hydraulic drive installation. |
£410.00Ex VAT · checked 2 Oct 2026.
|
|
Heavy-duty height-adjustment wheels →
Confirm dimensions and suitability for your machine. |
£350.00Ex VAT · checked 2 Oct 2026.
|
| BGL-KM 45 · red/white marker lights → | Ask for a price |
| WA-FLAG · attachment-width warning flags → | Ask for a price |
Set the brush to work effectively
Good contact matters more than downforce.
Adjust the gauge wheels
Set the roller level and use enough bristle contact to clean effectively. Excessive bending reduces performance and increases wear. Follow the operating instructions for the surface and brush fitted.
Match speed to the job
Travel slowly enough for the roller to lift the material. Use suitable brush speed for heavy debris, lighter material or snow; the correct drive configuration determines how speed can be controlled.
Collect the growing layer
Removing soil, leaves and organic debris helps limit the damp layer that supports weeds and moss. Keep drainage edges clear and use a suitable weed brush for established growth.
For artificial turf, distinguish routine grooming from powered contamination removal and infill work. Water-based hockey, sand-filled and rubber-crumb surfaces need surface-specific brush and collection settings.

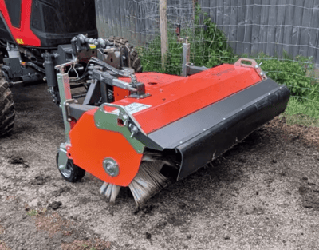

Real carrier installations
See the mounting and working arrangements.
See how KM 45 sweepers have been installed on different carriers. These are examples of specified combinations; confirm your exact model, build and available services.
Video demonstrations
Watch the sweepers at work.
Kersten KM 45 sweeper range
Watch on YouTube →Kersten sweeper for Kubota F Series
Watch on YouTube →Kersten KM 45 sweeper at work
Watch on YouTube →Kersten sweeper for Grillo 13.9 mower
Watch on YouTube →Practical examples from the Kersten site
Find a setup close to your own carrier.
Kubota F Series
Use existing front lift arms and PTO with the correct ABR bracket. The article explains why a loaded collector and its hydraulic opening need separate attention.
Read the case study →
John Deere 1550
A 150 cm PTO sweeper with a brush guard. Useful guidance on wheel setting, brush contact and swapping the mower deck for a sweeper.
Read the case study →
Kioti CK35
A front linkage and hydraulic sweeping installation. See the choice between hydraulic power and adding a front PTO.
Read the case study →Grillo FD / FM Series
An offset PTO drives a hydraulic pump for a self-contained installation with collection and edge cleaning. Confirm the exact build rather than relying on the M/H label alone.
Read the case study →
Kubota G23 / G26 and G231 / G261
A purpose-designed linkage and hydraulic power unit address the mower’s limited native hydraulic supply. The case uses a 130 cm hydraulic sweeper.
Read the case study →Kubota RTV
See how a dedicated power and mounting arrangement enables sweeping with a utility vehicle. Standard vehicle hydraulics should not be assumed sufficient.
Read the case study →Parts and operating information
Maintain the cleaning performance.
1892c3.jpg)
Keep the roller matched to the machine
Order against the part number, width, diameter, hub and machine serial number. The roller photograph is representative; each linked listing identifies its own size.
| Replacement roller | Current price |
|---|---|
| 130 510 045 · 130 cm / Ø 45 cm → |
£446.25Ex VAT · checked 2 Oct 2026.
|
| 150 510 045 · 150 cm / Ø 45 cm → |
£500.00Ex VAT · checked 2 Oct 2026.
|
| 160 510 045 · listed for KM 16545 / 1650 mm → |
£577.50Ex VAT · checked 2 Oct 2026.
|
The linked manual and parts-list titles cover KM11545, KM13045 and KM15045. Ask for the correct document for your machine version, especially the 165 cm model.
Other mounting routes
Compare the carrier and the cleaning task.
Before you specify the installation
Your KM 45 questions answered.
Does the KM 45 attach directly to my tractor linkage?
Normally a suitable ABR bracket connects the sweeper to the carrier’s linkage or lift arms. Match the exact interface and drive arrangement; a front linkage alone is not the complete installation.
Does a PTO sweeper need hydraulics?
The main roller uses the specified PTO drive. Hydraulic collector opening, hydraulic angling or an ASH gully brush may need additional hydraulic services. Some mower installations use a PTO-powered hydraulic system; confirm the supplied arrangement.
What hydraulic supply do the H models need?
Current H product pages list 20 L/min, and the series specification lists 180 bar. Confirm continuous-duty capacity, pressure, return, couplings, cooling and accessory controls for the complete installation.
Is a collector included in the sweeper price?
The prices shown are separate sweeper and accessory listings. Specify the matching collector, hydraulic opening controls and mounting bracket in the quote. A legacy package offer may have different contents.
Is a 165 cm collector available?
The SSB 16545 K is listed with hydraulic emptying and a current price. Confirm availability and suitability for your sweeper before ordering.
Can I use the mechanical or hydraulic gully brush?
The ASM 4045 KM uses mechanical belt drive. The ASH 4045 KM uses hydraulic drive; its listing describes built-in sweeper hydraulics on H models and a separate hydraulic service with return on M installations. Confirm the correct combination.
Will more brush pressure improve cleaning?
Excessive contact bends the bristles and can reduce cleaning performance while increasing wear. Set the independent gauge wheels and follow the manual for the fitted roller and surface.
Can it maintain artificial turf or clear snow?
Suitable powered sweeping can remove contamination and loosen or redistribute appropriate infill. Turf needs surface-specific settings. For snow, choose the brush and drive setup for the conditions; deeper or heavier snow may call for a plough or snow blower.
Specify the whole working setup
Tell us about your carrier and your site.
Send the machine make and model, linkage or lift-arm interface, PTO or hydraulic services, surface and access width. We’ll help match the sweeper, ABR bracket and options to the job.
