KM 13045 M - Front Mounted Sweeper, 130cm Mechanical Drive - Ø 45cm

KM 13045 M - Front Mounted Sweeper, 130cm Mechanical Drive - Ø 45cm

Kersten KM 45 Sweepers

Kersten Wholegoods Item Code: KM 13045 M-ABR 45

£ 3,595.00 GBP (£ 3,595.00 / Piece)

The KM 45 Series is a lightweight and compact sweeper for front mounting to front mowers, compact tractors with front linkage, and high spec utility vehicles 12 - 40hp.  Available with front brush guard, collector box, dust suppression and gully brush.

Kersten Front Mounted Sweeper for Tractor and Mower 115cm Mechanical Drive PTO - Ø 45cm - KM 13045 M<span id="jodit_selection_marker_1587055298868_4733656474586454" data-jodit_selection_marker="start" style="line-height: 0; display: none;"></span>
Diameter
Width
Drive
Series

45cm

130cm

PTO

KM45

Product Overview

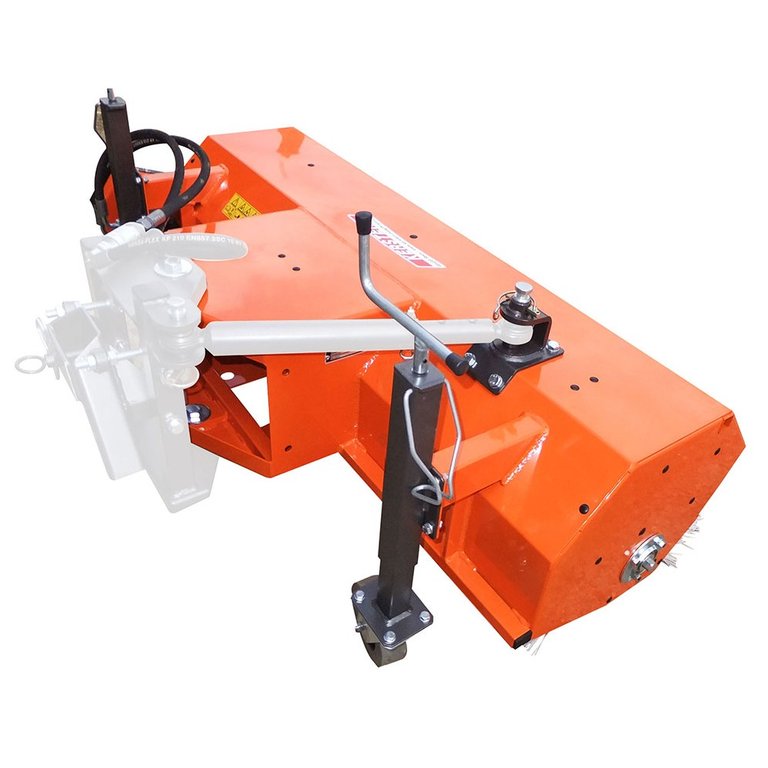

The KM 45 Series is a versatile sweeper with big performance in a light weight, strong compact chassis. Optional accessories include front collector box, gulley brushes and front brush guard. When choosing the correct sweeper for your application you should consider the width of the power unit, oil flow or PTO horsepower available to power the sweeper and capacity to lift the sweeper, with a full collector if required.

It will fit a wide variety of applications, including; John Deere Quick-Tach for X-series and 1026, Kubota B1220 , Kubota G23 - G26 with Kersten front Linkage, Cat 1 linkage A-frames for front linkages, Cat 1 front 3 point linkage systems, Outfront Mowers with 2 point lift arms, Ransomes HR300, Kubota RTV.

Our Sweepers are fitted with a large diameter 5 row stiff spiral brush for moving large debris and dirt. The pendulum suspension system protects the sweeper and carrier from damage over rough ground. Sweeping height is adjusted by heavy duty gauge wheels — each wheel is adjusted individually for precise positioning of the brush. The sweeper is geared for low speed, high torque applications, such as removing soil in block paving or tarmac. However, we can change this on request, to suit other applications where lighter material must be moved further from the brush, such as snow.

  • Drive from Tractor front PTO
  • Includes garage stands
  • Folded steel frame construction
  • Brush diameter 45cm
  • 2 support wheels 135x40cm with individual lever height adjustment
  • Mechanical angling left and right
  • Supplied with 2 section, 5 row Combi brush
  • Mounting Bracket - ABR45 is Required

    2021-05-21_1.md.jpg 2021-05-21-6.md.jpg 2021-05-21-4.md.jpg IMG-20220331-WA0005.md.jpg KM45-on-Iseki-SF370-27daa67aed6d970684.md.jpg Iseki-SF-with-sweeper-Banner.md.jpg KM-13045-H-sweeper-on-John-Deere-1026-compact-tractor-5.md.jpg KM-13045-H-sweeper-on-John-Deere-1026-compact-tractor-1.md.jpg john-deere-1435-FKM-DSCF0492-6.md.jpg 20190917_140154.md.jpg KM-45-M-PTO-on-McCormick-reversible-tractor-14.md.jpg KM-45-Sweeper-on-Karcher-Mic-34---1.md.png

    KM45 Case Studies

    Case Study: Front Sweeper for Kubota ST 341 - Cover Image
    Tractor Attachments
    Case Study: Front Sweeper for Kubota ST 341

    One solution for mounting a sweeper to your Kubota ST......

    Case Study; Front linkage and sweeper for Kioti CK35 - Cover Image
    Tractor Attachments
    Case Study; Front linkage and sweeper for Kioti CK35

    Kersten specialise in complete front mounted solutions for your tractor. Here we fitte...

    Case Study: Hydraulic sweeper for Kubota RTV - Cover Image
    Tractor Attachments
    Case Study: Hydraulic sweeper for Kubota RTV

    The RTV is a very capable machine.... Now it can be even more versatile.

    Case Study: Sweeper for Grillo FD 13.09 - Cover Image
    Tractor Attachments
    Case Study: Sweeper for Grillo FD 13.09

    An NHS Site in the North East of England tasked one of our dealers with finding a sweep...

    Case Study - Front sweeper for John Deere 1026 - Hydraulic drive from tractor - Cover Image
    Tractor Attachments
    Case Study - Front sweeper for John Deere 1026 - Hydraulic drive from tractor

    One solution for mounting a sweeper to your JD 1026......

    Case Study: Front Sweeper for John Deere 3-Series - Cover Image
    Tractor Attachments
    Case Study: Front Sweeper for John Deere 3-Series

    One solution for mounting a sweeper to your John Deere 3 Series Tractor......

    Product Applications

    Sweeping on Hard Surfaces

    When organic debris covers a hard surface it looks unsightly, but it also blocks drainage channels, which leads to surface water. Over time the material will decompose producing soil. Opportunistic weeds can use this soil as a platform to grow on the surface, which can cause damage over time. So it is really important to keep the surface swept and to remove the material.

    More on Hard Surface Maintenance

    Product Applications

    Sweeping on Artificial Surfaces

    In addition to the normal problems we face maintaining hard surfaces; artificial surfaces have infill, which gets compacted and also migrates around the surface. This infill can be de-compacted with a sweeper allowing the surface to drain properly. The sweeper will also even out the distribution of infill and stand up the grass, making the surface much nicer to use.

    More on Artificial Surface Maintenance

    “"We could be spending up to 20 hours a week removing moss and dirt from the pedestrian areas," explained John, "and it seemed nothing we did made much difference." "I was so impressed, I needed the machine there and then."”
    John from Tyne Valley Garden Centre

    Attachments

    Hydraulic Angling kit- HSZ 180 UB

    Front brush guard - 130cm to control debris discharge for sweepers without collector.

    Collector 130cm For KM 45 Series Sweepers

    Side Gulley Brush 40cm for KM 45 series sweepers. Mechanical drive

    Side Gulley Brush 40cm for KM 45 series sweepers. Hydraulic drive

    Electric remote control solenoid valves - Cab mounted

    Water Dust Suppression Kit - 100litre for KM 45/50 Series Sweepers

    Water Dust Suppression Kit - 200litre for KM45 /KM 50 Series Sweeper

    Consumables

    Replacement brush 130cm, 45cm Ø 130 510 045

    Replacement gulley brush 40cm- 105 425 400

    Brackets

    Bracket for John Deere quick-tach front Linkage on X series and 1024

    Bracket for front linkage A frame on Kubota G23, G26

    Bracket for CAT 1 front linkage A frames

    Bracket for tractors with CAT 1 front linkages A frames (without triangle)

    ABR FM Bracket for Front Mowers (2 point)

    Design Features

    Spiral Combi Brush

    Manual Adjustment

    Optional Dust Suppression

    Optional Collector Box

    Optional Debris Guard

    Optional Gully Brush

    Optional Garage Stand
