Attachments for John Deere tractors & ride-on mowers
Make more of
your John Deere.
Sweep paths and car parks, reclaim overgrown edges, collect leaves and prepare for winter. Match the attachment, mounting and drive to your exact John Deere.
Start with your carrier
Which John Deere do you have?
Start with the carrier family. Compact tractors, outfront mowers and X-series ride-on mowers use different mounting and power arrangements. The original tractor images below help you find the right route.
X700
Quick-Tach, PTO and hydraulic routes need model-specific checking.
Find attachments →
X900
Explore the X900 route with a matched front connection and drive.
Find attachments →
1 Series
See front hydraulic sweeping and the 1026 mower-deck trade-off.
Find attachments →
2 Series
Rear PTO sweeping and the 2026R vacuum-collection example.
Find attachments →
3 Series
Compare front sweeping and path-edge reclamation routes.
Find attachments →
Outfront mowers
Use existing lift arms and front PTO with a matched FM bracket.
Find attachments →
X300 / X500
See the FKDR weedbrush system fitted to an X590.
See the installation →Another model?
Send the full model and mounting photos. We’ll help establish the right fitting route.
Ask about your John DeereChoose the job, then confirm the fit
Attachments that extend your working year.
Use these individual products as starting points for a John Deere quotation. The installation notes explain which carrier routes to investigate and what else the working system needs.
Sweepers for tractors and outfront mowers
Choose the mounting position, brush width and drive around the carrier and other attachments you want to retain.
Rear mechanical PTO sweeping
HKM 15040 M
Use the rear linkage and PTO to clean access roads and hard surfaces without adding a front linkage.
Choose it when: A rear-mounted installation suits your routes and carrier.
- Working width
- 150 cm
- Brush diameter
- 40 cm
- Drive
- 540 rpm mechanical PTO
- Mounting
- Rear Category I frame
2038R case-study route. Specify the collector, optional hydraulic opening and gully brush; check the full operating weight.
View attachment →
Front hydraulic sweeping
KM 13045 H
See the brush ahead and remove material before the tyres pass over it.
Choose it when: You need the narrower 1.3 m front brush and a verified hydraulic supply.
- Working width
- 130 cm
- Brush diameter
- 45 cm
- Required oil flow
- 20 l/min
- Mounting
- Matched ABR 45 bracket
1026 example uses a John Deere Quick-Tach-specific bracket. Its hydraulic route retains the mid mower deck; check your exact configuration.
View attachment →
Front hydraulic sweeping
KM 15045 H
A wider front brush for larger routes, with collection and dust control available when required.
Choose it when: You need 1.5 m coverage and have the hydraulic and lifting capacity for the complete tool.
- Working width
- 150 cm
- Brush diameter
- 45 cm
- Required oil flow
- 20 l/min
- Mounting
- Matched ABR 45 bracket
Documented 3720 / 3-Series example. Specify the collector, water kit and angling controls separately.
View attachment →
Outfront mower PTO sweeping
KM 15045 M
Drive the brush from a suitable front PTO and keep the tool close to the carrier.
Choose it when: You have an approved outfront-mower or tractor PTO arrangement.
- Working width
- 150 cm
- Brush diameter
- 45 cm
- Drive
- Mechanical PTO
- Mounting
- Matched ABR 45 bracket
1400 / 1500 outfront-mower installation route uses an FM bracket. Collector opening needs suitable hydraulic provision.
View attachment →
Ride-on mower sweeping
KM 10037 H-FKDR
A compact front sweeper for a model-specific FKDR linkage and hydraulic package.
Choose it when: You maintain narrower routes with an approved ride-on mower setup.
- Working width
- 100 cm
- Brush diameter
- 37 cm
- Drive
- Hydraulic
- Mounting
- FKDR-HYDR kit
Check the exact X300 / X500 kit. FKDR is a different attachment system from John Deere Quick-Tach.
View attachment →Weed management for kerbs and path edges
Match the brush action, material destination and carrier power to the job.

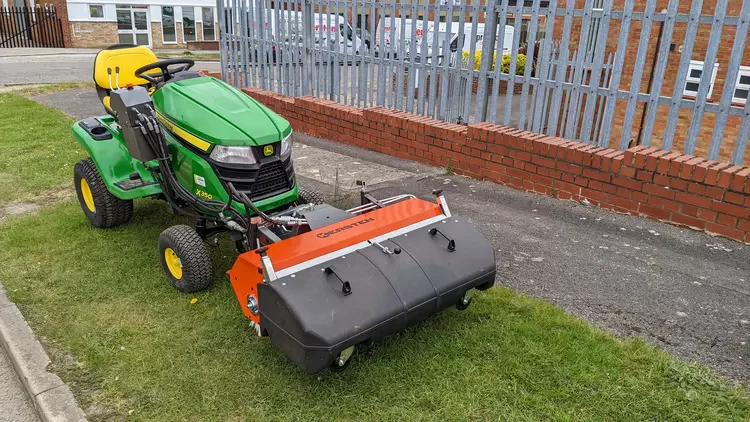

Ride-on mower weedbrushing
WKB-H-K-FKDR
Remove moss and weeds from suitable hard surfaces using a compact hydraulic brush.
Choose it when: You work along kerbs and path edges with a suitably equipped ride-on mower.
- Brush diameter
- 40 cm
- Tool plate
- 8 replaceable brushes
- Drive
- Hydraulic
- Mounting
- FKDR/HYDR kit
Documented X590 installation route. Match brush tools to the surface and specify the correct linkage and hydraulic pack.
View attachment →
Vertical path-edge reclamation
UB EASY PAK VB
The vertical brush can direct arisings onto a suitable verge instead of leaving a windrow on the path.
Choose it when: Your carrier and hydraulic system have been approved, and verge-side material redistribution suits the site.
- Brush diameter
- 84 cm
- Listed oil flow
- 25 l/min minimum
- Current carrier listing
- Over 45 hp
- Mounting
- Matched ABR-UB frame
The historical 3039R installation used a separate rear-PTO hydraulic pack. The current listing specifies larger carriers; obtain an engineering check for your exact tractor.
View attachment →Collect larger volumes of leaves and clippings
Active suction moves material into a separate collecting system rather than a small front box.
Active suction and collection
Matev MRM-120 AS
A rotor brush loosens material and an active fan sends it through a hose into a selected collection container.
Choose it when: Leaf or grass volumes make a larger collection system more useful than a small sweeper box.
- Basic working width
- 120 cm
- Turbine diameter
- 515 mm
- Roller brush drive
- Hydraulic
- Collection
- Matched trailer / container
2026R case-study route. Specify mounting, fan drive, brush hydraulics, hose and collector together; the front attachment alone is not a complete collecting system.
View attachment →Leaf blowers with two power arrangements
Plan where leaves will go, then choose the drive and mounting system.
Mechanical PTO leaf blower
LBV 6900 M-ABR
Move leaves towards an agreed collection point without repeatedly stopping to empty a box.
Choose it when: You have an approved mechanical PTO and mounting arrangement.
- Air output
- 140 m³/min theoretical
- Listed reach
- Approx. 12 m
- Drive
- Mechanical PTO
- Mounting
- Matched ABR-LBV bracket
Confirm the PTO speed, rotation, gearing and carrier-specific bracket. Blowing relocates debris; it does not collect it.
View attachment →
Engine-powered ride-on blower
LBV-HO-FKDR
An independent Honda engine provides airflow through a front-mounted blower.
Choose it when: A self-powered blower suits your approved FKDR ride-on system.
- Engine
- Honda · 11.7 hp
- Air output
- 90 m³/min
- Listed reach
- Approx. 8 m
- Mounting
- FKDR front linkage
The engine drives the blower; the mower still needs the matched linkage and lift arrangement. Confirm the exact X-series fitting.
View attachment →Winter clearance for FKDR ride-on systems
Choose the blade around access width and the space available for displaced snow.
Ride-on mower snow clearance
SCHN 12545 FK-FKDR
Push snow towards a planned storage area with a compact, spring-protected blade.
Choose it when: You have an approved FKDR system and suitable snow-storage space.
- Blade width
- 125 cm
- Blade height
- 45 cm
- Protection
- Spring-back blade
- Adjustment
- Hydraulic lift and angling
Check the exact X300 / X500 kit. Quick-Tach and tractor-linkage installations need a different matched blade and mounting arrangement.
View attachment →Renovate gravel paths and access tracks
Match tools and working depth to the surface; grading is a separate material-shaping task.
Gravel-path renovation
WE 110 M-DP
Counter-rotating tools loosen compacted gravel and disturb weeds at a controlled working depth.
Choose it when: You need to renovate an unsealed surface rather than sweep it.
- Working width
- 110 cm
- Drive
- Mechanical PTO
- Mounting
- Rear CAT 1 / CAT 1N
- Tool action
- Counter-rotating
Confirm linkage, operating PTO speed, shaft and tool configuration. Set depth for the surface rather than disturbing the underlying base.
View attachment →Quote the complete working system. These are individual listing prices, not complete John Deere installations. Linkage, PTO conversion, hydraulic pack, bracket, controller, collector, hose and working accessories may be additional. Product photographs do not establish fitment to every carrier in a family.
Get the connection right
Carrying the tool and powering it are different jobs.
Compact tractors and Quick-Tach
The front connection carries and lifts the tool. A matching PTO or hydraulic supply powers it. Most Kersten front attachments also need an attachment-specific ABR bracket; the linkage alone is not the complete installation.
Outfront mower lift arms
The documented 1400 / 1500 mower installations use existing lift arms and front PTO with an FM bracket. Confirm the shaft interface, clearance, collector weight and any extra hydraulic controls.
FKDR ride-on systems
FKDR supplies a model-specific front linkage and hydraulic package for suitable smaller ride-on mowers. It is distinct from Quick-Tach. Choose the exact mower kit before selecting the tool.
Use the right starting point
What changes between the John Deere families?
| Your carrier | Documented route | Check before ordering |
|---|---|---|
| 1 Series | The 1026 example uses a KM 13045 H and a Quick-Tach-specific ABR bracket. | Hydraulic drive retains the mid deck in that installation. Front PTO use requires a different deck arrangement. |
| 2 Series | The 2038R example uses a rear HKM; the 2026R example uses active vacuum collection. | Rear-PTO availability, collection weight, front drive and mid-deck requirements. |
| 3 Series | The 3720 uses a front hydraulic KM45; the 3039R vertical-brush example uses a separate PTO hydraulic pack. | Usable continuous hydraulic flow and cooling. Check current attachment requirements against the exact tractor. |
| X700 / X900 | Series pages offer front Quick-Tach and matched power routes. | Exact model and generation, kit, PTO interface and any rear-linkage provision; do not assume the smaller FKDR kit applies. |
| X300 / X500 | The X590 weedbrush example uses an FKDR linkage and hydraulic pack. | Correct model-specific FKDR kit and surface-appropriate brush tools. |
| 1400 / 1500 outfront mowers | Existing lift arms and front PTO drive a KM45 through an FM bracket. | Shaft interface, bracket version, collector weight and hydraulic opening requirements. |
Send the model, not just the badge. Include the year or serial number, photos of mounting points, PTO and hydraulic couplings, plus your task and access width.
Match the method to the surface
What does your site need?
Routine sweeping
Remove loose soil, leaves and detritus before they accumulate along edges and drainage routes. Add collection when the material needs to leave the surface.
Path-edge reclamation
Use active weedbrushing for established vegetation and overburden, then sweep up the loosened material. Choose brush tools and settings around the surface.
Artificial-surface care
Routine grooming and infill redistribution, active agitation and contamination removal are different tasks. Choose the brush and collection method for the surface and its infill.
Gravel renovation
Loosen the surface layer and disturb weeds with the right renovation tools. Set depth to avoid disturbing the base; grading is a separate material-shaping job.
Autumn leaves
Blowing is useful where leaves can be directed to an agreed collection point. Choose sweeping and collection when material needs to be picked up in the same pass.
Winter access
A plough pushes snow; a snow blower projects it. Plan storage or discharge space, then consider spreading equipment for the separate job of ice management.
See the working systems
John Deere installations worth comparing.
These examples show how the carrier, attachment and accessories work together. Confirm the same arrangement for your model before ordering.
1026 · front hydraulic sweeping
Keep the mower-deck trade-off clear
Compare hydraulic drive, front PTO and a rear-PTO hydraulic pack around mowing and sweeping duties.
Read the case study →
2038R · rear mechanical PTO
Start with the rear linkage
See the rear sweeper, collector, hydraulic opening and gully brush specified for the 2-Series installation.
Read the case study →
1400 / 1500 · outfront mower
Work beyond the mowing season
The front lift arms and PTO carry and drive a mechanical KM45 through a matched mounting bracket.
Read the case study →
X590 · FKDR weedbrushing
Reclaim kerb and path edges
See the dedicated linkage and hydraulic pack used to add active weedbrushing to a ride-on mower.
Read the case study →
3039R · vertical path edging
Consider where the arisings should go
The historical installation directs material onto suitable verges and uses a separate rear-PTO hydraulic supply. Confirm current fitment requirements.
Read the case study →
2026R · active vacuum collection
Collect into a separate container
Compare the Matev active suction attachment with a matched trailer or collecting system.
Read the case study →Also see the 3720 / 3-Series front-sweeper installation →. For the active suction system, read Matev’s technical information →.
Before ordering
Your John Deere attachment questions answered.
Will an attachment fit every John Deere in the same series?
No. Confirm the full model, generation or serial number, mounting points, drive and controls. A case study demonstrates a specific installation; it does not approve every carrier with the same badge.
Can I keep the mid mower deck fitted?
The 1026 case study describes hydraulic sweeping with the mid deck retained. Its front-PTO option uses the mid-PTO drive and requires the mower deck to be removed. A rear-PTO hydraulic pack offers another route. Verify the exact tractor and attachments you want to use together.
Does Quick-Tach mean the attachment bolts straight on?
Not usually. The connection provides the carrier interface and lift functions, while a matched ABR bracket connects the Kersten attachment. A powered tool also needs the correct mechanical PTO or hydraulic supply.
Is FKDR the same as John Deere Quick-Tach?
No. FKDR is a model-specific Kersten linkage and hydraulic system for suitable ride-on mowers, including the X590 case-study route. Quick-Tach is a different carrier interface. Match the bracket and power arrangement to the actual system on your mower or tractor.
How do outfront-mower attachments connect?
The documented 1400 / 1500 series installations use existing lift arms and front PTO with a matched FM bracket. Check the shaft connection, clearance and full operating weight. Collector opening may need additional hydraulic equipment.
Can the vertical brush be ordered for any 3-Series tractor?
No. The older 3039R installation used a separate rear-PTO hydraulic pack. The current UB EASY PAK VB listing specifies carriers over 45 hp and at least 25 l/min. Obtain an engineering check for your exact tractor, mounting and power package before ordering.
What else does the Matev vacuum attachment need?
The complete system needs the correct mounting and drive, suitable brush hydraulics, hoses and an approved collection container or trailer. Check the full power, airflow, load and installation requirements; the price shown is for the individual attachment listing.
Are these prices for complete installation kits?
No. They are individual listing prices excluding VAT. Mounting, power conversion, hydraulic supply, brackets, controllers and accessories may be extra. Live prices refresh on kerstenuk.com; checked fallback values remain if the update fails.
What should I send for a quotation?
Send the model, year or serial number, photographs of the front and rear connections, PTO and hydraulic couplings, plus the task, surface and access width. Tell us which mid-deck or rear attachments need to remain available.
Specify a complete working system
What else could your John Deere do?
Tell us the model, maintenance task and site conditions. We’ll help match the attachment, mounting bracket, drive and controls to your machine.
