Kersten Weedbrush 40cm for Ride-on mower- WKB-H-K-FKDR

Kersten Weedbrush 40cm for Ride-on mower- WKB-H-K-FKDR

Tractor Mounted WKB 40 Weed Brush

Kersten Wholegoods Item Code: WKB-H-K-FKDR

£ 2,795.00 GBP (£ 2,795.00 / Unit)
  1. 40cm diameter hydraulic weed brush attachment for ride-on mower.
  2. Equipped with 8 replaceable Hausa or Versa brushes, easily changeable for optimal performance.
  3. Height Adjustment Wheels allows quick and easy height adjustment of the weed brush for varied surface conditions.
  4. Adjustable Brush height and Angling - Left, Right, Forwards and Backwards, optimises positioning for efficient surface cleaning, even on uneven terrain.
  5. Integrated Splash Guard with adjustable left, right and height adjustments provides all-round protection from flying debris, ensuring safety during operation.
  6. Required FKDR/HYDR Linkage Kit to operate this weedbrush
  7. Optional brush weight enhancing performance on stubborn weeds by maintaining optimal ground contact.

Product Overview

40cm Hydraulic Weed Brush Attachment for Ride-on Mower

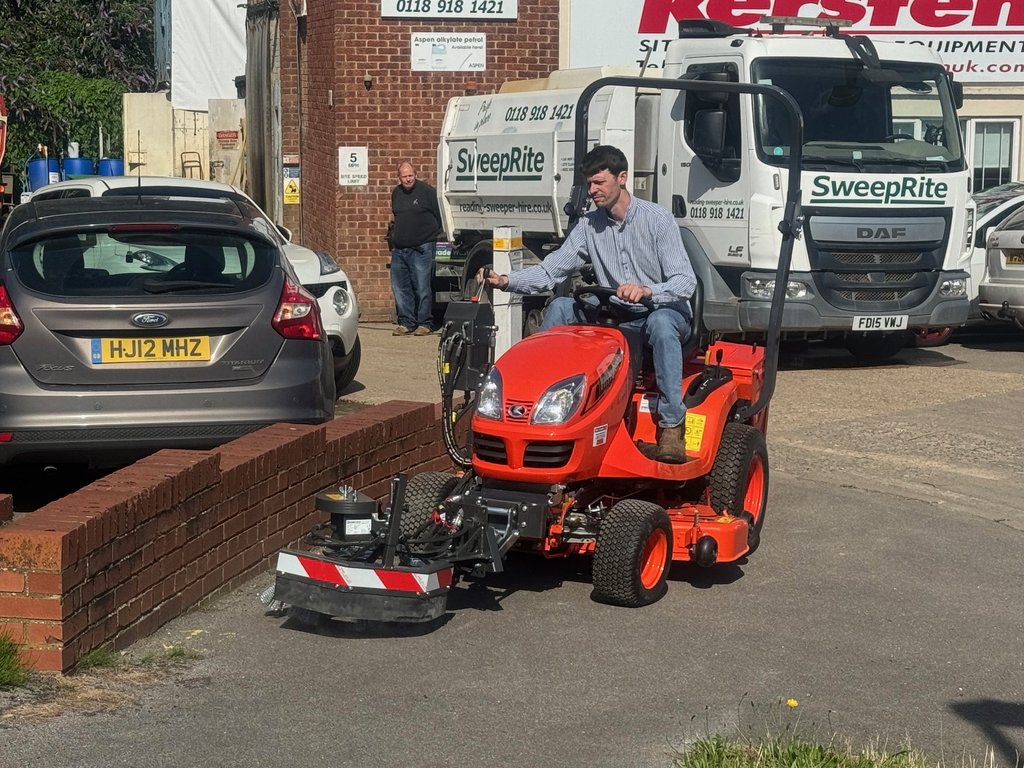

The WKB-H is a powerful and efficient weed brush attachment designed for use with the Ride-on mower models including:

  • Kubota GR1600, GR1600-II, GR2100, GR2120, GR2120 S
  • John Deere X300, X500
  • Iseki SXG 216

With its compact yet robust design, it is ideal for fast and effective weed and moss removal on hard surfaces such as pavements, paths, and urban spaces. The WKB-H has a working width of 400mm, making it suitable for larger areas like squares, walking routes, and bicycle paths.

The attachment features a 40cm diameter brush with 8 sections that efficiently remove ingrained dirt, moss, and weeds using versa brushes. It is powered hydraulically, with hydraulics supplied through the FKDR/HYD linkage kit, which connects to the mower’s engine via a belt. The kit includes an integrated control panel for operating the lift/lower mechanism, angling, and engaging power to the brush. The control panel has two levers: one for angling left and right, and another for lifting and lowering the linkage with a float position that delivers power to the brush.

To ensure precise control and optimal performance, the attachment is equipped with a heavy-duty gauge wheel for height adjustment. The wheel is adjusted by a spindle for accurate brush positioning. Additionally, the weight on the front of the brush increases the contact pressure for aggressive clearing, which can be relieved using the castor wheel.

This robust attachment is suitable for fitting to a wide range of ride-on mowers and is built using CNC folded and welded, heavy-gauge steel for maximum durability.

Brush Diameter
Brush Type
Working Width
Weight

40 cm

8-Tool Plate (Hausa or Versa)

77 cm

49kg

Technical Specifications

Machine Specification WKB-H Details Coming soon - WKBH II
Brush Diameter 40 cm 50 cm
Working Width 77 cm 56 cm
Brush Type 8-Tool Plate (Hausa or Versa) 6-Tool Plate (Hausa or Versa)
Rotation Direction Left, Right
Height Adjustment Height-adjustable wheels for precision surface contact
Splash Guard Adjustable left, right, and height settings for operator protection
Quick Change System FKDR Linkage System
Included Accessories Additional brush weight for improved ground pressure
Optional Accessories - Additional Brush Weight 12 kg


K820 Pro 40cm Weed Brush

Features

  • Hydraulically Driven Brush Plate: Ensures powerful and consistent weed removal performance.
  • Adjustable Brush Angling: Allows flexible positioning left, right, forwards, and backwards for optimal surface cleaning.
  • Height-Adjustable Wheels: Enables precise control over brush contact for effective cleaning on uneven terrain.
  • Integrated Splash Guard: Fully adjustable for enhanced debris containment and operator safety.
  • Kersten Quick Change System: FKDR Linkages allows for rapid switching between attachments.
  • Optional Brush Weight: Provides additional ground pressure for improved weed removal efficiency.

Design Features

Versa Brushes

Ergonomic Controls

Manual Adjustment

Debris Guard

Bracket for FKDR

Weight

“"We could be spending up to 20 hours a week removing moss and dirt from the pedestrian areas," explained John, "and it seemed nothing we did made much difference." "I was so impressed, I needed the machine there and then."”
John from Tyne Valley Garden Centre

Product Applications

Moss and Weeds on hard surfaces

When Moss and Weeds become established on hard surfaces, such as block paving; tarmac; or concrete - they are difficult to remove with a sweeper. For this application we have made the Weedbrush. Kersten weedbrushes have been designed to quickly remove weeds and moss.

More on Kerbs and Edging

Product Applications

Edging Footpaths and Borders

It is important that paths are kept at the correct width to allow proper access for pedestrians, pushchairs and wheelchair users. The weedbrush can remove the overburden and restore the width of the path - the more frequently this is done, the easier the task will be.

More on Kerbs and Edging

Articles about Weedbrush

Moss Brushes, Weed Brushes & Weed Rippers - What's the difference? - Cover Image
Sweeping and Integrated Weed Control
Moss Brushes, Weed Brushes & Weed Rippers - What's the difference?

There are several different terms commonly used to describe weed brushes. In this arti...

Case Study: Weed Brush, Sweeper, Blowers and more attachments for Kubota GR2120 Ride-on Mower
Tractor Attachments
Case Study: Weed Brush, Sweeper, Blowers and more attachments for Kubota GR2120 Ride-on Mower

The Kubota GR2120 Ride-On Mower is a popular choice among holiday parks and smaller gro...

Case Study: Weedbrush for John Deere X series Ride on Mower - Cover Image
Tractor Attachments
Case Study: Weedbrush for John Deere X series Ride on Mower

The FKDR allows yout Ride on Mower to carry out weed brushing tasks.
