Matev Active Suctions 120cm suction nozzle - MRM-120 AS

Matev Active Suctions 120cm suction nozzle - MRM-120 AS

Vacuum Nozzle series

Matev Wholegoods Item Code: 1319179

£ 7,695.00 GBP (£ 7,695.00 / Unit)
  1. 120 cm Active Suction Sweeper Attachment, feature a 515 mm diameter robust turbine directly on top of the nozzle, providing active suction speed of 2650 U/min.
  2. Designed for sweeping and debris removal in parks, streets, and public areas – ideal for collecting leaves, grass clippings, and waste from large surfaces
  3. Hydraulic rotor brush delivers powerful sweeping action, lifting even wet or compacted debris with ease
  4. Stable steel construction with reinforced running gear ensures durability and low-maintenance operation in tough conditions
  5. Tool-free height-adjustable wheels and 2D pendulum levelling allow consistent ground following for optimal suction performance
  6. Height-adjustable air gap adapts airflow to suit different materials – from light dust to heavy leaf buildup – increasing efficiency and reducing energy use
  7. Optional side brooms (500 mm diameter) extend working width up to 2.1 metres and improve edge cleaning along kerbs and obstacles
  8. Optional pressure roller prevents material from piling up in front of the nozzle, improving flow and pickup in heavy leaf conditions


Compatible with tractor with minimum 11 L/min hydraulic flow with, compatible with Cat. 0 / Cat. 1 mountings

Requires Hose and brackets(See section below)

MRM-120 AS Active Suction Sweeper – 120 cm

The matev MRM-120 AS is a multifunctional suction sweeper designed to handle demanding material removal tasks across varied surfaces. Its active suction system, powered by a turbine mounted directly on the nozzle, enables efficient collection of leaves, grass cuttings, debris, and even wet or compacted sweepings. The integrated rotor brush is hydraulically driven and built to dislodge material with minimal effort, even under tough surface conditions.

The system is compatible with trailers or matev collection units, making it suitable for year-round use in parks, municipal areas, and along roadsides. Tool-free adjustments, edge cleaning options, and a robust design allow the MRM-120 AS to adapt easily to the terrain and type of material being collected.

Working Width
Drive Type
Weight
Mounting

120 cm (up to 210 cm with side brooms)

Hydraulic Rotor Brush & Suction Turbine

Approx. 185 kg

Cat. 0 / Cat. 1 Linkage

Technical Specifications

Specification Details
Dimensions (L x W x H) 886 x 1300 x 870 mm
Weight (without accessories) 185 kg
Working Width (standard) 1200 mm
Working Width (with 1 side broom) 1650 mm
Working Width (with 2 side brooms) 2100 mm
Side Broom Diameter Ø 500 mm
Turbine Diameter Ø 515 mm
Turbine Speed 2650 U/min
Brush Rotation Against direction of travel
Hydraulic Oil Requirement > 11 l/min @ 100 bar
Mounting Type Tractor Cat. 0 / Cat. 1
Height-Adjustable Attachment Included
Reinforced Casters Included

Key Features

  • Active Suction System – powered by a 515 mm turbine for efficient removal of leaves, debris, and damp material.
  • Hydraulic Rotor Brush – detaches even compacted or wet sweepings for better collection.
  • Stable Steel Construction – integrated chassis and protected hose routing offer long-term durability.
  • 2D Pendulum Levelling System – maintains even ground contact over uneven terrain.
  • Tool-Free Caster Adjustment – quick height changes for adapting to different surface types.
  • Height-Adjustable Air Gap – adapts suction strength to match the type of material.

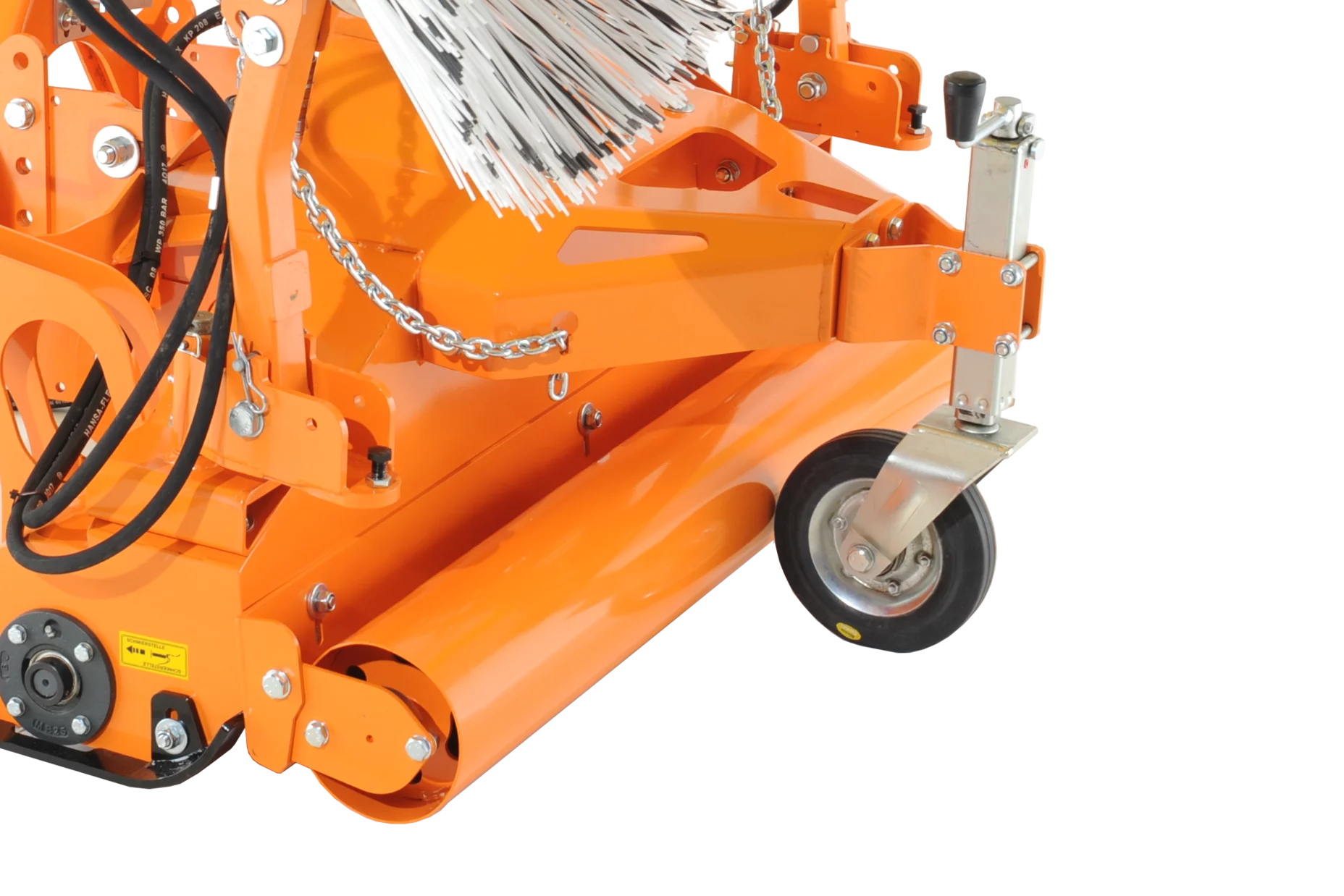

  • Optional Pressure Roller – prevents debris buildup ahead of the nozzle for smoother intake.
  • Manual Suction Nozzle (Optional) – helps clean tight or obstructed areas.

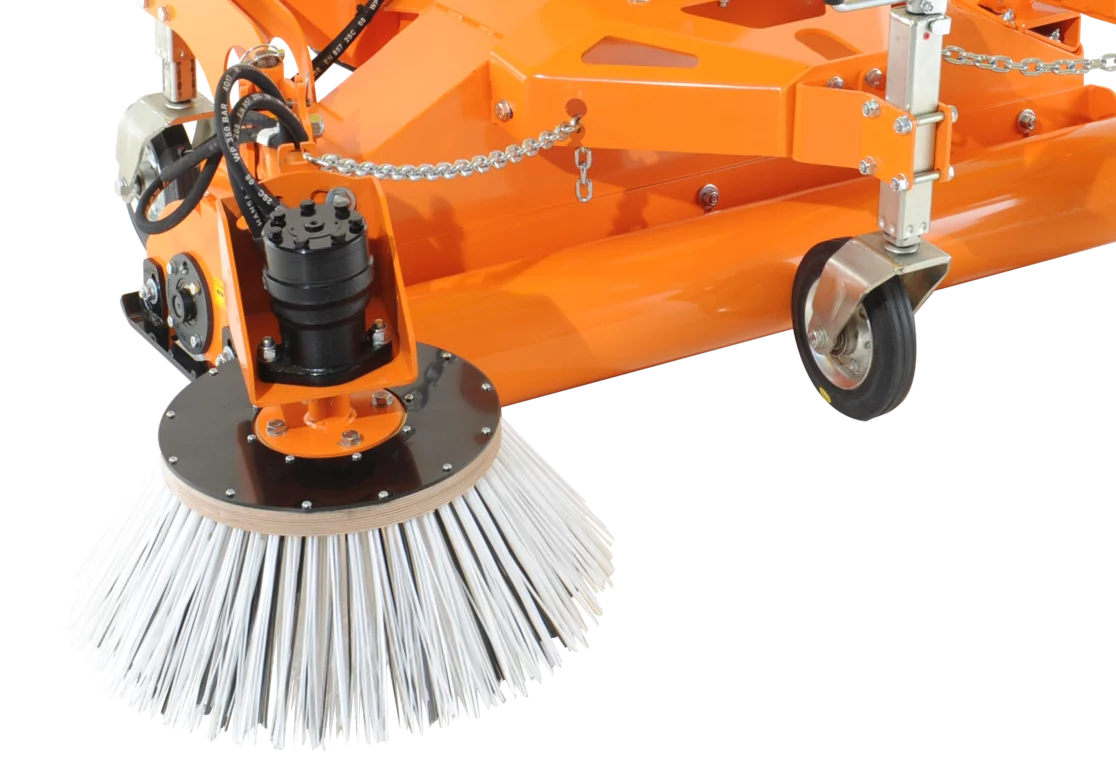

  • Side Brooms (Optional) – increase working width and improve edge coverage; available in steel or steel/perlon combinations.

Applications

  • Removal of leaves, green cuttings, and litter in parks and along paths
  • Post-mowing material pickup in open spaces and estates
  • Cleaning municipal and roadside areas with seasonal or high-volume debris
  • Works in combination with trailers or matev collectors for complete sweep-and-collect operations

Product Applications

Collecting large amount of material effectively

Vacuum sweeper is designed to handle large volumes of material across a variety of surfaces. The powerful suctions ensure effective collection of leaves, debris, and even heavier materials, making it ideal for large areas like parks, highways, or industrial sites. The system can also handle wet materials, offering year-round functionality and minimizing surface buildup.

Product Applications

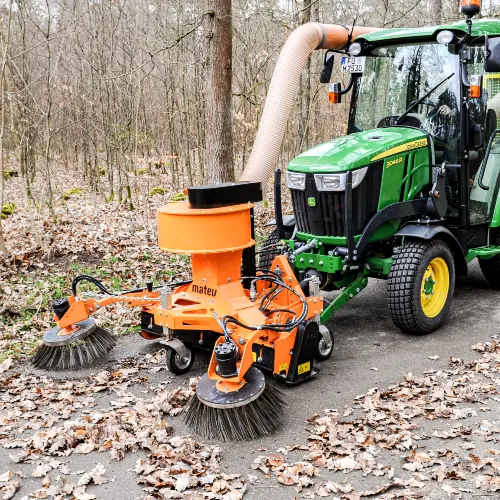

Videos Matev Active suction Vaccum Sweeper in aciton

Blogs

Case Study; Vacuum Sweeper for John Deere 2026r - Cover Image
Sweeping
Case Study; Vacuum Sweeper for John Deere 2026r

Struggle with leaf collection due to the size of a sweeper collector? Or the cost of a...

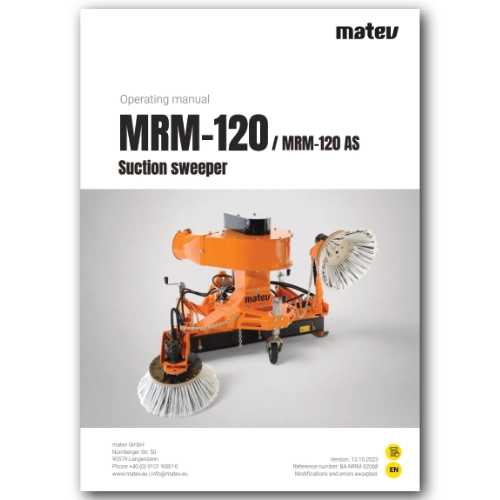

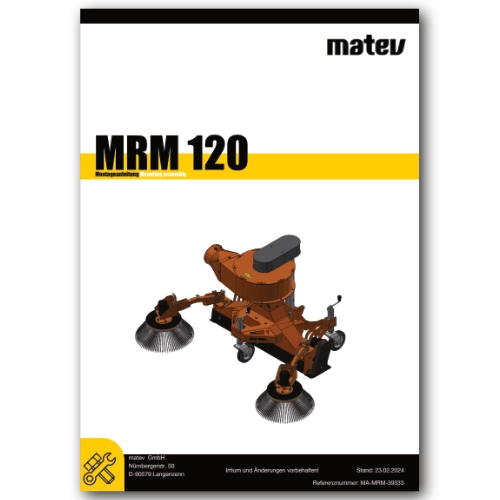

Instruction and Parts Manuals
