Attachments for John Deere 3 Series
Cab comfort.
Year-round site work.
The 3 Series has the power and hydraulic flow for bigger attachments. Add a front linkage and it can sweep, edge verges, remove weeds, clear leaves and snow and renovate gravel, with Kersten’s commercial two-year warranty.
For the 3038R, 3039R, 3045R and 3046R, and the 3025E, 3038E and 3039E. Attachments fit the front linkage, the rear linkage or both, driven by the PTO or hydraulics.
Front sweeper and verge brush case studies.
For blowers, snow blowers and weed brushes.
Plenty of flow for hydraulic attachments.
Commercial cover on Kersten attachments.
Start with cleaner surfaces
Three ways to sweep with your 3 Series.
Remove leaves, soil and organic debris before they build up, block drainage and give weeds somewhere to grow. Choose the working position and drive system together, not just the width.
Front hydraulic · proven on the 3 Series
KM 15045 H
150 cm working width · 45 cm brush · 20 l/min
Choose it for front sweeping with collection, dust suppression and hydraulic angling from the cab.
Our 3 Series case study runs it from the tractor’s front hydraulics with an SSB collector and WAS 200 water kit. Build it in the configurator below.
£3,950.00 ex VAT
Listed product price · check configuration
Supplied with the ABR 45 bracket. Front linkage, hydraulic services and options are specified around your tractor.
Rear hydraulic · keeps the front free
KM 15052 H
150 cm working width · 52 cm brush · 30 l/min
Choose it for rear sweeping with a larger brush, leaving the front free for a loader or other tools.
Mounted on the rear three-point linkage with the ABR 52 HECK bracket. The SSB 15052 collector empties hydraulically.
£2,495.00 ex VAT
Listed product price · check configuration
Sweeper listing only. We match the brush speed to your 3 Series’ hydraulic flow and specify the bracket, collector and controls.
Rear PTO · keeps the front free
HKM 15040 M
150 cm working width · 40 cm brush · 540 rpm PTO
Choose it for rear sweeping driven by the 540 rpm PTO, leaving the front free for a loader.
Add an SSB 15040 collector with hydraulic emptying (HB-SSB-HFKM) and an ASH 5040 M gully brush.
£3,595.00 ex VAT
Listed product price · check configuration
Uses the rear PTO and three-point hitch. Collector and hydraulic emptying kit are additional.
Prices are for the linked products, ex VAT, rather than complete fitted tractor packages. Mounting, drive kits, fitting and optional accessories depend on the specification. The enquiry links carry the chosen product into the contact-page message.
3039R front-sweeper configurator
Build a complete KM45 sweeper for your 3039R.
Add each component to see what it does and why it’s needed, then choose your options and send the build to us.

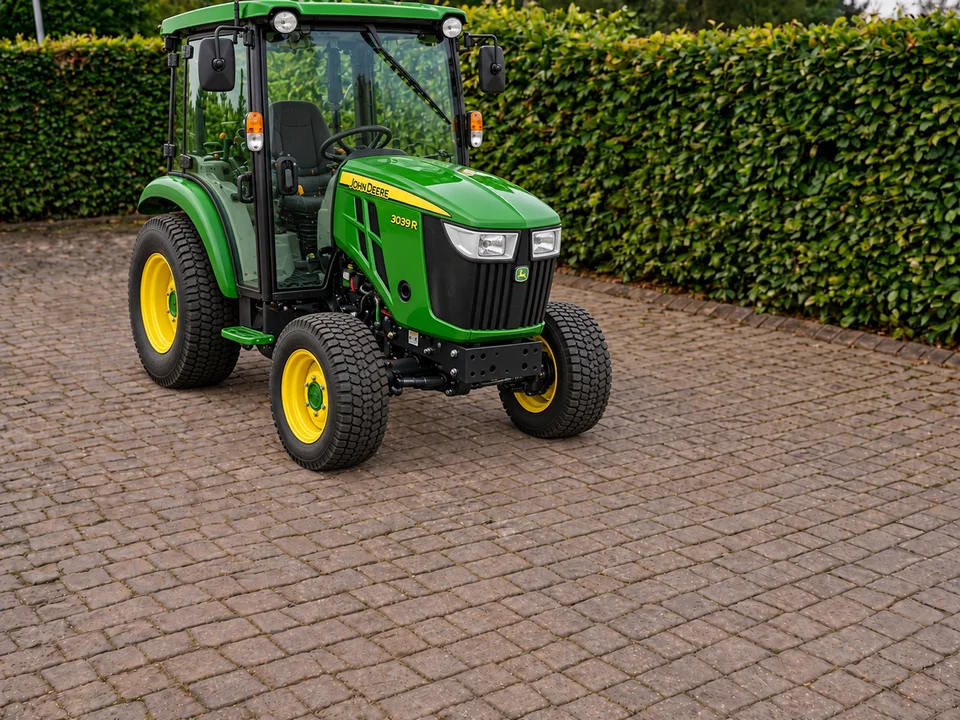

Bare John Deere 3039R
Your tractor
John Deere 3039R
Reference:
Real tractors, real fitting decisions
See how John Deere compact tractors were equipped.
These examples explain the choices behind each installation. Use them to start the discussion; we’ll match the details to your own tractor.
John Deere 3720 · front hydraulic sweeper
Front sweeping from the tractor’s hydraulics
A KM 15045 H with SSB collector and WAS 200 dust suppression, angled hydraulically from the cab and driven from the front services, the most cost-effective route on a 3 Series.
Read the case study →
John Deere 3039R · vertical weed brush
Edging verges without the clean-up
A UB EASY PAK VB on a Cat 1 front linkage, powered by a rear PTO hydraulic kit, keeping 30 miles of private roads and paths edged.
Read the case study →
John Deere 2038R · rear PTO sweeper
The rear-mounted alternative
An HKM 15040 M on the rear PTO with collector, hydraulic emptying and gully brush, keeping the front of the tractor free.
Read the case study →
Rear-mounted sweeper on a John Deere
An HKM 40 rear sweeper with collector and gully brush clearing moss, clippings and soil, with the box emptied hydraulically from the seat.
Watch on YouTube ↗
Hydraulic front sweeper on a John Deere
See a KM45 front sweeper running from a John Deere compact tractor’s own hydraulics with the mower deck still fitted.
Watch on YouTube ↗Beyond the sweeping round
Keep the 3 Series working all year.
Match the action to the problem: blow loose leaves, treat weeds with heat, renovate gravel, clear snow or cut rougher grass. Each needs its own mounting and power specification.
Verge edging · proven on the 3039R
UB EASY PAK VB
69 cm vertical brush · hydraulic · 25 l/min
Choose it to cut back grass verges along roads and paths, spreading the arisings over the grass so there’s no clean-up.
Our 3039R customer edges about 30 miles of private roads with it, on a Cat 1 front linkage with the ABR UB KD bracket and a rear PTO hydraulic kit.
£4,895.00 ex VAT
Listed product price · check configuration
For flat weed brushing on paths, the UB 6080 MH is the alternative.
Leaves & loose organic debris
LBV 6900 M
Mechanical PTO drive · 85 kg blower
Choose it for moving leaves to a planned collection area before they become wet, compacted detritus.
Uses the tractor’s PTO rather than a separate blower engine. Right-hand fixed discharge is standard.
£5,395.00 ex VAT
Listed product price · check configuration
Mounting bracket and PTO arrangement are specified for your 3 Series. Optional hydraulic chute rotation needs a double-acting service.
Thermal weed management
HOAF WeedAir 1002 IB
100 cm working width · propane fuel · 77 kW
Choose it for chemical-free treatment of young weeds and moss on paths, gravel and sandy areas.
Three main burners and two independent side burners. Gas supplies the treatment energy, so no PTO drive is needed.
£11,950.00 ex VAT
Listed product price · check configuration
75 kg before gas. We specify the bracket, gas carrying arrangement and controls for your 3 Series.
Rear PTO · gravel renovation
WE 150 M-DP
150 cm working width · CAT 1 / 1N rear linkage
Choose it for restoring unsealed gravel paths rather than sweeping loose stone off the surface.
Counter-rotating tools loosen and level the upper surface. Choose knives, chisels or brush tools around the gravel construction.
£9,150.00 ex VAT
Listed product price · check configuration
PTO-driven from the rear linkage. We match the tool set and PTO speed to your 3 Series.
.webp)
Winter · push snow aside
SCHN 14060 FK-ABR
140 cm blade width · 60 cm blade height
Choose it for access routes and car parks where cleared snow can be placed beside the route.
Spring-protected blade, adjustable skids and a replaceable edge. No rotating PTO drive is needed.
£1,950.00 ex VAT
Listed product price · check configuration
Blade listing without ABR bracket. We specify the bracket for your front linkage and the lifting / angling services.
Winter · move snow away
Cerruti L 1400 B
140 cm working width · mechanical drive
Choose it when deeper snow or limited room for windrows makes blowing more useful than pushing.
Sized for 25–40 hp carriers like the 3 Series, with mechanical PTO drive.
£7,150.00 ex VAT
Listed product price · check configuration
Needs a front PTO; we specify the mounting, drive and chute controls for your 3 Series.
Choose the system before the individual parts
A linkage lifts.
A PTO or hydraulic supply powers.
For most front attachments, the complete installation is:
The linkage provides the lift and coupling. The ABR bracket connects the attachment to that coupling. The drive system provides the working power. We specify all of them together for your tractor.
Matev front linkages for the 3R and 3E. FL JD 3R fits the 3038R, 3039R, 3045R and 3046R with a Cat 0 A-frame, which matches the ABR 45 KD bracket used by KM45 sweepers. The 3025E, 3038E and 3039E use FL JD 30383925E, with a Cat 0 or Cat 1 extension kit.
3R or 3E: which linkage?
The 3038R, 3039R, 3045R and 3046R share the FL JD 3R kit; the 3025E, 3038E and 3039E use FL JD 30383925E. Before we quote, we check your exact version and serial number, confirm current prices and delivery times, and look for any quirks on your tractor, so what arrives fits first time.
1. Rear PTO: avoid a front conversion
The 3039R has a 540 rpm rear PTO and a Category 1 hitch lifting 1,147 kg at the ends. Rear sweepers, gravel renovators, mowers and the hydraulic kit in our verge-brush case study run from here.
2. Front hydraulics: keep the mower deck
Our 3 Series case study runs a KM 15045 H from the front hydraulic services, the most cost-effective route. The 3039R’s 32.6 l/min implement pump comfortably covers the 20 l/min the KM45 needs; the BG3 hydraulic extension kit brings the services to the front.
3. Front mechanical PTO: for blowers and snow
The JD 3R front PTO kit is available at 1,000 rpm (either rotation) or 2,000 rpm, for the LBV leaf blower, Cerruti snow blower and UB 6080 MH weed brush. We match the gearbox, speed and rotation.
Check the lift capacity
Allow for the attachment, bracket, a full collector, water tanks or gas bottles when specifying the complete setup. We confirm the front linkage’s capacity for your tractor.
Build the tractor-side installation
Linkage and brackets, explained.
These are the main tractor-side components. We specify the matching linkage, drive and bracket around your 3 Series and attachment.
ABR 45 KD bracket
Connects KM45 sweepers to Cat 0 front-linkage A-frames, such as the Matev 3R linkage.
£795.00 ex VAT
Listed component price
View fitting component →
3R front linkage
FL JD 3R for the 3038R, 3039R, 3045R and 3046R: hydraulic lift and lower with a Cat 0 A-frame. Needs the Cat 0 extension kit; hydraulic extension and front PTO kits are optional.
£2,350.00 ex VAT
Listed component price
View fitting component →
3E front linkage
FL JD 30383925E for the 3025E, 3038E and 3039E: base frame with complete lift hydraulics. Needs the extension kit (Cat 0 or Cat 1) and hydraulic kit.
£2,100.00 ex VAT
Listed component price
View fitting component →
ABR UB KD bracket
Connects UB weed brushes, including the UB Easy vertical brush in our 3039R case study, to the front linkage.
See product page
Listed component
View fitting component →For the 3R linkage: the required Cat 0 extension kit, plus the optional BG3 hydraulic extension kit, front PTO kit and conversion kit for use with a loader.
What happens to the material matters.
Questions before you choose
What can a 3 Series do with Kersten attachments?
With a front linkage and the right drive, a 3 Series becomes a year-round tool carrier. It can sweep, remove weeds and moss without herbicide, blow leaves, treat weeds thermally, renovate gravel and clear snow, and still cut grass in summer.
Can I keep the mower deck on and sweep?
Yes, with a hydraulic front sweeper or any rear PTO attachment. A front PTO sweeper driven from the mid PTO can’t run with a mid deck fitted, which is why most 3 Series sweepers run hydraulically.
Front or rear sweeper?
A front sweeper gives you a clear view and works into corners; the front KM 15045 H in our 3 Series case study gives a clear view and works into corners; a rear HKM 15040 M or KM 15052 H keeps the front free for a loader. We’ll recommend the right one for your site.
Will these attachments fit my 3 Series?
Yes, the range is matched to the 3 Series. Before we quote, we check your exact version and serial number, confirm current prices and delivery times, and look for any quirks on your tractor, so what arrives fits first time.
What warranty do the attachments carry?
Kersten attachments for the John Deere 3 Series come with a commercial two-year warranty.
What should I send for a quotation?
Send the exact model, year or serial number, photos of the front and rear of the tractor, whether a loader or front linkage is fitted, which hydraulic services you have, and the job and access width. Include any collection, angling or dust-control options you need.
Start with the tractor you already own
Let’s match the complete 3 Series setup.
Tell us your tractor and the work you want it to do. We’ll help specify the attachment, linkage, drive, bracket and controls together.
- Exact model and year / serial number
- Front linkage, loader and hydraulic services fitted
- Cab, loader and mid mower fitted
- Task, surface, access width and options you need
