Kersten SCHN 60 · mounted snow ploughs
Keep your site moving
when the snow arrives.
Put a suitable tractor, mower or utility vehicle to work on winter routes. A 60 cm-high curved blade, sprung break-back protection and six widths help you build the right snow-clearing setup.
Choose your working width
The SCHN 60 range, at a glance.
Start with your carrier width and the narrowest part of the route. The plough should clear the wheel tracks when angled, fit through access points and suit the carrier’s lifting capacity and traction.
One blade family. Choose the width that fits the job.
Hydraulic angling lets you change the discharge direction from the seat. The series also lists manual angling: specify the required arrangement when ordering.
Blade height describes the plough, not a guaranteed snow depth it can clear. Snow condition, traction, carrier capacity and working method all affect performance.
| Model · direct product link | Blade width × height | Choose it when | Current blade price |
|---|---|---|---|
| SCHN 13060 FK-ABR → | 130 × 60 cm | The route is constrained and a 130 cm blade still covers your carrier when angled. | £1,900.00Ex VAT · checked 5 Oct 2026 |
| SCHN 14060 FK-ABR → | 140 × 60 cm | You need a modest step up in coverage while retaining access through tighter routes. | £1,950.00Ex VAT · checked 5 Oct 2026 |
| SCHN 15060 FK-ABR → | 150 × 60 cm | You have mixed paths and open areas, and the carrier can handle a 150 cm blade. | £1,995.00Ex VAT · checked 5 Oct 2026 |
| SCHN 16060 FK-ABR → | 160 × 60 cm | You need broader track coverage; a 160 cm installation is demonstrated in Kersten’s RTV case study. | £2,150.00Ex VAT · checked 5 Oct 2026 |
| SCHN 18060 FK-ABR → | 180 × 60 cm | You have wider paths or car parks with room to manoeuvre and store the displaced snow. | £2,350.00Ex VAT · checked 5 Oct 2026 |
| SCHN 20060 FK-ABR → | 200 × 60 cm | You want the widest blade in this range and have a suitable carrier, access and snow-storage space. | £2,595.00Ex VAT · checked 5 Oct 2026 |
Quote the complete installation. These are blade prices without the ABR mounting bracket. Confirm linkage or lift equipment, angling arrangement, hoses, controls, fitting and optional accessories in your quotation. All prices shown exclude VAT.
Clear routes with the machine you already own
Make winter work part of the maintenance round.
Access roads and car parks
A front plough moves snow away from the travelled route. Plan where it will be deposited so parking bays, entrances and drains remain usable.
Paths and site connections
Choose a width that can work between obstacles and through gateways. Check coverage with the blade angled, as well as straight ahead.
A seasonal attachment change
A correctly specified front mounting arrangement allows a suitable carrier to take on snow clearance alongside its other maintenance tasks.
The details that matter in winter
Control the snow and the blade’s contact with the ground.
Give the blade room to trip
The sprung break-back mechanism lets the blade yield on contact with an obstruction; two return springs restore its position. It helps reduce impact loads, but does not replace a route inspection and controlled working speed.
Set the clearance for the surface
Adjustable skids support the blade and help set its working height. The right setting balances clearance with avoiding excessive edge contact or picking up loose surface material.
Maintain the working edge
A replaceable scraper edge keeps the wearing part serviceable. Match its material, length and fixing pattern to the actual plough and surface; replace it before wear compromises the installation.
The curve does useful work. The rolled steel mouldboard guides snow up and across the blade towards the discharge side. Angling helps form a windrow, so allow space alongside the route rather than repeatedly pushing the same bank forward.
Which bracket suits your carrier?
Build the complete mounting and control arrangement.
The mounting bracket connects the plough to the carrier’s lifting system. Most installations need both a suitable front linkage or lift arrangement and the correct ABR-SCHN bracket.
Lift and support
The carrier’s linkage or lift system raises the plough for transport and places it for work. Specify lift capacity at the attachment position, front axle limits, ballast and ground following for the complete fitted assembly.
Explore tractor front linkages →Hydraulics for the controls
The series lists 20 L/min for the hydraulic arrangement. Confirm available flow, pressure, valve functions, couplings and hoses for lifting and angling.
The carrier pushes the snow: this plough has no rotating implement to drive from a PTO. Manual angling is listed as an alternative; confirm the separate lifting arrangement.
| Bracket · product link | Listed mounting route | Current bracket price |
|---|---|---|
| ABR-SCHN-US → | John Deere Quick-Tatch front linkage; exact carrier to be confirmed. | £495.00Ex VAT · checked 5 Oct 2026 |
| ABR-SCHN-KUB-B1220 → | Kubota B1220 with the specified Kersten linkage. | £495.00Ex VAT · checked 5 Oct 2026 |
| Kubota G23 / G26 bracket → | Kubota G23 / G26 with the specified Kersten linkage. | £495.00Ex VAT · checked 5 Oct 2026 |
| ABR-SCHN-KD → | Triangle / A-frame mounting; confirm the linkage category and geometry. | £650.00Ex VAT · checked 5 Oct 2026 |
| ABR-SCHN-DP → | Front three-point linkage; the current listing specifies Cat I / Cat II. | £650.00Ex VAT · checked 5 Oct 2026 |
| ABR-SCHN-FM → | Two-point front lift arms of a suitable outfront mower. | £895.00Ex VAT · checked 5 Oct 2026 |
| ABR-SCHN-HT → | Hoftrac wheel-loader installation; confirm the exact loader interface. | £1,050.00Ex VAT · checked 5 Oct 2026 |
A bracket listing is not a universal fit. Send the exact carrier model and photographs of the existing linkage. Blade width, lift capacity, attachment geometry and hydraulic control requirements must be checked together.
Support and visibility options
Finish the setup for the way you work.
RD-SCHN-G · castor wheel kit
An optional rolling support kit listed for SCHN ploughs from 130 to 200 cm. Discuss the surface and working-height setup before choosing wheels alongside the standard skids.
BGL-SCHN · marker lights
Red and white marker lights listed for the plough. Include wiring and fitting in the installation specification.
WA-FLAG · width markers
Side warning flags are listed among the plough’s accessories to make the attachment’s outer width easier to see. Confirm the mounting arrangement.
Replace the edge, not the whole plough
Order consumables for your exact blade.
Keep the wearing part ready for winter.
Match the blade model, serial number, edge material and hole pattern before ordering. The listings include urethane edges; the 180 cm listing describes a Robalon plastic scraper edge.
Confirm the material supplied for your installation rather than assuming every length uses an identical compound.
Identify my replacement edge →| Replacement edge · product link | Listed part code | Current price |
|---|---|---|
| 130 cm edge → | 800 130 005 SB | Ask for a price |
| 140 cm edge → | 800 140 108 | £147.00Ex VAT · checked 5 Oct 2026 |
| 150 cm edge → | 800 150 005 | £218.94Ex VAT · checked 5 Oct 2026 |
| 160 cm edge → | 800 160 005 | £204.75Ex VAT · checked 5 Oct 2026 |
| 180 cm edge → | 800 180 005 | £244.52Ex VAT · checked 5 Oct 2026 |
| 200 cm edge → | C07049 | Ask for a price |
Plan the route before the first snowfall
Clear snow first. Manage ice as well.
Inspect and mark
Identify raised covers, kerbs, ramps and vulnerable surfaces. Measure gateways and record the narrowest sections.
Choose the discharge side
Plan windrows and snow-storage areas. Keep exits, drains and pedestrian crossings clear.
Work within the setup
Set the skids, angle and working speed to suit the surface and snow. Follow the carrier and attachment instructions.
Address remaining ice
A plough moves snow but does not remove every icy layer. Include suitable treatment and follow-up checks.
Real installations and useful guidance
See how the plough fits into winter maintenance.
Kubota RTV · a complete winter setup
A SCHN 16060 plough, hydraulic front linkage and ABR-SCHN-KD bracket work alongside a Lehner Polaro L spreader.
Read the Kersten article →
LM Trac 287 · work through the seasons
Kersten’s installation includes a SCHN 15060 snow plough alongside sweeping and leaf-management attachments.
Read the Kersten article →

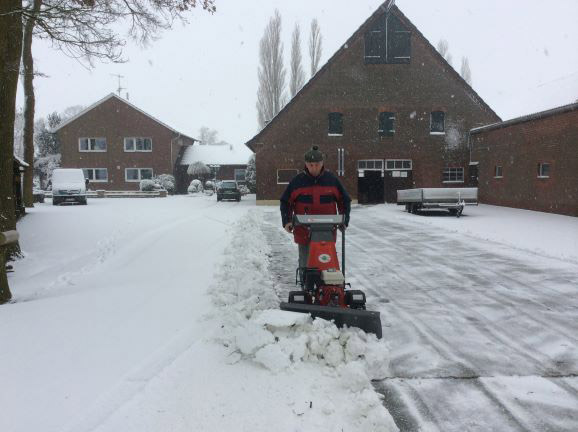

Prepare your site for winter
Compare the roles of a sweeper, snow plough, spreader and snow blower. This article uses pedestrian machines as its examples.
Read the Kersten article →Parts information and catalogues
The SCHN 60 R03 parts list covers the six FK-ABR widths and is dated June 2022, from machine number 66664. Check it against your machine’s serial number before selecting parts; request the operating instructions for the supplied installation.
Open the SCHN 60 parts-list page →Kersten catalogues and technical resources →
Match the tool to the winter conditions
Complete your snow and ice equipment.
Compare sweepers for lighter fresh snow and year-round surface cleaning →
Before you order
Your SCHN 60 questions answered.
Does SCHN 60 mean a 60 cm working width?
No. It identifies the 60 cm blade height. This range has 130, 140, 150, 160, 180 and 200 cm blade widths.
Is the mounting bracket included in the blade price?
No. These blade listings are without the ABR bracket. Specify the bracket, front linkage or lift system, controls, hoses and fitting as part of the complete quotation.
How do I choose the blade width?
Check your carrier’s wheel-track coverage with the blade angled, the narrowest access point, room to manoeuvre and available snow-storage space. Then confirm the fitted weight, lift capacity, axle limits and traction.
Does the plough need a front PTO?
The blade has no rotating implement and does not need PTO drive for snow clearance. A suitable lifting and mounting arrangement is required, with hydraulic services for the specified hydraulic controls.
Can I have manual angling?
The series lists hydraulic or manual angling and asks that the required arrangement be specified. Discuss how the plough will be lifted separately; confirm the actual configuration and price in your quotation.
What hydraulics are required?
Kersten lists 20 L/min for the hydraulic arrangement. The exact installation also needs compatible pressure, valve functions, couplings and hoses for lifting and angling; send your carrier details for confirmation.
Does spring protection make it safe to hit obstacles?
No. The sprung mechanism helps reduce impact loads, but hidden covers, kerbs and other obstructions still need to be identified. Use a controlled speed and follow the operating instructions.
Will one plough leave the site free from ice?
Snow clearance and ice treatment are separate tasks. Assess remaining ice or compacted material and include suitable treatment, a spreader where appropriate, and follow-up inspections.
Are all replacement edges the same material?
No assumption should be made from width alone. The current listings describe urethane edges and a Robalon plastic edge for 180 cm. Confirm material, part code and fixing pattern against the blade and serial number.
Can it fit my ride-on mower or utility vehicle?
Suitable installations exist, including Kersten’s Kubota RTV and LM Trac case studies. Fitment depends on the exact carrier, linkage, bracket, controls and capacities. Send the full model and existing mounting details before ordering.
Get your winter setup ready
Tell us about your carrier and route.
Send the machine make and model, existing linkage and hydraulic details, narrowest access width and the surfaces you need to clear. We’ll help specify the blade, bracket and controls together.
