Attachments for Kubota B Series
Compact tractor.
Year-round tool carrier.
Add a front linkage and the right drive, and your B-Series can sweep, remove weeds without glyphosate, clear leaves and snow and renovate gravel, with Kersten’s commercial two-year warranty.
For the B2231, B2261 and B2311, and earlier B2350, B2650 and B3150. Attachments fit the front linkage, the rear linkage or both, driven by the PTO or hydraulics.
Edinburgh’s B-Series weed brush fleet.
Heavy-duty Cat 0 linkage for the B-Series.
Engine-driven front PTO kit available.
Commercial cover on Kersten attachments.
Start with cleaner surfaces
Three ways to clean surfaces with your B-Series.
Remove weeds, moss, leaves, soil and organic debris before they build up, block drainage and give weeds somewhere to grow. Choose the working position and drive system together, not just the width.
Rear PTO · used by Edinburgh Council
HKM 15040 M
150 cm working width · 40 cm brush · 540 rpm PTO
Choose it to collect the debris behind a front weed brush, or for rear sweeping without a front conversion.
Edinburgh run theirs with an SSB 15040 collector and hydraulic emptying kit, behind a front-mounted UB weed brush.
£3,595.00 ex VAT
Listed product price · check configuration
Uses the 540 rpm rear PTO and Category 1 hitch. Collector and hydraulic emptying kit are additional.
Front hydraulic · tractor oil supply
KM 13045 H
130 cm working width · 45 cm brush · 20 l/min
Choose it for front sweeping with collection, kerb-edge cleaning or dust control, driven from the tractor’s hydraulics.
The configurator below pairs it with the heavy-duty B-Series Cat 0 front linkage and ABR 45 KD bracket.
£3,595.00 ex VAT
Listed product price · check configuration
Sweeper listing only. Front linkage, hydraulic pipework and options are specified around your tractor.
Front weed brush · glyphosate-free
UB 6080 MH
60 cm brush plate · front PTO with hydraulic functions
Choose it to remove established weeds and moss from kerbs, path edges and joints, as Edinburgh Council do.
Driven by the B-Series front PTO kit, with lifting and angling from a joystick. Fitted with the ABR UB KD bracket and BT 060 FL brush plate.
£7,895.00 ex VAT
Listed product price · check configuration
Front linkage, front PTO kit, bracket, brush plate and joystick are specified as one package.
Prices are for the linked products, ex VAT, rather than complete fitted tractor packages. Mounting, drive kits, fitting and optional accessories depend on the specification. The enquiry links carry the chosen product into the contact-page message.

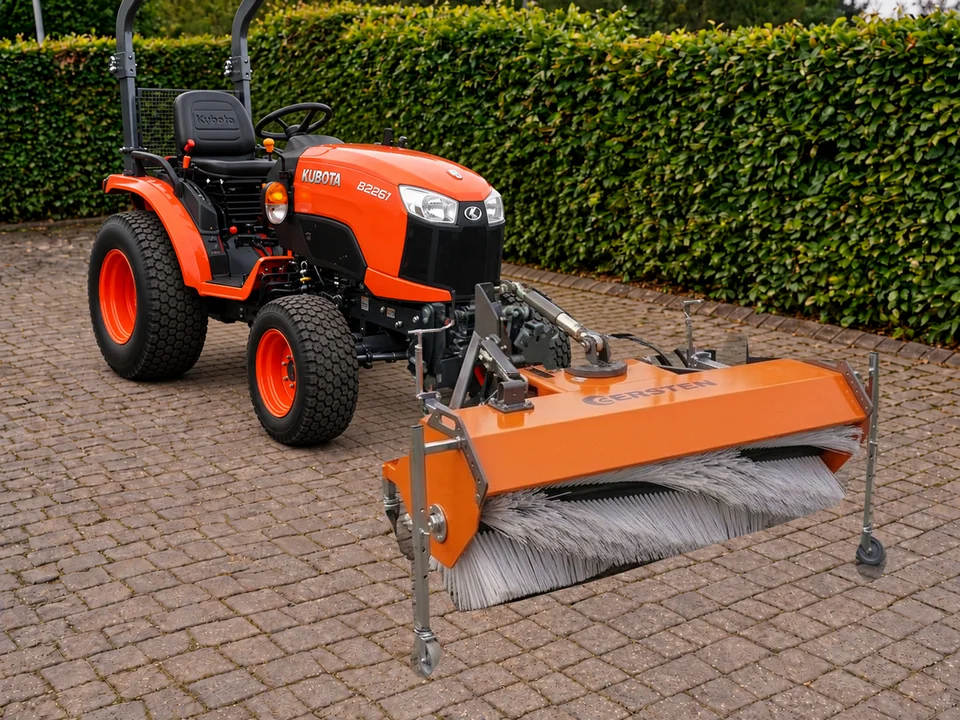

B2261 front-sweeper configurator
Build a complete KM45 sweeper for your B2261.
Add each component to see what it does and why it’s needed, then choose your options and send the build to us.

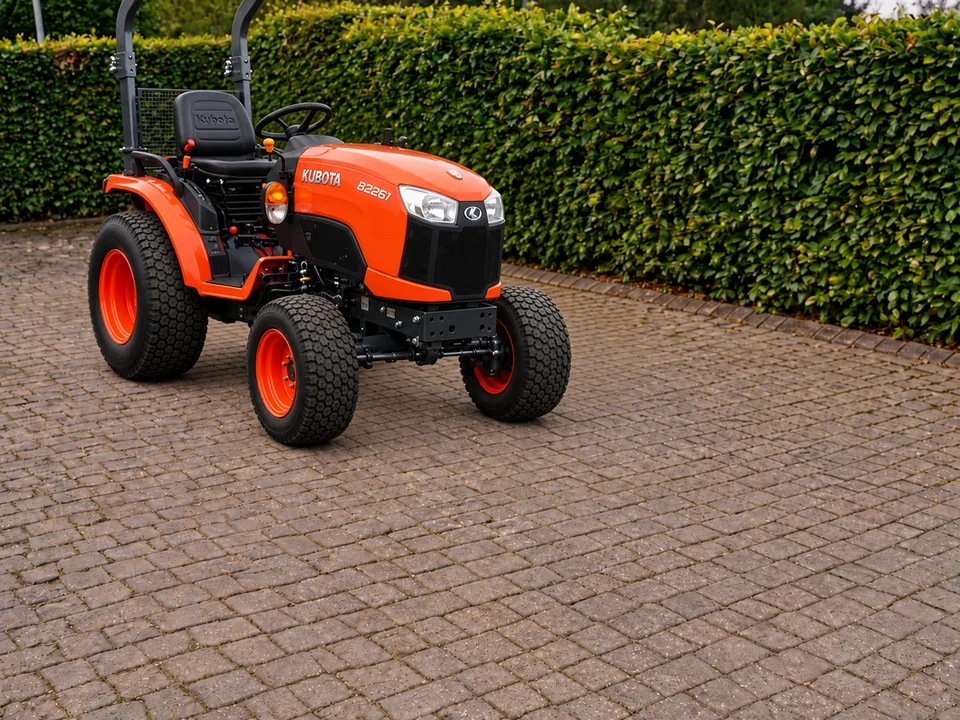

Bare Kubota B2261
Your tractor
Kubota B2261
Reference:
Real tractors, real fitting decisions
See how Kubota compact tractors were equipped.
These examples explain the choices behind each installation. Use them to start the discussion; we’ll match the details to your own tractor.
B3150 · Edinburgh Council
Reducing glyphosate with a weed brush
Two B-Series tractors with front PTO-driven UB 6080 MH weed brushes and rear HKM sweepers to collect the arisings. Weed complaints fell as the council moved away from glyphosate.
Read the case study →-w.jpg)
BX261 · rear PTO sweeper
Keep the front of the tractor free
An HKM 12540 M with collector and gully brush on the rear linkage and PTO, with the front PTO and hydraulic alternatives explained.
Read the case study →
BX2350 · front hydraulic sweeper
Sweeping from tractor hydraulics
A front sweeper powered from the tractor’s auxiliary hydraulics, and how sweeper size is matched to the oil flow available.
Read the case study →
Kubota B3150 at work
See the B-Series weed brush installation from our Edinburgh Council case study in action.
Watch on YouTube ↗
UB 6080 MH weed brush on a Kubota
Watch the UB 6080 MH, the weed brush used by Edinburgh, clearing weeds and moss on a Kubota tractor.
Watch on YouTube ↗Beyond the sweeping round
Keep the B-Series working all year.
Match the action to the problem: blow loose leaves, treat weeds with heat, renovate gravel, clear snow or cut rougher grass. Each needs its own mounting and power specification.
Leaves & loose organic debris
LBV 6900 M
Mechanical PTO drive · 85 kg blower
Choose it for moving leaves to a planned collection area before they become wet, compacted detritus.
Uses the carrier’s PTO rather than a separate blower engine. Right-hand fixed discharge is standard.
£5,395.00 ex VAT
Listed product price · check configuration
Mounting bracket and a compatible PTO arrangement are additional. Optional hydraulic chute rotation needs a suitable double-acting service.
Thermal weed management
HOAF WeedAir 1002 IB
100 cm working width · propane fuel · 77 kW
Choose it for chemical-free treatment of young weeds and moss on paths, gravel and sandy areas.
Three main burners and two independent side burners. Gas supplies the treatment energy, so no PTO drive is needed.
£11,950.00 ex VAT
Listed product price · check configuration
75 kg before gas. Specify the bracket, gas carrying arrangement and controls, and check the loaded weight against the linkage’s lift capacity.
%20660.jpg)
Rear PTO · gravel renovation
WE 110 M-DP
110 cm working width · CAT 1 / 1N rear linkage
Choose it for restoring unsealed gravel paths rather than sweeping loose stone off the surface.
Counter-rotating tools loosen and level the upper surface. Choose knives, chisels or brush tools around the gravel construction.
£7,295.00 ex VAT
Listed product price · check configuration
We match the tool set and PTO speed to your B-Series’ Category 1 hitch.
Winter · push snow aside
SCHN 13545 FK-ABR
135 cm blade width · 45 cm blade height
Choose it for access routes and car parks where cleared snow can be placed beside the route.
Spring-protected blade, adjustable skids and a replaceable edge. No rotating PTO drive is needed.
£1,650.00 ex VAT
Listed product price · check configuration
Blade listing without ABR bracket. Specify the bracket for your front linkage and the lifting / angling services.
Winter · move snow away
Cerruti L 1200 B
120 cm working width · two-stage design
Choose it when deeper snow or limited room for windrows makes blowing more useful than pushing.
The listing specifies 20–40 hp carriers, with hydraulic chute rotation and deflector adjustment.
£6,350.00 ex VAT
Listed product price · check configuration
Runs from the B-Series front PTO kit with a gearbox matched to 1,000 rpm; we specify the mounting and controls.
Grass, banks & rough cutting
Rotary & flail mowers
Rear mounted · 540 rpm PTO
Choose a mounted mower for rougher grass, banks and verges.
Rotary mowers suit regular cutting; flail mowers handle longer, rougher growth and leave a finer finish.
Choose by width and weight to suit the B-Series’ Category 1 hitch and engine power.
Choose the system before the individual parts
A linkage lifts.
A PTO or hydraulic supply powers.
For most front attachments, the complete installation is:
The linkage provides the lift and coupling. The ABR bracket connects the attachment to that coupling. The drive system provides the working power. We specify all of them together for your tractor.
One heavy-duty linkage across the range. The FL KUB B2650-1 front linkage fits the B2231, B2261 and B2311 as well as the earlier B2350, B2650 and B3150. It lifts 800 kg and comes with a Cat 0 A-frame, which takes the ABR 45 KD bracket used by KM45 sweepers.
Which B-Series models does it suit?
The heavy-duty front linkage is listed for the B2231, B2261, B2311, B2350, B2650 and B3150. Before we quote, we check your exact version and serial number, confirm current prices and delivery times, and look for any quirks on your tractor.
1. Rear PTO: avoid a front conversion
The B2261 has a 540 rpm rear PTO and a Category 1 hitch lifting around 970 kg at the ends. Rear sweepers, gravel renovators and mowers work from the back of the tractor.
2. Front hydraulics: pipe forward from the rear valves
The front linkage doesn’t include hydraulic services, so it runs from the front loader valve or pipework from the rear valves. The same supply can drive a KM 13045 H, which needs 20 l/min; we check your tractor’s available flow.
3. Front mechanical PTO: engine-driven
The FPTO KUB B2650-1 front PTO kit is engine-driven and built into the front axle carrier, giving 1,000 rpm. Attachments need a matching gearbox. Edinburgh’s weed brushes run from this kit.
Check the lift capacity
The heavy-duty linkage lifts 800 kg. Allow for the attachment, bracket, a full collector, water tanks or gas bottles when specifying the complete setup.
Build the tractor-side installation
Linkage, bracket and power options, explained.
These are the main tractor-side components. We specify the matching linkage, drive and bracket around your B-Series and attachment.
B-Series front linkage
FL KUB B2650-1: heavy-duty, single-cylinder, 800 kg lift, Cat 0 A-frame. Fits B2231, B2261, B2311, B2350, B2650 and B3150.
£2,195.00 ex VAT
Listed component price
View fitting component →
B-Series front PTO kit
FPTO KUB B2650-1: engine-driven, 1,000 rpm clockwise, built into the front axle carrier for better lift geometry.
Price on request
Ask us for a current price
View fitting component →
ABR 45 KD bracket
Connects KM45 sweepers to Cat 0 front-linkage A-frames, such as the B-Series heavy-duty linkage.
£795.00 ex VAT
Listed component price
View fitting component →
ABR UB KD bracket
Connects UB weed brushes to Cat 0 front-linkage A-frames, as used on Edinburgh Council’s B-Series tractors.
See product page
Listed component
View fitting component →For a weed brush package, add the BT 060 FL brush plate and ST-UB-JS joystick controls. For rear sweepers, see the HKM hydraulic collector opening kit.
What happens to the material matters.
Questions before you choose
What can a B-Series do with Kersten attachments?
With a front linkage and the right drive, a B-Series becomes a tool carrier with lift, lower and angling functions. It can sweep, remove weeds and moss without herbicide, blow leaves, treat weeds thermally, renovate gravel, clear snow and cut rough grass.
Can a B-Series replace glyphosate on paths and pavements?
Edinburgh Council run B-Series tractors with front UB 6080 MH weed brushes and rear HKM sweepers to collect the arisings, and recorded fewer weed complaints as they reduced glyphosate. Read the case study for the full installation.
Which drive should I choose for a front attachment?
A hydraulic sweeper such as the KM 13045 H runs from the tractor’s own hydraulics, piped forward from the rear or loader valves. Heavier work such as weed brushing suits the engine-driven 1,000 rpm front PTO kit. We’ll recommend the right route for your tractor and job.
Does the front linkage fit my B-Series?
The heavy-duty FL KUB B2650-1 linkage is listed for the B2231, B2261, B2311, B2350, B2650 and B3150. Before we quote, we check your exact version and serial number, current prices and delivery times, and any quirks on your tractor.
What warranty do the attachments carry?
Kersten attachments for the Kubota B Series come with a commercial two-year warranty.
What should I send for a quotation?
Send the exact model, year or serial number, photos of the front and rear of the tractor, whether a loader or front linkage is fitted, which hydraulic services you have, and the job and access width. Include any collection, angling or dust-control options you need.
Start with the tractor you already own
Let’s match the complete B-Series setup.
Tell us your tractor and the work you want it to do. We’ll help specify the attachment, linkage, drive, bracket and controls together.
- Exact model and year / serial number
- Front linkage and hydraulic services fitted
- Loader, mid mower and hydraulic valves fitted
- Task, surface, access width and options you need
