Product Overview
Kersten UB 6080 MH Front Mounted Mechanical PTO Weedbrush with Integrated Hydraulic system for compact tractors and out-front mowers from 30-60hp
The Kersten UB 6080 MH is a mechanically PTO-driven weedbrush designed for high-performance weed and moss removal. Featuring a hydraulic system, this versatile tool is ideal for heavy-duty path edging and wide-area cleaning of block paving and tarmac. With hydraulic lifting and angling capabilities, it ensures efficient and precise operation. The 60/80 cm brush plate, coupled with a lateral protection device, provides durability and safety in demanding environments.
134 cm
60/80 cm
0-86°
239 kg

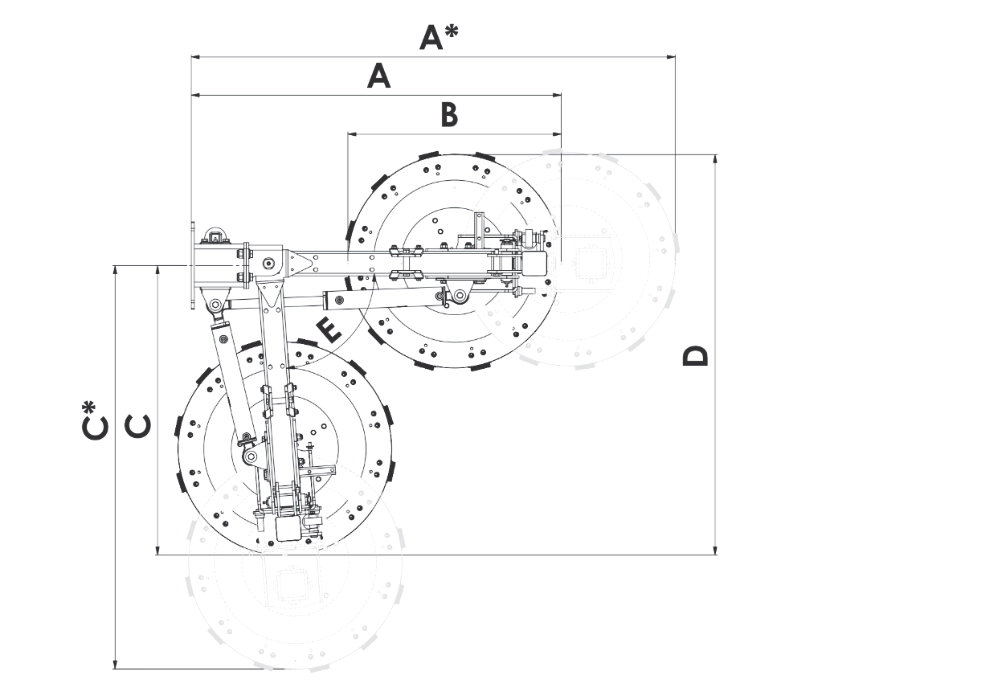

Technical Specifications
| Machine Specification | Details |
|---|---|
| Overall Machine Length | 134 cm |
| Overall Machine Length after arm extension(arm extension sold separately) | 171 cm |
| Brush Diameter | 60/80 cm |
| Swivel Angle | 0-86° |
| Weight | 239 kg |
| Hydraulic System | 30 l/min |
| Required ABR bracket | Requires Attachment Frame ABR-UB-... |
| Required Brush Plate | Brush Plates (BT 060 FL, BT 080 FL, BT 080 DS-KU) |
| Required Controller | Controller ST-UB-JS or ST-UB-RC |
- Professional tractor-mounted weedbrush designed for compact and sub-compact tractors or out-front mowers with a front PTO and lifting mechanism.
- Self-contained hydraulic system, including pump, tank, and motors, providing 30 l/min oil flow to operate all brush functions.
- Cab-controlled operation via remote control or joystick for precise management of brush angle, arm positioning, and brush engagement.
- Compatible with softer Versa brushes for gentle cleaning on block paving and large areas, or aggressive Hausa (Wire Rope) brushes for cutting through tough turf edges.
- Robust construction using CNC-folded and welded heavy-gauge steel for a lightweight, compact, and highly durable design.
- Adjustable brush head angle to reduce wear, increase surface pressure, and handle challenging cambers effectively.
- Heavy-duty gauge wheel with spindle adjustment for fine-tuning brushing height, complemented by larger adjustments via the linkage for versatile setup.
- Adjustable guard and low brush speeds to minimize debris scatter and keep waste contained near the brush.
Required Brush Plate
Select one from below
Required controller for brush lift, lower, left/right movement, and angle adjustment.
Optional accessories
Consumables
Product Applications
Moss and Weeds on hard surfaces
When Moss and Weeds become established on hard surfaces, such as block paving; tarmac; or concrete - they are difficult to remove with a sweeper. For this application we have made the Weedbrush. Kersten weedbrushes have been designed to quickly remove weeds and moss.
Edging Footpaths and Borders
It is important that paths are kept at the correct width to allow proper access for pedestrians, pushchairs and wheelchair users. The weedbrush can remove the overburden and restore the width of the path - the more frequently this is done, the easier the task will be.
