Attachments for Grillo FD & FM outfront mowers
More work from
your Grillo mower.
Sweep car parks, reclaim overgrown edges, clear leaves and prepare for winter. Match the attachment, mounting bracket and power arrangement to your exact Grillo model.
Start with your maintenance task
Which attachment will earn its place?
Choose the task first. The attachments below are routes to discuss for the FD/FM platform, with the completed fitment checked against your mower’s model, year, lift arrangement and power supply.
Sweeping and collection
KM 13045 M sweeper
Lift soil, moss and bulky debris from paths and car parks; add collection when material needs to leave the site.
Choose it when: Regular surface cleaning and removing the growing medium for weeds are your main jobs.
- Working width
- 130 cm
- Roller diameter
- 45 cm
- Brush
- Five-row combi poly
- Mounting
- ABR 45 bracket required
PTO-to-hydraulic Grillo conversion, bracket, collector and controls must be specified with the carrier.
View attachment →
Established weeds and path edging
UB 6080 MH weedbrush
A PTO-powered hydraulic brush system for heavier weed growth and overburden along hard-surface edges.
Choose it when: A sweeper alone cannot remove the established vegetation or soil hiding the path edge.
- Brush plate options
- 60 / 80 cm
- Input drive
- Mechanical PTO
- Working system
- Integrated hydraulics
- Installation
- ABR-UB bracket + controller
Brush plate, mounting frame and controller are required separately. Confirm the complete Grillo configuration; photograph shows another carrier.
View attachment →
Autumn leaf clearance
LBV 6900 M blower
Move leaves and loose debris towards a planned collection point without repeatedly stopping to empty a box.
Choose it when: Leaves cover a large area and you have somewhere suitable to direct and collect the material.
- Air output
- 140 m³/min
- Listed air reach
- Up to 12 m
- Input drive
- Mechanical PTO
- Listed blower weight
- 95 kg
Select the PTO gearing and Grillo bracket together. Blowing moves material; it does not collect it.
View attachment →
Winter access
SCHN 15060 FK-ABR plough
A front blade with spring protection and adjustable skids for planned snow-clearance routes.
Choose it when: You can push snow to an agreed storage area and need to reopen paths or parking areas.
- Blade width
- 150 cm
- Blade height
- 60 cm
- Protection
- Spring-back blade
- Adjustment
- Hydraulic angling
The blade needs a matched mounting bracket and hydraulic control arrangement; confirm lift capacity and surface-protection edge.
View attachment →
Pesticide-free thermal treatment
HOAF TWB 100 ABR
Treat unwanted vegetation with hot air and infrared heat where aggressive brushing is unsuitable for the surface.
Choose it when: A planned repeat-treatment programme is better suited to the surface than mechanical removal.
- Working width
- 100 cm
- Heat source
- LPG
- Treatment
- Hot air + infrared
- Mounting
- Matched ABR bracket
Specify the mounted model, bracket, gas supply and controls. Thermal treatment leaves material in place and regrowth can need repeat visits.
View attachment →
Deeper snow and restricted storage
Cerruti L 1400 B
A two-stage snow blower that gathers snow with an auger and projects it through an adjustable chute.
Choose it when: Pushing snow would create obstructive piles, and a suitable discharge area is available.
- Working width
- 140 cm
- Intake height
- 65 cm
- Auger / impeller
- 40 / 40 cm
- Chute
- Hydraulic rotation + deflector
Confirm the Grillo mounting, PTO speed and rotation, available power and chute-control hydraulics before selecting this model.
View attachment →Quote the working system, not just the attachment. These are individual product-page prices, not a complete Grillo installation price. Brackets, PTO conversion, hydraulic services, controls and working accessories may be additional. Photographs illustrate attachments and do not establish fitment to every FD/FM model.
Understand the working system
The lift arms carry it. The PTO powers it.
Lift and mounting
The mower’s lift arms raise and lower the tool. A model-specific carrier bracket connects the attachment to those arms; most attachments do not bolt straight onto the mower.
PTO-to-hydraulic drive
Kersten’s documented FD 13.09/FD 2200 sweeper installation uses the offset PTO to run a hydraulic pump. The pump powers the sweeper and supports functions such as collector opening and the gully brush.
One matched configuration
A PTO-powered sweeper conversion does not prove that the mower has a spare hydraulic supply for every other tool. Match the drive, reservoir, return, valve controls and mounting to each attachment.
Check the carrier before ordering
FD and FM are families, not a universal fitting.
Give us the full model designation, serial number or year, plus photographs of the lift arms, PTO connection and any auxiliary hydraulic couplings.
Identify the mower
Confirm the exact model and generation. A similar-looking FD or FM may have a different interface or available power.
Match the bracket
Specify the lift-arm connection and attachment frame. The Grillo sweeper case studies use the ABR 45 FM bracket family.
Confirm the drive
Check PTO speed, direction, connection and any pump conversion. Hydraulic angling and controls also need a suitable supply and return.
Check the loaded tool
Assess clearance, working width, traction and lift capacity with the collector full or other working equipment fitted.
| Your Grillo | Available evidence | What to confirm |
|---|---|---|
| FD 13.09 | Kersten’s NHS-site case study documents a KM 13045 M installation with collector and hydraulic gully brush. | Bracket version, PTO conversion and complete controls for your particular mower. |
| FD 2200 | Kersten documents the same sweeper approach for FD 2200 and FD 13.09. | Generation and exact model suffix; the documented installation is not blanket approval for later versions. |
| Other FD / FM models | The Grillo attachment page shows further installations, including sweepers, a blower and a plough. | Individual engineering confirmation for the selected attachment; do not order on the family name alone. |
Complete the sweeper setup
Collect the debris. Reach the kerb edge.
The documented Grillo installation combines the KM 13045 M, ABR 45 FM bracket, SSB 13045 K collector and hydraulic gully brush. Confirm the PTO-driven hydraulic package separately.

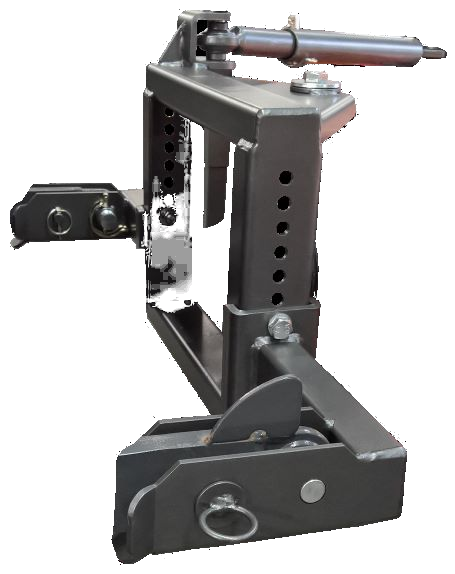

ABR 45 FM mounting bracket
Connects a KM45 sweeper to two-point outfront-mower lift arms. Specify the Grillo-specific version; this is the published bracket-family price.
SSB 13045 K collector
A 130 cm sheet-steel collector with hydraulic emptying. Pick it when debris needs to be removed rather than left in a windrow.
ASH 4045 KM gully brush
A 40 cm hydraulic side brush brings material from the kerb edge into the main brush’s path. A hydraulic supply and return are required.
Choose the finish you need. The collector removes debris from site; the gully brush reaches edges; a brush guard helps contain discharge when windrowing. Brush choice, pressure and speed should suit the surface. Dust suppression can be specified where needed.
Choose by the material on the surface
Different jobs need different methods.
Prevent the build-up
Regular sweeping removes loose soil, leaves and detritus that can obstruct drainage and provide a growing medium for weeds. Collection takes that material away.
Reclaim an overgrown edge
A weedbrush agitates established growth and soil beyond routine sweeping. Follow with collection so loosened material is removed rather than spread across the route.
Plan seasonal clearance
A blower relocates leaves; a plough pushes snow; a snow blower projects it. Decide where material will end up before choosing the working tool.
See the working system
Grillo installations and practical guidance.
Grillo FD 13.09 · NHS-site case study
A mower becomes a car-park sweeper
See the bracket, 1.3 m sweeper, collector and hydraulic gully brush used to help maintain a hospital car park.
Read the Grillo case study →
Weed-management guidance
Get more from thermal treatment
Why plant maturity, stored energy and removing soil build-up matter when planning repeat thermal weed-management visits.
Read the practical guidance →For the related FD 2200 installation explanation, read Kersten’s FD/FM sweeper article →.
Grillo sweeper in action
See the front-mounted setup at work.
Watch the documented Grillo combination
Use the video to see the machine and sweeper layout, then specify the working width, bracket and accessories for your own site.
The video illustrates one installation; confirm compatibility for your mower.
Watch on YouTube →Before ordering
Your Grillo attachment questions answered.
Will these attachments fit every Grillo FD or FM?
No. Match the exact mower model and generation, bracket, PTO interface, available power and control system. The FD 13.09 and FD 2200 sweeper case studies provide installation examples, not universal fitment approval.
Do I need an attachment mounting bracket?
Normally yes. Lift arms provide lift and lower, while a carrier bracket connects the attachment to them. KM45 sweepers use an ABR 45 bracket; weedbrushes, burners and winter tools require their own matched mounting systems.
Does the sweeper use the Grillo hydraulic system?
The documented FD 13.09/FD 2200 setup uses the offset PTO to drive a hydraulic pump for the sweeper and auxiliary functions. Confirm the complete installation rather than assuming the mower has sufficient spare implement hydraulics.
Are the prices for complete Grillo kits?
No. They are individual listing prices excluding VAT, with dated fallback values. Confirm brackets, pump conversion, controls, collector, brush plate, gas supply and other accessories in the written quotation.
Should I buy a sweeper or a weedbrush?
Use a sweeper for regular debris and soil removal. Use a weedbrush when established growth or overburden needs more active mechanical removal, then collect the loosened material.
Can I use a pedestrian thermal weeder on my Grillo?
Specify a vehicle-mounted model and its matched carrier bracket. The TWB 100 ABR shown here is the mounted product; the pedestrian TWB 100 K listing is a different configuration.
What should I send for a compatibility check?
Send the exact model, year or serial number, photos of the lift arms, PTO and auxiliary couplings, plus your task, surface, access width and preferred accessories.
Specify a complete Grillo working system
What else could your Grillo do?
Tell us the model, maintenance task and site conditions. We’ll help match the attachment, mounting bracket, drive conversion and controls to your mower.
