Description

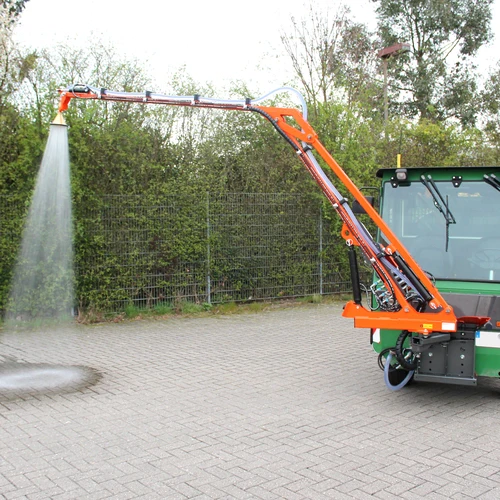

- FS 3000 Watering Arm with hydraulic swivelling for Sub-Compact and Compact Tractors
- Hydraulic swivelling up to 180° left and right for wide coverage
- Total arm reach up to 3,500 mm; spray coverage up to 7,000 mm
- Height, width, and nozzle angle fully adjustable via 4 hydraulic cylinders
- Two spray head options:

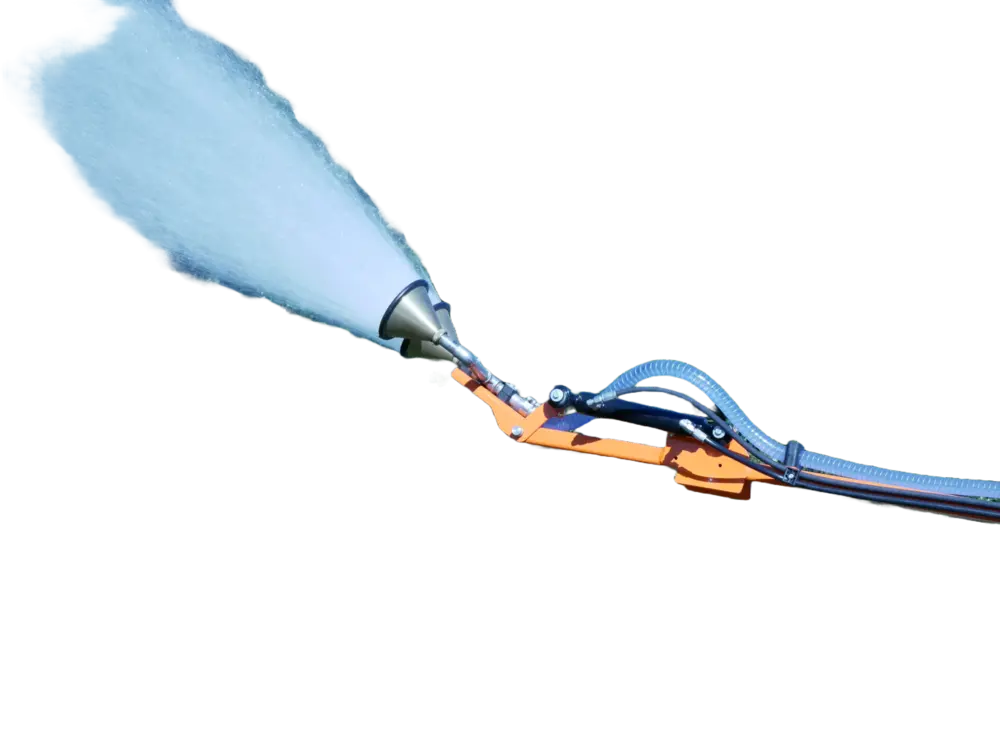

- Brass Shower Head for gentle, soft-watering of sensitive plants

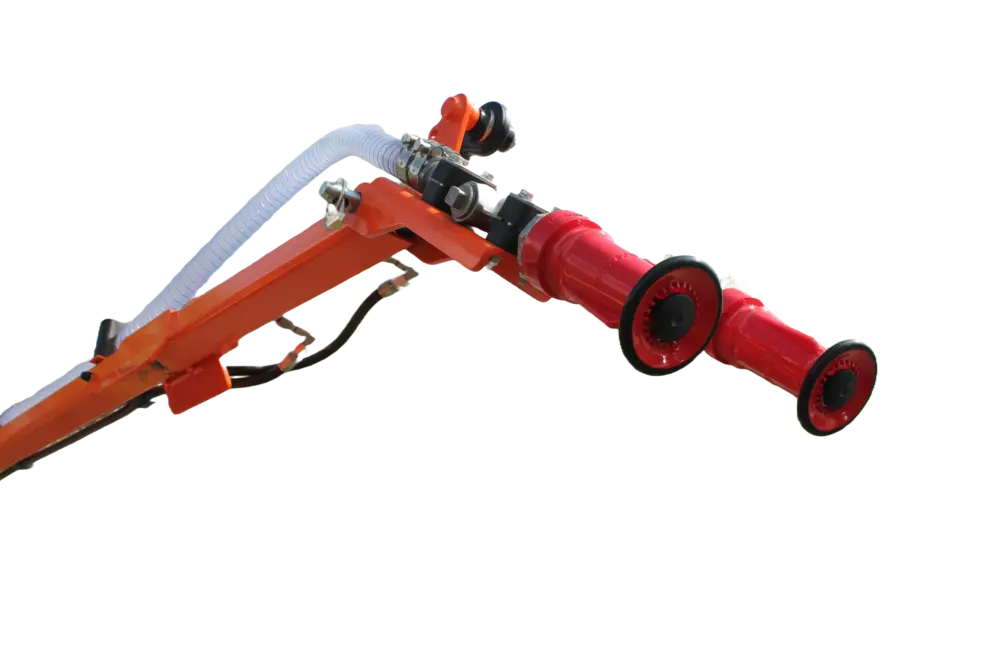

- PowerJet Nozzle with adjustable spray pattern (stream, cone, mist)
- Powder-coated or galvanised steel frame for long service life in tough environments
- Operate directly from the cab with electric or radio control box options

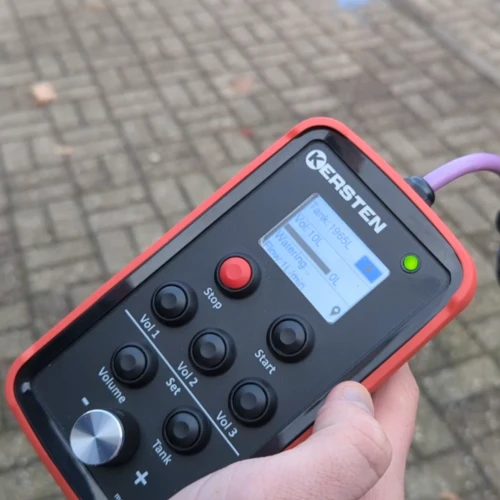

- Optional ‘Flow Control’ system with preset volumes, tank level monitoring, and GPS-enabled reporting
- Requires 4 x DW hydraulic valves; weight: 177 kg
Requires ABR Bracket
Specification
| Arm Reach | 382 cm maximum in travel direction |
| Minimum arm reach to side | 83 cm |
| Spray Head Options | Brass Shower Head or Adjustable PowerJet Nozzle |
| Spray Width | Up to 7,000 mm |
| Total Arm Reach | 3,500 mm |
| Watering Arm Length | 113 cm |
| Hydraulics | 4 x DW Valves |
| Control System | Electric Control Box or Radio Remote |
| Optional Accessories | Flow Control System with GPS Reporting |
| Dimensions - Height | 300 cm (folded) |
| Weight | 177 kg |
| Weight | 177 kg (basic unit) |
Gallery
Gallery images load as you reach this section.
Required Extras
Essential components, mounting frames, or conversion kits needed to connect and operate this product safely. Make sure to include these items if you do not already own them.
WR 3000 1367
FS 3000 - Pouring arm radio remote control for four hydraulic cylinders
£ 4,150.00
View product →WR 3000 1401
FS 3000 - Casting arm electric control box for four hydraulic cylinders
£ 2,210.00
View product →
WR 3000 1398
Power jet nozzle for FS 3000
£ 355.00
View product →
WR 3000 1397
Brass shower head for FS 3000
£ 355.00
View product →Optional Accessories
Optional upgrades and add-ons designed to expand the capabilities, efficiency, or convenience of your equipment for specific tasks and working conditions.
WR 3000 1400
FS 3000 - LED warning flashers FS 3000
£ 235.00
View product →WR 3040 1254
Watering arm - LED worklights on the casting head
£ 355.00
View product →
WR 3000 1366
FS 3000 - Irrigation control ‘Flow Control’ with pump
£ 4,600.00
View product →
WR 3000 1470
FS 3000 and HTG 4000 compatible - Irrigation control ‘Flow Control’ for external pump
£ 4,600.00
View product →WR 3000 1173
FS 3000 and HTG 4000 - Adjustable throttle
£ 145.00
View product →WR 3000 1402
FS 3000 - Watering pump FS 3000
£ 1,850.00
View product →WR 3000 1413
FS 3000 - Flow control valve, required for more than 60 l/min oil capacity
£ 405.00
View product →Downloads

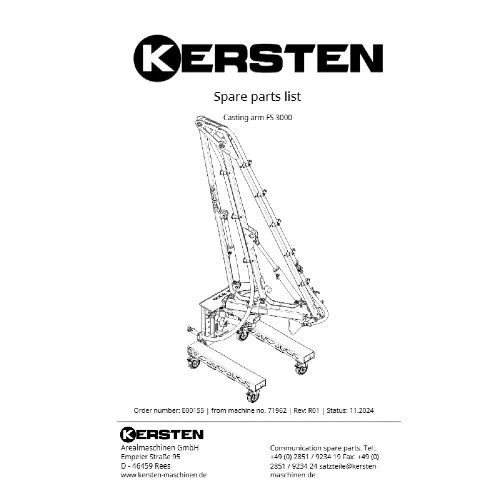

Official operator manuals, spare parts lists, technical data sheets, and setup guides available to view or download for this product.
Compatible Brackets (ABR)
Specific mounting plates, quick-attach couplings, and adaptor brackets used to secure this equipment to your chosen carrier or linkage. ABR Brackets are required to mount the attachment onto various types of linkage.
ABR 3040 CAT1/2
ABR WR HTG 4000 and FS 3000 series - Mounting frame three-point cat 1/2
£ 795.00
View product →ABR 3040 CAT1/2
ABR WR HTG 4000 and FS 3000 series - Mounting frame three-point cat 1/2
£ 795.00
View product →ABR 3000 CAT 1
ABR FS 3000 series - Mounting frame cat.1
£ 795.00
View product →ABR 3000 CAT C LAT
ABR FS 3000 series - Dome triangle Cat.communal with latching lock
£ 795.00
View product →ABR 3000 CATM
ABR FS 3000 series - Dome triangle Cat Municipal with screw lock
£ 795.00
View product →ABR 3000 CAT1N
ABR FS 3000 series - Three-point attachment frame Cat. 1N
£ 795.00
View product →
