Attachments for Kubota ST Series
Winter sweeper.
Summer mower.
The ST has the power and hydraulics to sweep, clear snow and grit all winter, and still cut grass in summer. Add a front linkage and it can sweep, remove weeds, clear leaves and snow and renovate gravel, with Kersten’s commercial two-year warranty.
For the ST341, ST371 and ST401. Attachments fit the front linkage, the rear linkage or both, driven by the PTO or hydraulics.
KM 15045 H front sweeper case study.
Hydraulic drive, so the deck stays on.
Plenty of flow for a hydraulic sweeper.
Commercial cover on Kersten attachments.
Start with cleaner surfaces
Three ways to sweep with your ST.
Remove leaves, soil and organic debris before they build up, block drainage and give weeds somewhere to grow. Choose the working position and drive system together, not just the width.
Front hydraulic · proven on the ST341
KM 15045 H
150 cm working width · 45 cm brush · 20 l/min
Choose it for front sweeping and snow clearance, with collection, kerb-edge cleaning or a brush guard for open sweeping.
Our ST341 case study runs it from the tractor’s front hydraulic services with a GUSPL brush guard to keep snow off the cab. Build it in the configurator below.
£3,950.00 ex VAT
Listed product price · check configuration
Supplied with the ABR 45 bracket. Front linkage, hydraulic services and options are specified around your tractor.
Rear hydraulic · keeps the front free
KM 15052 H
150 cm working width · 52 cm brush · 30 l/min
Choose it for rear sweeping with a larger brush, leaving the front free for a loader or other tools.
Mounted on the rear three-point linkage with the ABR 52 HECK bracket. The SSB 15052 collector empties hydraulically.
£2,495.00 ex VAT
Listed product price · check configuration
Sweeper listing only. We match the brush speed to your ST’s hydraulic flow and specify the bracket, collector and controls.
Rear PTO · no hydraulics needed
HKM 15040 M
150 cm working width · 40 cm brush · 540 rpm PTO
Choose it for rear sweeping driven by the ST’s rear PTO, with no front conversion.
Add a collector, gully brush or guard to suit the material. Hydraulic angling and height adjustment are available.
£3,595.00 ex VAT
Listed product price · check configuration
Uses the rear PTO and three-point hitch. Collector and hydraulic emptying kit are additional.
Prices are for the linked products, ex VAT, rather than complete fitted tractor packages. Mounting, drive kits, fitting and optional accessories depend on the specification. The enquiry links carry the chosen product into the contact-page message.
ST341 front-sweeper configurator
Build a complete KM45 sweeper for your ST341.
Add each component to see what it does and why it’s needed, then choose your options and send the build to us.

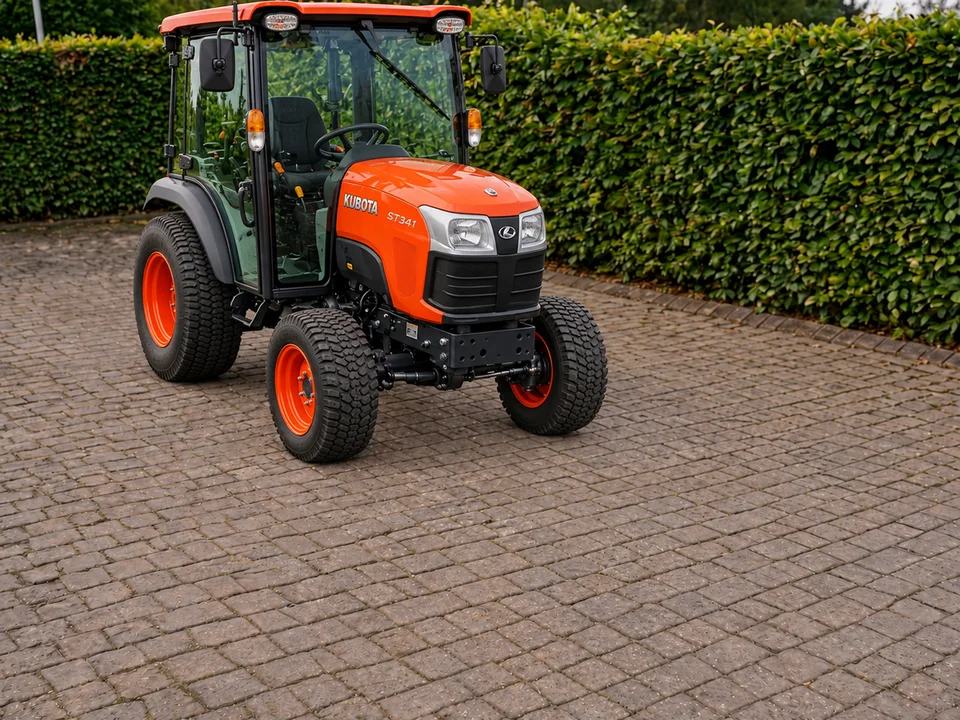

Bare Kubota ST341
Your tractor
Kubota ST341
Reference:
Real tractors, real fitting decisions
See how the ST and similar Kubotas were equipped.
These examples explain the choices behind each installation. Use them to start the discussion; we’ll match the details to your own tractor.

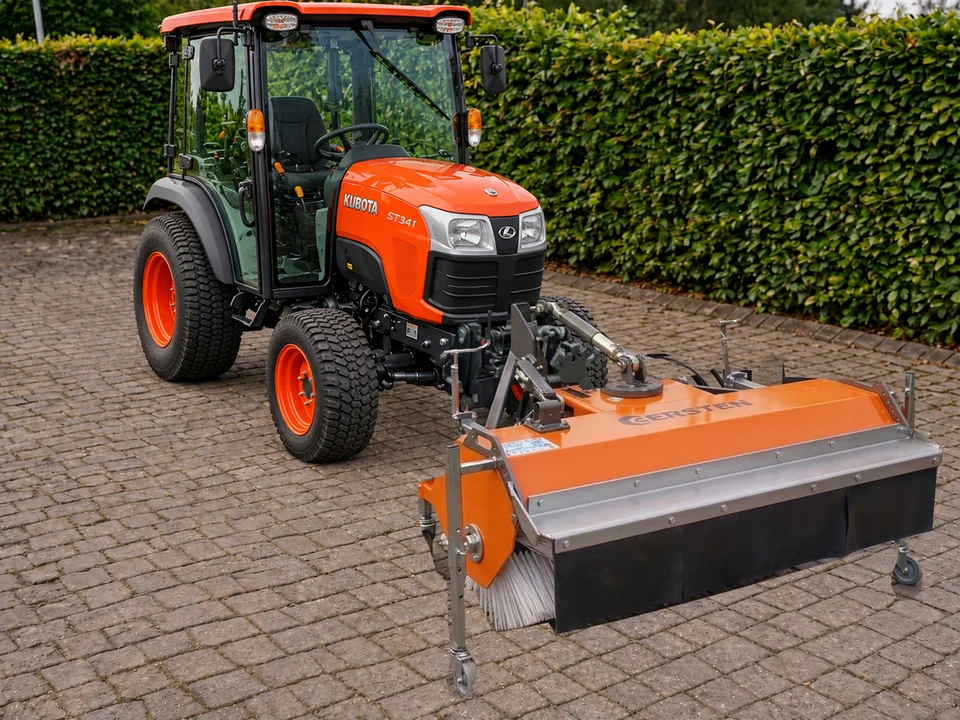

Kubota ST341 · front hydraulic sweeper
Snow and sweeping in winter, mowing in summer
A KM 15045 H with GUSPL brush guard on a Kersten front linkage, driven from the ST341’s front hydraulics, working alongside the tractor’s rear gritter.
Read the case study →%20(1).jpg)
Kubota LX · front hydraulic sweeper
The same sweeper with collection
A KM 15045 H with collector and ASH 4045 M gully brush on the ST’s sister model, the LX, driven from the front hydraulics with the mower deck kept on.
Read the case study →
Kubota B3150 · Edinburgh Council
Reducing glyphosate with a weed brush
Kubota compact tractors with front UB 6080 MH weed brushes and rear sweepers to collect the arisings, as the council moved away from glyphosate.
Read the case study →
KM45 hydraulic front sweeper at work
See a KM45 hydraulic sweeper running from a compact tractor’s own hydraulics with the mower deck still fitted, the same principle as the ST341 installation.
Watch on YouTube ↗
UB 6080 MH weed brush on a Kubota
Watch the UB 6080 MH clearing weeds and moss on a Kubota tractor.
Watch on YouTube ↗Beyond the sweeping round
Keep the ST working all year.
Match the action to the problem: blow loose leaves, treat weeds with heat, renovate gravel, clear snow or cut rougher grass. Each needs its own mounting and power specification.
Weeds & moss · glyphosate-free
UB 6080 MH
60 cm brush plate · PTO drive with hydraulic functions
Choose it to remove established weeds and moss from kerbs, path edges and joints before sweeping.
The weed brush Edinburgh Council run on their Kubota B-Series. Lifting and angling are controlled by joystick.
£7,895.00 ex VAT
Listed product price · check configuration
Front linkage, PTO drive, ABR UB KD bracket and brush plate are specified as one package.
Leaves & loose organic debris
LBV 6900 M
Mechanical PTO drive · 85 kg blower
Choose it for moving leaves to a planned collection area before they become wet, compacted detritus.
Uses the tractor’s PTO rather than a separate blower engine. Right-hand fixed discharge is standard.
£5,395.00 ex VAT
Listed product price · check configuration
Mounting bracket and PTO arrangement are specified for your ST. Optional hydraulic chute rotation needs a double-acting service.
Thermal weed management
HOAF WeedAir 1002 IB
100 cm working width · propane fuel · 77 kW
Choose it for chemical-free treatment of young weeds and moss on paths, gravel and sandy areas.
Three main burners and two independent side burners. Gas supplies the treatment energy, so no PTO drive is needed.
£11,950.00 ex VAT
Listed product price · check configuration
75 kg before gas. We specify the bracket, gas carrying arrangement and controls for your ST.
Rear PTO · gravel renovation
WE 150 M-DP
150 cm working width · CAT 1 / 1N rear linkage
Choose it for restoring unsealed gravel paths rather than sweeping loose stone off the surface.
Counter-rotating tools loosen and level the upper surface. Choose knives, chisels or brush tools around the gravel construction.
£9,150.00 ex VAT
Listed product price · check configuration
PTO-driven from the rear linkage. We match the tool set and PTO speed to your ST.
.webp)
Winter · push snow aside
SCHN 14060 FK-ABR
140 cm blade width · 60 cm blade height
Choose it for access routes and car parks where cleared snow can be placed beside the route.
Spring-protected blade, adjustable skids and a replaceable edge. No rotating PTO drive is needed.
£1,950.00 ex VAT
Listed product price · check configuration
Blade listing without ABR bracket. We specify the bracket for your front linkage and the lifting / angling services.
Winter · move snow away
Cerruti L 1400 B
140 cm working width · mechanical drive
Choose it when deeper snow or limited room for windrows makes blowing more useful than pushing.
Sized for 25–40 hp carriers like the ST, with mechanical PTO drive.
£7,150.00 ex VAT
Listed product price · check configuration
Needs a front PTO; we specify the mounting, drive and chute controls for your ST.
Choose the system before the individual parts
A linkage lifts.
A PTO or hydraulic supply powers.
For most front attachments, the complete installation is:
The linkage provides the lift and coupling. The ABR bracket connects the attachment to that coupling. The drive system provides the working power. We specify all of them together for your tractor.
Kersten front linkage for the ST. Our ST front linkage lets you swap attachments by pulling a pin, and the KM45 connects through an ABR bracket matched to its A-frame, as in our ST341 case study.
ST341, ST371 or ST401?
Both take the same attachment range. Before we quote, we check your exact version and serial number, confirm current prices and delivery times, and look for any quirks on your tractor, so what arrives fits first time.
1. Rear PTO: avoid a front conversion
The ST has a two-speed rear PTO and a three-point hitch. Rear sweepers, gravel renovators, mowers and the gritter in our case study work from the back of the tractor.
2. Front hydraulics: keep the mower deck
Our ST341 case study runs a KM 15045 H from the front hydraulic services, the most cost-effective route. The ST’s 30 l/min pump comfortably covers the 20 l/min the KM45 needs, and the mower deck can stay on.
3. Front mechanical PTO: for blowers and snow
A front PTO drives mechanical attachments such as the LBV leaf blower, Cerruti snow blower and UB 6080 MH weed brush. We match the gearbox, speed and rotation.
Check the lift capacity
Allow for the attachment, bracket, a full collector, water tanks or gas bottles when specifying the complete setup. We confirm the front linkage’s capacity for your tractor.
Build the tractor-side installation
Brackets and sweeper accessories, explained.
These are the components used in our ST installation. We specify the matching front linkage, drive and bracket around your tractor and attachment.
ABR 45 KD bracket
Connects KM45 sweepers to front-linkage A-frames, as used on the ST341.
£795.00 ex VAT
Listed component price
View fitting component →

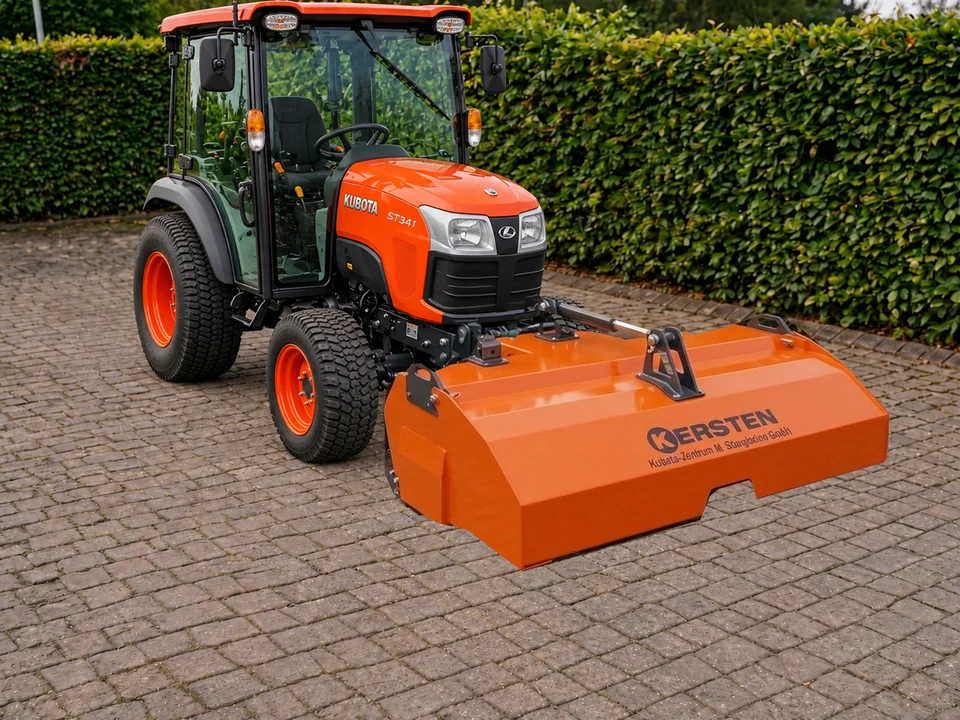

SSB collector box
Collects the swept material so it can be removed from site rather than left in a windrow.
See product page
Listed component
View accessory →

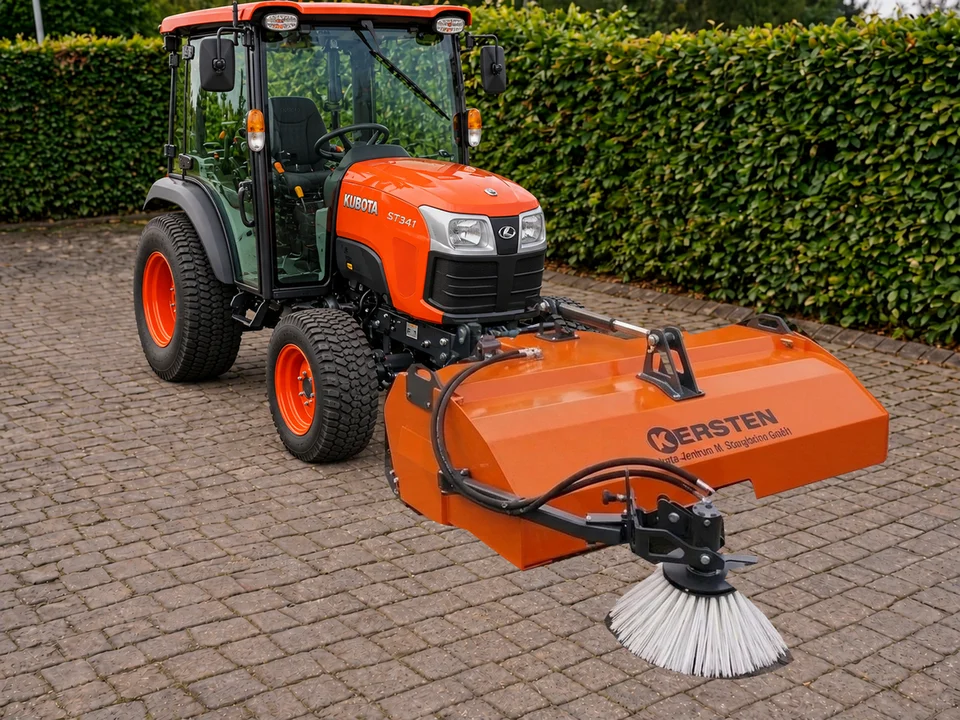

ASH 4045 M gully brush
40 cm hydraulic-drive side brush that draws material from kerbs and edges into the main brush.
See product page
Listed component
View accessory →
ABR UB KD bracket
Connects UB weed brushes to Cat 0 front-linkage A-frames, so the same front linkage carries a sweeper or weed brush.
See product page
Listed component
View fitting component →Ask us for the front linkage and front PTO to suit your ST; we supply them with the attachment as one package.
What happens to the material matters.
Questions before you choose
What can an ST do with Kersten attachments?
With a front linkage and the right drive, an ST becomes a year-round tool carrier. It can sweep, remove weeds and moss without herbicide, blow leaves, treat weeds thermally, renovate gravel and clear snow, and still cut grass in summer.
Can I keep the mower deck on and sweep?
Yes. The KM 15045 H runs from the ST’s front hydraulic services, so the mower deck can stay fitted.
Front or rear sweeper?
A front sweeper gives you a clear view and works into corners; it is the setup in our ST341 case study, with a brush guard to keep snow off the cab. A rear KM 15052 H or HKM 15040 M leaves the front free for a loader. We’ll recommend the right one for your site.
Will these attachments fit my ST?
Yes, the range is matched to the ST. Before we quote, we check your exact version and serial number, confirm current prices and delivery times, and look for any quirks on your tractor, so what arrives fits first time.
What warranty do the attachments carry?
Kersten attachments for the Kubota ST Series come with a commercial two-year warranty.
What should I send for a quotation?
Send the exact model, year or serial number, photos of the front and rear of the tractor, whether a loader or front linkage is fitted, which hydraulic services you have, and the job and access width. Include any collection, angling or dust-control options you need.
Start with the tractor you already own
Let’s match the complete ST setup.
Tell us your tractor and the work you want it to do. We’ll help specify the attachment, linkage, drive, bracket and controls together.
- Exact model and year / serial number
- Front linkage and hydraulic services fitted
- Loader, mid mower and hydraulic valves fitted
- Task, surface, access width and options you need
