Attachments for Iseki TXG & TXGS Series
Compact mower tractor.
Year-round tool carrier.
The TXGS24 already has a rear PTO, a mid PTO and hydraulic services. Add a front linkage and the right drive, and it can sweep paths, clear leaves and snow, treat weeds and renovate gravel, with Kersten’s commercial two-year warranty.
For the TXGS24 and earlier TXG23 / TXG237. Attachments fit the front linkage, the rear linkage or both, driven by the PTO or hydraulics.
KM45 front sweeper case study.
Hydraulic drive leaves the mid PTO free.
Linkage, bracket, drive and attachment.
Commercial cover on Kersten attachments.
Start with cleaner surfaces
Three ways to sweep with your TXGS.
Remove leaves, soil and organic debris before they build up, block drainage and give weeds somewhere to grow. Choose the working position and drive system together, not just the width.
Rear PTO · no front conversion
HKM 12540 M
125 cm working width · 40 cm brush · 540 rpm PTO
Choose it when a rear working position suits the site and you want to use the TXGS’s rear PTO.
Supplied with a telescopic rear mounting frame. Add a collector, gully brush or guard to suit the material.
£3,395.00 ex VAT
Listed product price · check configuration
Uses the 540 rpm rear PTO and Category 1 hitch. Confirm the hitch geometry, PTO shaft and any collector controls.
Front hydraulic · keeps the deck on

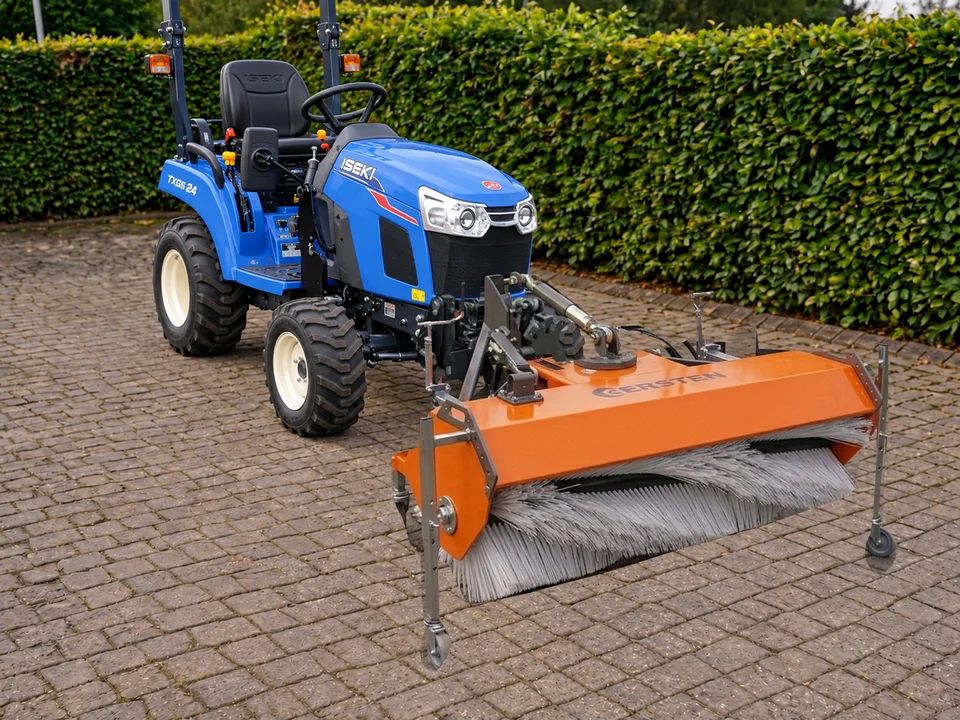

KM 13045 H
130 cm working width · 45 cm brush · 20 l/min
Choose it for front sweeping that keeps the mid mower deck on the tractor, with collection, kerb-edge or dust options.
Our TXG case study runs a KM45 from the tractor’s front hydraulic services. The configurator below shows the complete package.
£3,595.00 ex VAT
Listed product price · check configuration
Sweeper listing only. Front linkage, bracket, hydraulic supply and options are specified around your tractor.
.jpg)
Front PTO · mechanical drive
KM 13045 M
130 cm working width · 45 cm brush · mechanical drive
Choose it for heavier sweeping, where full mechanical power matters more than keeping the mower deck on.
Driven through a 2,000 rpm front PTO kit taken from the mid PTO. The mid mower deck has to come off.
£3,595.00 ex VAT
Listed product price · check configuration
Front linkage, front PTO kit and ABR bracket are additional. Match the gearbox to the PTO speed and rotation before ordering.
Prices are for the linked products, ex VAT, rather than complete fitted tractor packages. Mounting, drive kits, fitting and optional accessories depend on the specification. The enquiry links carry the chosen product into the contact-page message.
TXGS24 front-sweeper configurator
Build a complete KM45 sweeper for your TXGS24.
Add each component to see what it does and why it’s needed, then choose your options and send the build to us.
Bare Iseki TXGS24
Your tractor
Iseki TXGS24
Reference:
Real tractors, real fitting decisions
See how Iseki tractors were equipped.
These examples explain the choices behind each installation. Use them to start the discussion, then confirm the details for your own tractor.
TXG · front hydraulic sweeper
Sweep from the tractor’s own hydraulics
A KM 15045 H with brush guard on a Cat 0 front linkage, driven from the TXG’s front hydraulic services, leaving room for the mid deck.
Read the case study →
TH · rear hydraulic sweeper
Rear sweeping with collection
A rear-mounted KM 52 sweeper with hydraulic drive, dust suppression and a hydraulically emptied collector, plus the front-mounted alternative.
Read the case study →
TG6370 · front weedbrush
Mechanical weed removal
A UB 6080 MH weedbrush on a front linkage and front PTO kit, with the brush controlled from a joystick.
Read the case study →
Kersten sweeper and gully brush on an Iseki
Watch a front-mounted Kersten sweeper with gully brush working on an Iseki SF230 outfront mower.
Watch on YouTube ↗
Watch the HKM40 rear sweeper
An HKM 40 rear sweeper with collector and gully brush clearing moss, clippings and soil. The tractor shown is an example rather than a TXGS.
Watch on YouTube ↗Beyond the sweeping round
Keep the TXGS working all year.
Match the action to the problem: blow loose leaves, treat weeds with heat, renovate gravel, clear snow or cut rougher grass. Each needs its own mounting and power specification.
.jpg)
Leaves & loose organic debris
LBV 6900 M
Mechanical PTO drive · 85 kg blower
Choose it for moving leaves to a planned collection area before they become wet, compacted detritus.

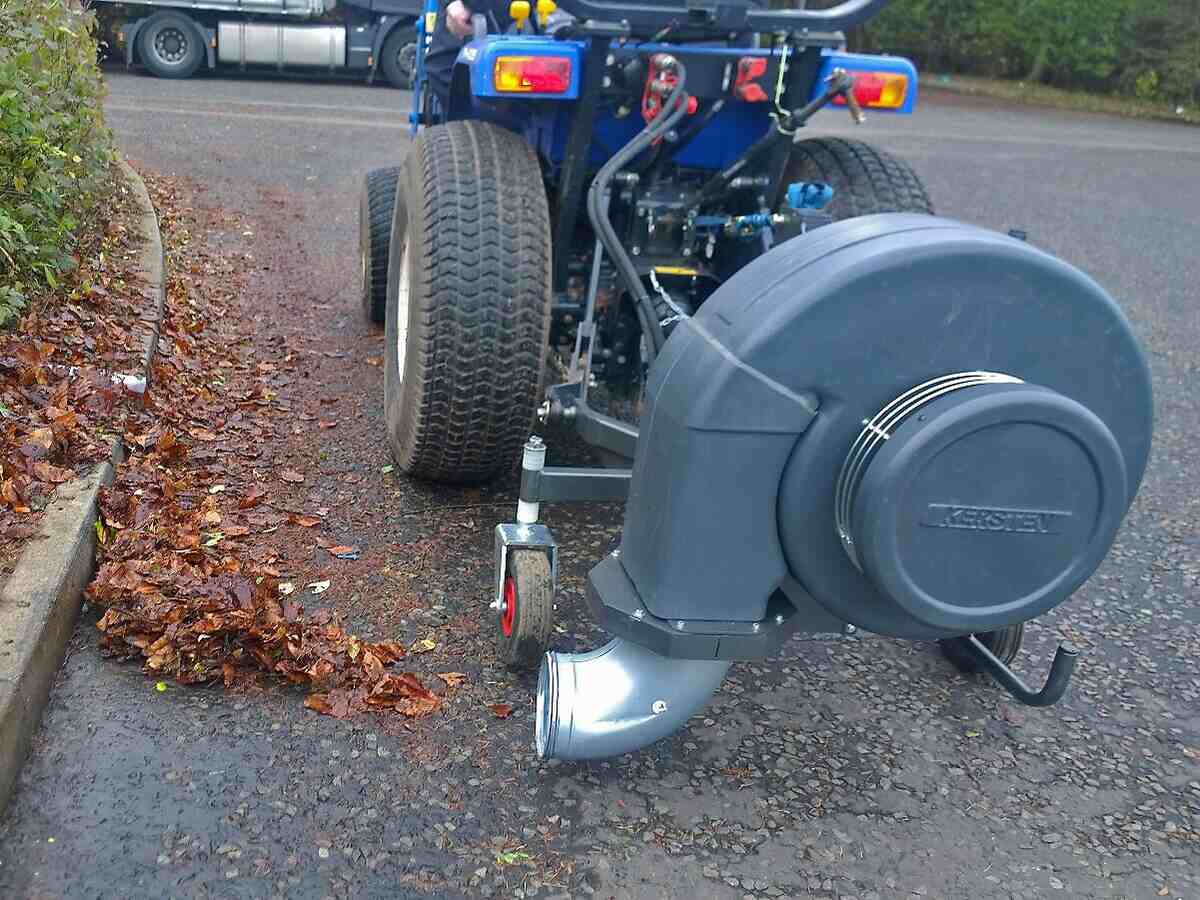

Uses the carrier’s PTO rather than a separate blower engine. Right-hand fixed discharge is standard; the photo shows the hydraulic rotary outlet.
£5,395.00 ex VAT
Listed product price · check configuration
Mounting bracket and a compatible PTO arrangement are additional. Optional hydraulic chute rotation needs a suitable double-acting service.
Thermal weed management
HOAF WeedAir 1002 IB
100 cm working width · propane fuel · 77 kW
Choose it for chemical-free treatment of young weeds and moss on paths, gravel and sandy areas.
Three main burners and two independent side burners. Gas supplies the treatment energy, so no PTO drive is needed.
£11,950.00 ex VAT
Listed product price · check configuration
75 kg before gas. Specify the bracket, gas carrying arrangement and controls, and check the loaded weight against the linkage’s lift capacity.
%20660.jpg)
Rear PTO · gravel renovation
WE 110 M-DP
110 cm working width · CAT 1 / 1N rear linkage
Choose it for restoring unsealed gravel paths rather than sweeping loose stone off the surface.
Counter-rotating tools loosen and level the upper surface. Choose knives, chisels or brush tools around the gravel construction.
£7,295.00 ex VAT
Listed product price · check configuration
Photo shows another carrier. Confirm the TXGS’s Category 1 hitch, 540 kg rear lift, tool set and PTO speed.
Winter · push snow aside
SCHN 13545 FK-ABR
135 cm blade width · 45 cm blade height
Choose it for access routes and car parks where cleared snow can be placed beside the route.
Spring-protected blade, adjustable skids and a replaceable edge. No rotating PTO drive is needed.
£1,650.00 ex VAT
Listed product price · check configuration
Blade listing without ABR bracket. Specify the bracket for your front linkage and the lifting / angling services.
Winter · move snow away
Cerruti L 1200 B
120 cm working width · two-stage design
Choose it when deeper snow or limited room for windrows makes blowing more useful than pushing.
The listing specifies 20–40 hp carriers, with hydraulic chute rotation and deflector adjustment.
£6,350.00 ex VAT
Listed product price · check configuration
Photo shows another carrier. TXGS suitability needs a matched front PTO kit, mounting, lift and hydraulic-control check.
Grass, banks & rough cutting
Rotary & flail mowers
Rear mounted · 540 rpm PTO
Choose a mounted mower for rougher grass, banks and areas the mid deck can’t reach.
Rotary mowers suit regular cutting; flail mowers handle longer, rougher growth and leave a finer finish.
Choose by width and weight to suit the Category 1 hitch and the TXGS’s 540 kg rear lift.
Choose the system before the individual parts
A linkage lifts.
A PTO or hydraulic supply powers.
For most front attachments, the complete installation is:
The linkage provides the lift and coupling. The ABR bracket connects the attachment to that coupling. The drive system provides the working power. Buying one does not automatically provide the others.
Match the bracket to the linkage. Kersten lists a Category 1 A-frame front linkage for the TXG237, and Iseki also supplies a front linkage for the TXG range. The ABR bracket is chosen to suit whichever linkage and A-frame category is fitted.
TXGS24 or TXG23 / TXG237: why the exact model matters
The Kersten front linkage and front PTO kit are listed for the TXG237 / TXG23. The current TXGS24 is the successor model, so fitment of the same kits must be confirmed. Send your model, serial number and photographs so the complete installation can be checked.
1. Rear PTO: avoid a front conversion
The TXGS24 has a 540 rpm rear PTO and a Category 1 three-point hitch with 540 kg lift at the ball ends. The HKM40 rear sweeper, WE gravel renovator and rear mowers work from the back of the tractor.
2. Front hydraulics: keep the mower deck
Our TXG case study runs a KM45 sweeper from the tractor’s front hydraulic services, with room left for the mid deck. The TXGS24’s pump gives 24 l/min; where the oil supply needs to be independent, a rear PTO hydraulic pack adds a dedicated 30 l/min.
3. Front mechanical PTO: maximum power
A 2,000 rpm front PTO kit takes drive forward from the mid PTO. It gives the most power for heavier work, but the mid mower deck has to be removed. Match the attachment’s gearbox, speed and rotation.
Check the lift capacity
Allow for the attachment, bracket, a full collector, water tanks or gas bottles when specifying the complete setup, and confirm the front linkage’s lift capacity for your tractor.
Build the tractor-side installation
Linkage, bracket and power options, explained.
These are the main tractor-side components. Ask us to specify the matching linkage, drive and bracket around your exact TXG or TXGS and attachment.

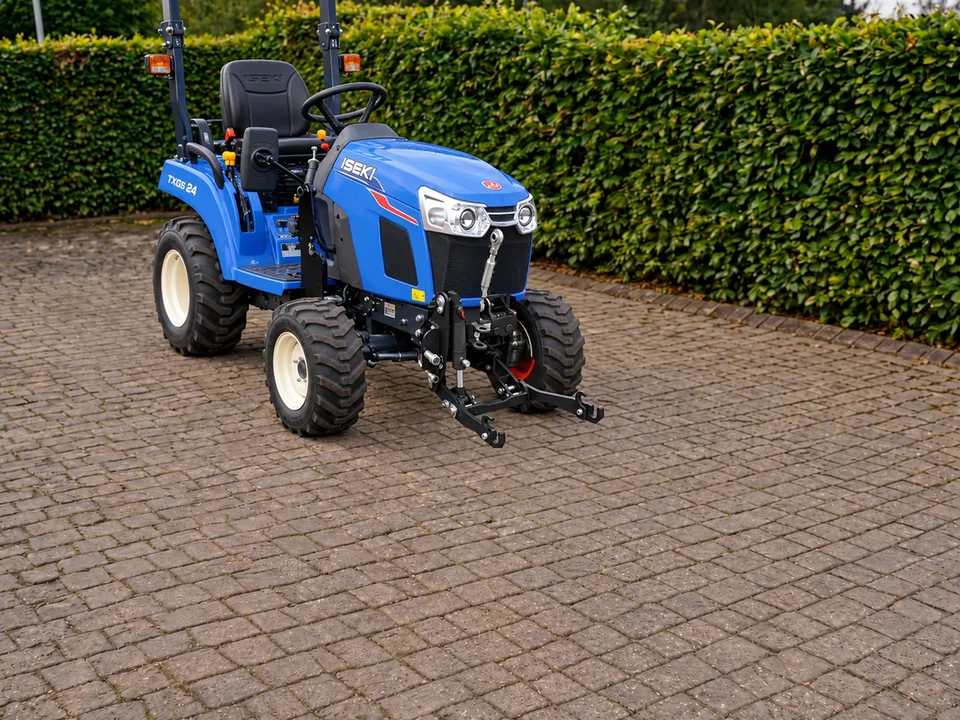

TXG237 front linkage
FL ISEKI TXG 237 -CAT1 A: front linkage with a Category 1 A-frame. Front PTO and front hydraulic outlet kits are optional.
£1,195.00 ex VAT
Listed component price
View fitting component →
Front PTO kit, 2,000 rpm
Item 32.4411 for the TXG23: takes drive forward for mechanically driven front attachments such as the KM 13045 M.
£720.00 ex VAT
Listed component price
View fitting component →
ABR 45 KD bracket
Connects KM45 sweepers to Cat 0 front-linkage A-frames. Give us the linkage details so the right ABR bracket is supplied.
£795.00 ex VAT
Listed component price
View fitting component →
Rear PTO hydraulic pack
MP-HYDR-DP-HECK: an independent 30 l/min circuit at 180 bar, driven by the rear PTO and mounted on the rear linkage.
£3,095.00 ex VAT
Listed component price
View fitting component →A front hydraulic outlet kit for the TXG237 brings the tractor’s hydraulic services to the front. For a rear hydraulic pack, the 5 m front hose extension set is a separate component.
What happens to the material matters.
Questions before you choose
What can a TXG or TXGS do with Kersten attachments?
With a front linkage and the right drive, it becomes a compact tool carrier with lift, lower and angling functions. It can sweep, blow leaves, treat weeds thermally, renovate gravel, clear snow and cut rougher grass, alongside its own mowing deck work.
Tractor hydraulics or a rear PTO hydraulic pack?
Our TXG case study runs a KM45 sweeper from the tractor’s front hydraulic services, which is the most cost-effective route and keeps the mid deck available. The oil volume on these compact tractors is modest, so where a dedicated supply is needed, a rear PTO hydraulic pack gives an independent 30 l/min.
Can I keep the mid mower deck fitted?
Yes, with hydraulic drive or rear-mounted attachments. A front PTO kit takes its drive from the mid PTO, so the deck has to come off for PTO-driven front attachments.
Will kits for the TXG237 fit my TXGS24?
The Kersten front linkage, front PTO and front hydraulic outlet kits are listed for the TXG237 / TXG23. The TXGS24 is the successor, so send your model, serial number and photos and we’ll confirm the right kit.
What warranty do the attachments carry?
Kersten attachments for the Iseki TXG and TXGS series come with a commercial two-year warranty.
What should I send for a quotation?
Send the exact model, year or serial number, photos of the front and rear of the tractor, whether a front linkage is fitted, which hydraulic services you have, and the job and access width. Include any collection, angling or dust-control options you need.
Start with the tractor you already own
Let’s match the complete TXGS setup.
Tell us your tractor and the work you want it to do. We’ll help specify the attachment, linkage, drive, bracket and controls together.
- Exact model and year / serial number
- Front linkage and hydraulic services fitted
- Whether the mid mower deck needs to stay on
- Task, surface, access width and options you need
