PH Mini 130 Grader

Grader PH 130 Mini

Gravel Path Renovator series

Kersten Wholegoods Item Code: HK 01002

£ 11,995.00 GBP (£ 11,995.00 / Piece)

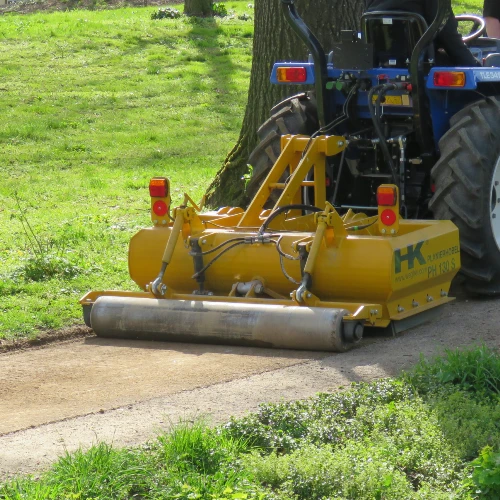

130cm wide Gravel Path Grader

The Kombi Grader is used for the inexpensive, effective maintenance and new construction of water-

bound (compacted) paths, field paths, hiking trails and cycle paths, construction roads or country lanes.

It is suitable for spreading and extracting a wide range of bulk materials such as gravel, crushed

stone, grand, chippings or sand.

Product Overview

The Kombi grader is used for the inexpensive, effective maintenance and new construction of water-bound paths, field paths, hiking trails and cycle paths, construction roads or country lanes. It is perfect for removing potholes, weeding, grading, re-profiling and loosening paths made from a wide range of bulk materials such as gravel, crushed stone, chippings or sand.

Rational path maintenance

When using the grader on water-bound road surfaces, excess or previously deposited material is picked up by the HARDOX scraper bar and carried along in the u-shaped frame of the grader. This material fills existing holes and unevenness, is smoothed out by the rear scraper of the grader and statically compacted by the roller. The path is now leveled and reconsolidated. The machine only takes up as much material as needed, thus saving the use of expensive new material.

Powerful path maintenance

The high hourly output of the HK grader enables powerful, cost-effective use with simple operation. Even heavily used road surfaces can be maintained easily.

Ripper bar

The optional ripper bar fitted with carbide metal chisels loosens up heavily compacted road surfaces. Existing material is thus processed and reinstalled and interlocked with the grader in those places where it is missing. Creating and maintaining the roof profile can be achieved by adjusting the grader body, which can be swiveled around its longitudinal axis, and the distributor blade, which is set at an angle to the direction of travel, allowing an exact roof profile to be created for rapid drainage of surface water.

Mechanical weed control

The grader can do on water-bound surfaces what hot water, steam, infrared and co. cannot do: Sustainable, effective weed control without long set-up times and without the use of chemicals!

  • Working width: 130 cm
  • Weight: 400kg
  • Power requirement: from 35 hp
  • Lateral offset mechanical: option
  • Distribution shield: option
  • trailing roller : standard
  • Ripper Bar : option
  • lighting : standard

Screenshot-2022-06-17-114740.md.jpg Tungsten-carbide-ripper-bar.md.jpg HK-Planierhobel-Mini-400.md.jpg H-K-Planier-Grader.md.jpg

Articles on Gravel Maintenance

Gravel Path Renovation - How to remove weeds in Gravel - Cover Image
Sweeping and Integrated Weed Control
Gravel Path Renovation - How to remove weeds in Gravel

Gravel can look really smart if it is kept in good condition - But how can we tackle th...

Maintaining Gravel Surfaces to Improve Performance - Cover Image
Sweeping and Integrated Weed Control
Maintaining Gravel Surfaces to Improve Performance

In this blog article we look at properly maintaining gravel surfaces to reduce weeds su...

Removing weeds from gravel driveway - Cover Image
Sweeping and Integrated Weed Control
Removing weeds from gravel driveway

Customers approach us when they are at their wits end, faced with paying for a replacem...

Applications

Gravel paths come in many forms, usually particular to different geographic regions where a certain type of stone is available. This presents several different challenges when looking at different types of gravel surface. The main consistent features we are trying to promote are easy drainage through the surface, even distribution of material and reduction of weeds. The Gravel Path Grader helps to deal with all these issues.

“We could be spending up to 20 hours a week removing moss and dirt from the pedestrian areas," explained John, "and it seemed nothing we did made much difference." "I was so impressed, I needed the machine there and then.”
John from Tyne Valley Garden Centre
