Kersten sweeper accessories
Make the sweeper do more than sweep.
Collect heavy debris, clean right into kerbs and gullies, control where material is discharged, or remove light contamination from artificial turf without taking excessive infill with it.
Start with the result you need
What should the sweeper do with the material?
The accessory changes what happens after the main brush has loosened and moved the debris. Choose the outcome you need, then match the accessory to the exact sweeper series and working width.
Collect it as you sweep
Capture soil, moss, sand and other dense material rather than leaving a windrow behind.
Collector boxes ↓
Pull debris out of the edge
Use a side gully brush to move material from kerbs, gullies and wall lines into the path of the main brush.
Gully brushes ↓
Control the discharge
Contain material close to the brush when you want to move debris without collecting it.
Brush guards ↓
Separate light debris from infill
For leaves, twigs and light contamination where retaining more of the sand or rubber infill matters.
Sports separation collectors ↓Why accessories matter
One sweeper can perform very different maintenance jobs.
The main cylindrical brush does the sweeping. The accessory determines whether the material is collected, brought in from an edge, controlled in a windrow, or separated from a sensitive surface.
Reduce repeat passes
Collect or present material to the main brush in the same operation instead of returning for a second manual cleanup.
Get cleaner edges
A gully brush reaches where the main cylindrical brush cannot and draws the debris into the machine's working path.
Change the finish
Choose collection for a clean final pass, or use a brush guard when the priority is controlled windrowing.
Match the surface
Artificial turf can need a different collector principle from hard surfaces because excessive infill removal creates its own maintenance problem.
Collector boxes
Turn sweeping into a collection operation.
Collector boxes sit directly in front of the main brush so swept material is captured as the machine moves forward. Kersten offers sizes across pedestrian, mower-mounted and tractor-mounted sweeper families, with larger systems available with hydraulic emptying.
Choose a collector box when the site needs to be left clean in one pass.
They are particularly useful for dense material such as soil, moss and sand. Height adjustment allows the collector position to be maintained as the main sweeper brush wears.
- Pedestrian and small carrier routes: compact collector boxes sized around the sweeper width.
- Large sweepers: wider boxes with much higher capacities.
- Hydraulic emptying: available on larger sweeper families so the box can be dumped without manual handling.
- Artificial turf: use a sports separation collector when the target is light debris and infill retention.
Standard collection
SSB 125 K — 125 cm Collector Box
PE collector box with caster wheels, height adjustment, handles, sealing lip and locking system.
Choose it when: you need a straightforward 125 cm collection route for compatible sweepers.
Artificial turf

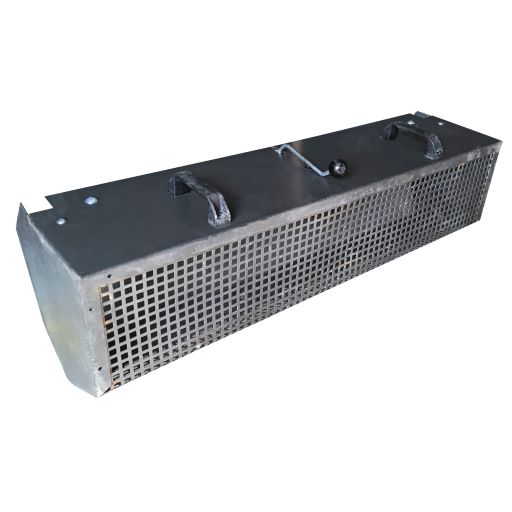

SSB 090 B-KR — 90 cm Sports Separation Collector
Specialist collector for lighter contamination on synthetic surfaces where reducing unwanted infill collection matters.
Choose it when: leaves and twigs need to come off the pitch without treating the surface like a hard-standing area.
Gully and side brushes
Clean the edge before the main brush reaches it.
A side gully brush reaches into gullies, kerb lines and edges, then throws the loosened material into the path of the main sweeper. Kersten offers mechanical and hydraulic versions, with larger left- and right-hand hydraulic options for heavier sweeper families.

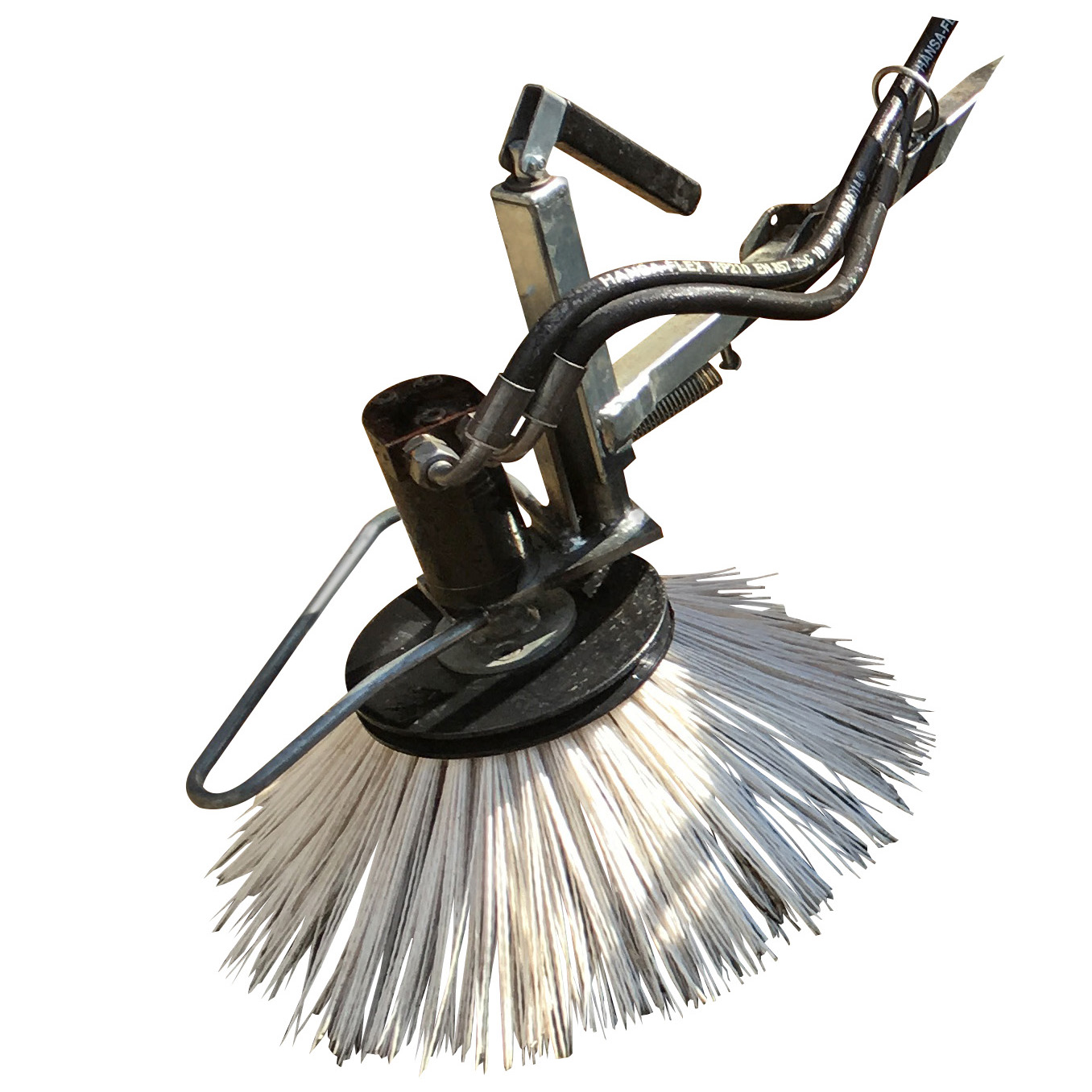

Hydraulic · 40 cm
ASH 403237 Hydraulic Gully Brush
Hydraulic 40 cm side brush with adjustable height and angle, variable speed control, breakaway collision protection and transport position.
Choose it when: controllable brush speed and easier setup are important around kerbs, walls and detailed edges.
Mechanical · 40 cm
ASM 403237 Mechanical Gully Brush
Belt-driven 40 cm side brush for compatible 32 and 37 cm brush-diameter sweepers, with height and angle adjustment and spring-loaded collision protection.
Choose it when: you want the simpler lower-cost mechanically driven route on a compatible sweeper.
Heavy-duty · 70 cm
ASH 7060 L Hydraulic Gully Brush
Left-hand 70 cm hydraulic gully brush with variable speed, spring-loaded collision protection, storage position and mounting plate.
Choose it when: a larger KM/FKM 60-series sweeper needs more reach and output at the edge.
Brush and debris guards
Move material without throwing it across the site.
A front brush guard is the alternative to a collector box when the objective is controlled windrowing. It contains debris close to the brush and lets the material drop immediately in front of the sweeper rather than being thrown forwards.
100 cm · 37 cm sweeper family
GUSPL 100 Front Brush Guard
100 cm front guard for compatible 37 cm brush-diameter sweepers.
Choose it when: you are moving heavy soil, snow or loose debris and want to control spray rather than collect it.
125 cm · HKM
SPA 125 Front Brush Guard
125 cm guard for the HKM rear-mounted sweeper family, designed to control debris discharge where no collector box is fitted.
Choose it when: the job needs the material moved and contained, but not picked up.
Compatibility first
Match the accessory to the sweeper — not just the working width.
Accessory fitment varies by sweeper chassis, brush diameter, drive type and width. A 125 cm collector for one sweeper family is not automatically the correct 125 cm collector for another.
| Sweeper family | Typical accessory routes | What to confirm | Best next step |
|---|---|---|---|
| EFKM K-Series | Collector box, sports separation collector, hydraulic gully brush, brush guard | 90 / 100 cm width, 32 / 37 cm brush diameter, K-Series carrier | Collector options / Gully brushes |
| EFKM UBS | Collector box, sports separation collector, mechanical gully brush, debris guard | Sweeper width, mechanical-drive arrangement and UBS carrier | Start with the sweeper |
| FKDR / FKM 37 | Collector boxes, brush guards, mechanical or hydraulic gully brushes | Mounting arrangement, sweeper width and available hydraulic service | Check compatibility |
| HKM / FKM 40 | Collector boxes, brush guards and side-brush options | Front/rear mounting, PTO/hydraulic drive and exact sweeper model | Ask us to specify it |
| KM 45 / 52 / 60 / 70 | Large collector boxes, hydraulic gully brushes, brush guards, dust suppression | Working width, brush diameter, hydraulic services and left/right side-brush requirement | Browse large collectors |
Not sure which version fits?
Give us the sweeper model and the job you want it to do.
We can help match the correct collector box, gully brush, brush guard or sports separation collector to the exact sweeper family and working width.
