Attachments for New Holland compact tractors
Make more of
your New Holland.
Sweep hard surfaces, reclaim path edges, manage grass and prepare for winter. Build the right attachment system around your New Holland Boomer.
Start with your carrier
Which New Holland do you have?
Start with the full model and generation. The linkage category, PTO arrangement and usable hydraulic flow determine which attachment system can be fitted.
Boomer 20 / 25
Explore the CAT 0 front-linkage and PTO route.
Find attachments →
Boomer 25C
Check the 25C installation independently of the Boomer 25.
Find attachments →
Boomer 35 / 40
Compare CAT 0 or CAT 1 A-frame and matched front-drive options.
Find attachments →
Boomer 45 / 50 / 55
Match the attachment, lifting capacity and drive to your exact model.
Find attachments →Have a Boomer 30, 35 or 40? The existing 30–35 route now describes Boomer 35/40 equipment. For an older model, send its year or serial number before choosing a kit. The blue brand badges identify the New Holland fitting routes; confirm your exact model before ordering.
Check your New Holland model →Choose the job, then confirm the fit
Attachments for a longer working year.
Compare these individual products as starting points for a New Holland quotation. Each installation needs a check of the exact tractor, mounting, power and controls.
Sweep and collect
Choose the mounting position, brush width and drive around your access routes and existing tractor equipment.
Rear PTO sweeping
HKM 12540 M
Use the rear linkage and PTO to sweep paths, yards and car parks without adding a powered front installation.
Choose it when: A compact rear sweeper suits your routes and tractor.
- Working width
- 125 cm
- Brush diameter
- 40 cm
- Drive
- 540 rpm PTO
- Mounting
- Rear Category I
Confirm rear-linkage geometry, PTO shaft and operating weight. Collector and gully brush are options.
View attachment →
Front mechanical sweeping
KM 13045 M
Keep the brush ahead of the tyres and watch the working edge while following paths and kerbs.
Choose it when: You need 1.3 m coverage and a correctly matched front PTO.
- Working width
- 130 cm
- Brush diameter
- 45 cm
- Drive
- Mechanical PTO
- Mounting
- Matched ABR 45 bracket
Linked from the Boomer 25 page. Specify the correct PTO speed, rotation and gearbox, plus linkage, bracket and collector.
View attachment →
Front hydraulic sweeping
KM 15045 H
A wider front brush for larger cleaning routes, with collection and edge-cleaning options.
Choose it when: Your tractor has an approved continuous hydraulic supply for the brush.
- Working width
- 150 cm
- Brush diameter
- 45 cm
- Required oil flow
- 20 l/min
- Mounting
- Matched ABR 45 bracket
Check usable implement flow, pressure, return connection and cooling. Collector opening and angling may need additional services.
View attachment →
Larger-diameter hydraulic brush
KM 15052 H
A 52 cm brush offers a different sweeping configuration, with front or rear mounting arrangements available.
Choose it when: The larger brush and a verified hydraulic supply suit your site.
- Working width
- 150 cm
- Brush diameter
- 52 cm
- Required oil flow
- 30 l/min
- Mounting
- Matched ABR 52 frame
Specify front or rear installation explicitly. Rear use needs the appropriate rear mounting frame; confirm lift capacity with the full collector load.
View attachment →Reclaim edges and renovate gravel
A weedbrush loosens established material on suitable hard surfaces. A renovator works within the gravel surface layer.
%20660.jpg)
Mechanical weed management
UB 6080 MH
Actively brush established vegetation and compacted detritus from suitable kerb lines and hard-surface edges.
Choose it when: A sweeper alone cannot loosen the established material.
- Brush plate
- 60 / 80 cm
- Drive
- Mechanical PTO
- System
- Integrated hydraulics
- Listed carrier range
- 30–60 hp
Confirm PTO and carrier suitability. Mounting frame, brush plate and controls must be specified. Sweep up the loosened arisings afterwards.
View attachment →%20660.jpg)
Gravel-path renovation
WE 110 M-DP
Counter-rotating tools loosen the upper gravel layer and disturb weeds while following a controlled working depth.
Choose it when: You need to renovate an unsealed surface rather than sweep it.
- Working width
- 110 cm
- Drive
- Mechanical PTO
- Mounting
- Rear CAT 1 / CAT 1N
- Tool action
- Counter-rotating
Confirm PTO speed, shaft and tool configuration. Keep the working depth within the surface layer to protect the underlying base.
View attachment →Move autumn leaves
Plan the material destination before choosing blowing over collection.
PTO leaf blower
LBV 6900 M-ABR
Move leaves towards a planned collection point without repeatedly stopping to empty a sweeper box.
Choose it when: Your site has a suitable destination for blown material.
- Air output
- 140 m³/min theoretical
- Listed reach
- Approx. 12 m
- Drive
- Mechanical PTO
- Mounting
- Matched ABR-LBV bracket
Check PTO speed, direction, gearing and mounting. This blower relocates leaves; collection remains a separate operation.
View attachment →Cut grass with a visible front deck
Choose the mowing configuration around the finish, discharge method and drive available.

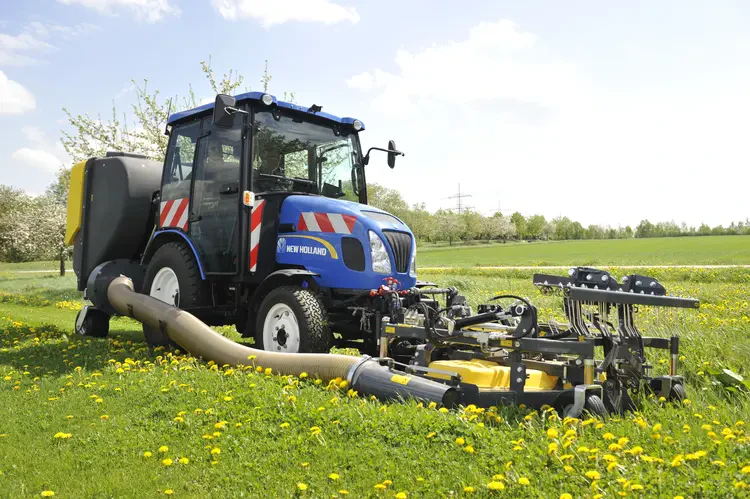

Front rotary mowing
Matev MOW-H/M 160
Keep the cutting deck ahead of the tractor for visible mowing around lawns, verges and maintained grounds.
Choose it when: A front rotary deck suits the finish and mowing routes you need.
- Cutting width
- 157 cm
- Selected version
- Fixed frame · side discharge
- Cutting height
- 28–119 mm
- Part number
- 1318635-8642
Confirm the mounting category and selected drive. Mechanical 1000/2000 rpm and hydraulic configurations differ; collection needs a separately matched system.
View attachment →Keep winter access open
Plan where displaced snow will go, then match the blade and controls to the tractor.
Compact-tractor snow clearance
SCHN 13060 FK-ABR
Push snow to a planned storage area with a 1.3 m blade and spring protection.
Choose it when: Your access routes allow pushing snow aside.
- Blade width
- 130 cm
- Protection
- Spring break-back
- Mounting
- Matched ABR bracket
- Task
- Snow ploughing
Bracket is excluded from the listing. Confirm the complete front linkage, hydraulic controls, blade clearance and carrier loading.
View attachment →Quote the complete working system. Prices are for individual listings, not complete New Holland installations. Linkage, PTO kit, bracket, shaft, controller, collector and accessories may be additional. Product photographs show the relevant equipment, sometimes fitted to another carrier; they do not establish New Holland compatibility.
Get the connection right
Carrying the tool and powering it are different jobs.
Carry and lift the attachment
The front linkage carries the tool and raises it for transport. Select the correct kit and A-frame category for the model, generation, load and attachment geometry.
Provide the right drive
A linkage does not provide implement power. Mechanical tools need the correct PTO speed, rotation and shaft; hydraulic tools need suitable continuous flow, pressure, return and cooling.
Connect the working tool
Most Kersten front tools need a matched attachment bracket, frequently with an ABR code. The bracket connects the tool to the linkage; specify lift, angling and collector controls together.
Use the right starting point
Match the system to your Boomer.
| Your carrier | Fitting route to investigate | Check before ordering |
|---|---|---|
| Boomer 20 / 25 | CAT 0 front-linkage and PTO route. | Exact model and generation, linkage kit, PTO configuration and complete operating weight. |
| Boomer 25C | Separate CAT 0 front-linkage and PTO route. | Confirm the 25C-specific installation; do not substitute a Boomer 25 kit by name alone. |
| Boomer 35 / 40 | The existing 30–35 route describes CAT 0 or CAT 1 A-frame options. | Check older 30/35 models separately and confirm PTO source, speed, rotation and controls. |
| Boomer 40 | A separate model page describes a CAT 1 front-linkage route. | Establish the tractor generation and actual linkage before selecting the attachment bracket. |
| Boomer 45 / 50 / 55 | Front linkage and matched PTO or hydraulic attachments. | Full attachment load, lift geometry, axle loading, usable hydraulic flow and power demand. |
Send the model, not just the badge. Include the year or serial number, photos of mounting points, PTO and hydraulic couplings, plus your task and access width.
Match the method to the surface
What does your site need?
Routine sweeping
Remove loose soil, leaves and detritus before they accumulate along edges and drainage routes. Add collection when the material needs to leave the surface.
Path-edge reclamation
Use active weedbrushing for established vegetation and overburden, then sweep up the loosened material. Choose brush tools and settings around the surface.
Artificial-surface care
Routine grooming and infill redistribution, active agitation and contamination removal are different tasks. Choose the brush and collection method for the surface and its infill.
Gravel renovation
Loosen the surface layer and disturb weeds with the right renovation tools. Set depth to avoid disturbing the base; grading is a separate material-shaping job.
Autumn leaves
Blowing is useful where leaves can be directed to an agreed collection point. Choose sweeping and collection when material needs to be picked up in the same pass.
Winter access
A plough pushes snow; a snow blower projects it. Plan storage or discharge space, then consider spreading equipment for the separate job of ice management.
Plan the complete installation
Useful guides for your next attachment.
Explore the New Holland mounting options, grass-management guidance and the wider mounted range before finalising your specification.
.webp)

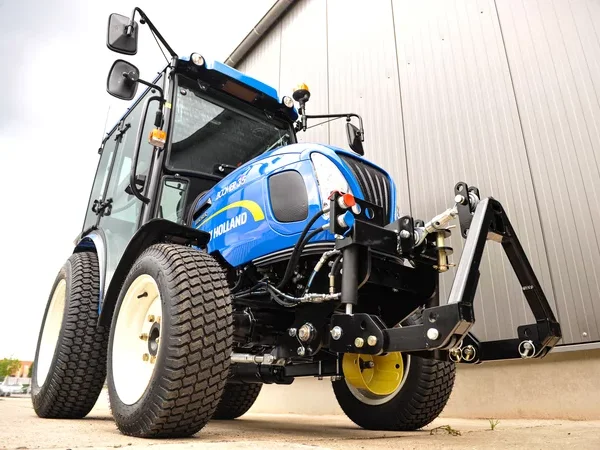

New Holland fitting
Start with the front connection
Explore the linkage and PTO range, then confirm the exact tractor and attachment interface.
View New Holland linkage options →
Grass-surface management
Choose the mowing outcome
Consider the cut, clippings and maintenance programme together when choosing mowing and collection equipment.
Read the Kersten article →
Mounted equipment
Compare the whole working system
Use the mounted-equipment catalogue to compare tools, mounting arrangements and options. Request current pricing for the final package.
Open the mounted catalogue →Check the model-specific route. For the separate Boomer 40 installation guidance, see the Boomer 40 attachment page →.
Before ordering
Your New Holland attachment questions answered.
Will an attachment fit every New Holland Boomer?
No. Confirm the full model, generation or serial number, mounting category, available drive and controls. Tractor size alone does not establish compatibility.
Are Boomer 25 and Boomer 25C the same fitting route?
Treat them separately. Kersten has individual pages for the Boomer 25 and 25C. Confirm the exact model before selecting a front-linkage or PTO kit.
Why does the 30–35 route mention Boomer 35/40?
The existing route now carries Boomer 35/40 content. If you have an older Boomer 30 or 35, send the year or serial number so the correct installation can be checked.
Does the attachment bolt straight to the front linkage?
Most Kersten front attachments require a matched mounting bracket, frequently beginning ABR. The front linkage carries and lifts the system; the bracket provides the attachment connection. Powered tools also need the correct drive.
How do I choose between mechanical PTO and hydraulic drive?
Mechanical drive needs matching PTO speed, rotation, gearing and shaft geometry. Hydraulic drive needs adequate continuous implement flow, pressure, a suitable return and cooling. Check the usable flow available to the tool rather than relying on total tractor pump output.
Should I choose a sweeper or weedbrush?
Use a sweeper for routine loose-debris removal and collection. Use a weedbrush to loosen established vegetation and compacted edge material on suitable surfaces, then remove the arisings. Select the brush tools and settings around the surface.
Can I mow and collect in one operation?
A suitable mower, suction arrangement and collector can form a cut-and-collect system. The fixed-frame side-discharge mower listed here is not a complete collection package; specify discharge, drive, mounting and collecting equipment together.
Are the prices complete fitted-system prices?
No. The shown prices are individual product listings excluding VAT. Linkage, bracket, PTO kit, shaft, controls and options may be additional. Live prices refresh on kerstenuk.com; checked fallback prices remain if the update fails.
What do you need for a quotation?
Send the full tractor model, year or serial number and photographs of the mounting points, PTO and hydraulic couplings. Include the maintenance task, surface, access width and any equipment you want to keep fitted.
Specify a complete working system
What else could your New Holland do?
Tell us the model, maintenance task and site conditions. We’ll help match the attachment, linkage, mounting bracket, drive and controls to your tractor.
