Product Overview

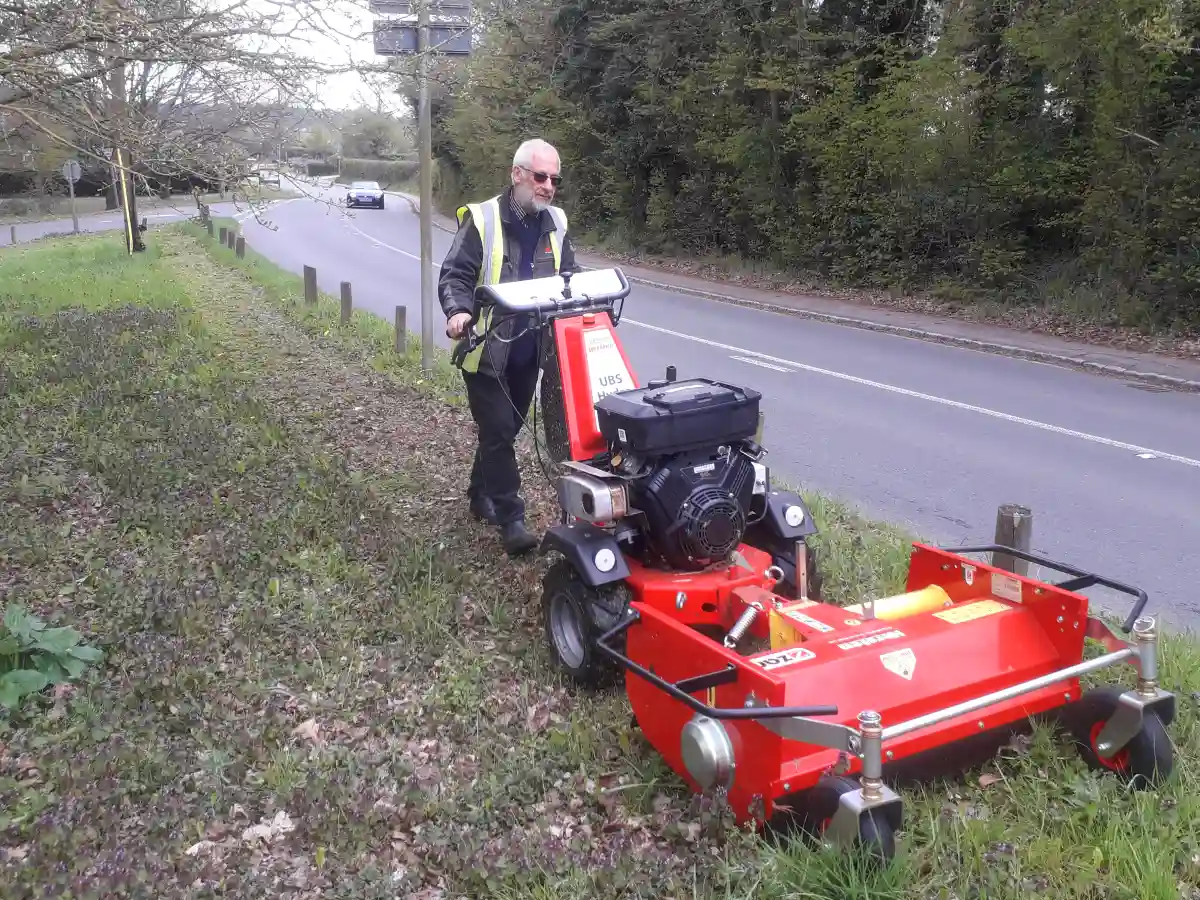

TSM 60cm Flail Mower
The TSM 600 Flail Mower is a compact, heavy-duty knife mulcher designed for use with cultivators up to 11 HP. It’s ideal for mulching grass and pruning waste in fruit and vegetable gardens, vineyards, nurseries, and sloped terrain. Lightweight yet robust, it offers reliable performance with minimal maintenance.
60 cm
7–11 HP
Y-flails
88 kg
Technical Specifications
| Specification | Details |
|---|---|
| Model | TSM 600 |
| Working Width | 60 cm |
| Diementions(W x L x H cm) | 96 x 96 x 40 cm |
| Power Requirement | 7–11 HP |
| Blades requirement | Y type blades; require 18 blades per mower |
| Rotor Speed | 800–1000 rpm |
| Drive | Twin V-belt drive with tension adjustment |
| Weight | 88 kg |
Features
- Helical rotor with hardened steel knives for effective mulching of grass and prunings.
- Self-locking bolts ensure blade security and operator safety.
- Adjustable, pivoting cultivator mount with freewheel and safety bolt.
- Adjustable front wheels for enhanced manoeuvrability on sloped terrain.
- Front protection rubber and rear discharge for safe operation.
- Minimal maintenance required – ideal for long-term, reliable performance.
Compatible Two Wheel Tractor
Required Blades
Requires 18 per flail mower
Applications
Flail Mowing
Groundcare professionals are coming under more and more pressure to deliver a great finish with less annual cuts. With many types of mower, reducing the cuts results in clumps. Flail mowers allow you to mulch the grass finely and drops the grass more evenly, leaving a better finish in these applications. Flails will also allow you to mow more dense material and vegetation such as brambles, thistles and other weeds.

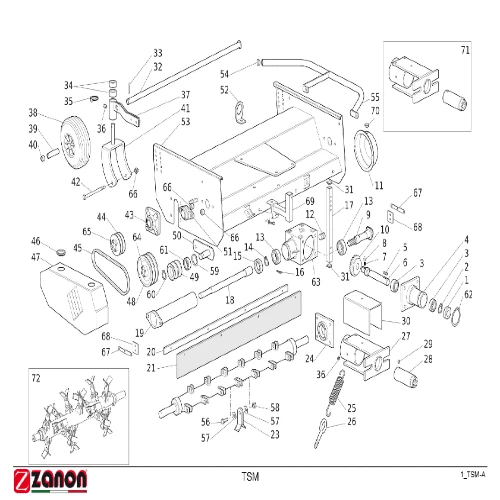

Instruction Manual and Spare Parts List
