Kubota BX231 sweeper configurator
Configure a KM45 sweeper for your Kubota BX231
Explore the equipment your BX231 needs, see how each component fits, then choose the accessories that suit your sweeping work.
Build your setup
See your BX231 become a complete sweeper
Use the arrow on the image to add each component. Once the KM45 is fitted, choose the accessories that suit your work.
Bare Kubota BX231
What is included
Necessary equipment, sweeper and accessories
See what powers the sweeper, what connects it to the tractor and which accessories can be added for different jobs.
Make the tractor attachment-ready
- Rear PTO hydraulic power pack
- Front hydraulic hose extension set
- Kersten Category K front linkage
- ABR 45 KD sweeper bracket
Add the working attachment
- KM 13045 H hydraulic sweeper
- 130 cm working width
- 45 cm five-row spiral brush
- Powered by the independent hydraulic circuit
Adapt it to the task
- Collector box
- Hydraulic gully brush
- Dust-suppression system
- Front brush guard
How it fits together
From tractor power to a working KM45 sweeper
The rear PTO supplies an independent hydraulic circuit, the Category K linkage provides lift and the ABR 45 KD bracket connects the KM45 to the tractor.
Kubota BX231
The tractor supplies the carrier, rear PTO and chassis mounting points.
Power pack and hoses
The dedicated rear PTO pack provides the oil flow needed by the sweeper and routes it to the front.
Category K linkage
Kersten's compact Category K interface provides lift, lower and the tractor-side quick-attach frame.
ABR 45 KD
The sweeper-side bracket sits between the Category K linkage and the KM45, allowing the sweeper platform to use different carrier interfaces.
KM 13045 H
The 130 cm hydraulic sweeper provides the main brushing action for open sweeping or use with selected accessories.
Configure the task
Add collection, edge-cleaning, dust-control or guard equipment as required.
Real Kersten product details
See the hardware behind the illustrated build
These supporting photographs come from the Kersten UK pages for the Kubota BX linkage, KM45 sweeper and the hydraulic equipment used to create the complete package.
Kubota BX platform
A compact carrier built into a complete Kersten system
The illustrations show the complete package clearly, while the photographs below help you recognise the linkage, hydraulic pack, brush construction and optional working equipment.

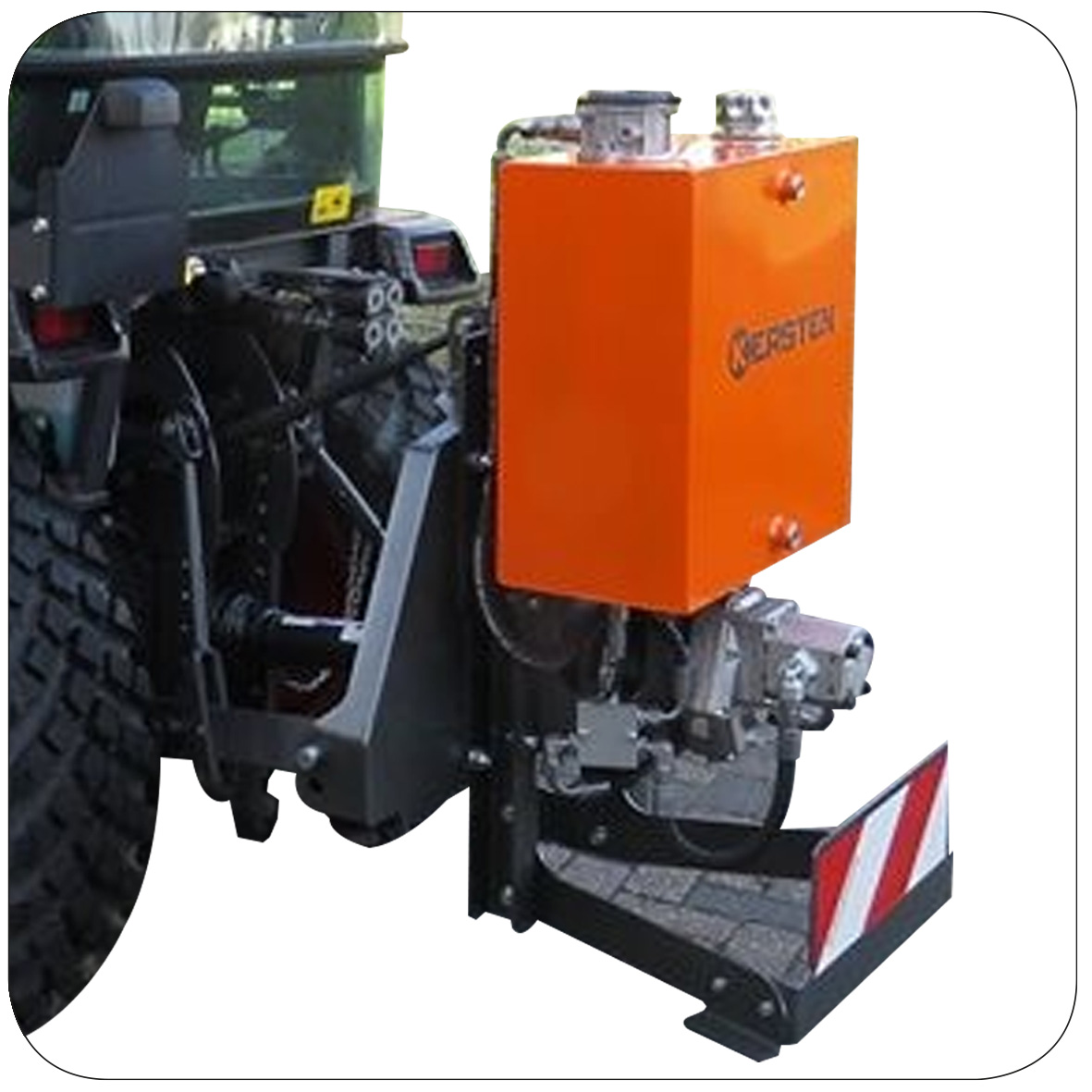

Explore Kubota BX attachmentsRear PTO hydraulic power pack
Creates the independent hydraulic supply required for the KM 13045 H.
View product →Kubota BX front linkage
Shows the tractor-side lift and quick-attachment hardware.
View linkage →Open sweeping configuration
See the full 45 cm brush, gauge wheels and compact front-mounted frame in context.
View KM 13045 H →Collector box
Collects the swept material instead of leaving a windrow beside the machine.
See compatible accessories →
Dust suppression
Water application helps bind fine dust on dry paved and hard-surface sites.
See KM45 options →Front brush guard
Contains debris close to the brush when the sweeper is used without a collector.
See KM45 options →Kubota BX case-study imagery
A real BX installation context
Kersten's BX2350 case study explains that a KM45 requires more hydraulic power than the tractor supplies as standard, so the PTO hydraulic pack, hose extension and ABR 45 KD-M are added to the package.
Read the Kubota BX case study
Technical confirmation
Send the completed build to Kersten
The exact tractor variant, PTO specification, Category K linkage, ABR bracket, hydraulic routing, lifting capacity and selected accessories are checked before quotation or supply.
Illustrative configuration
The images show the main equipment and accessory combinations. Final installation details remain subject to Kersten UK technical confirmation.
Configuration enquiry
Frequently asked questions
Choosing the right BX231 sweeper setup
Why does the BX231 need a separate hydraulic power pack?
The KM 13045 H needs more hydraulic oil flow than the BX231's standard supply provides for this application. The rear PTO-driven pack creates a dedicated hydraulic circuit and sends the oil to the front through the hose-extension set.
What is Kersten Category K?
Category K is Kersten's compact front-linkage and quick-attach size. On this package it is the tractor-side lift and attachment interface.
Why is the ABR 45 KD bracket separate from the linkage?
The ABR bracket is the sweeper-side adaptor. It sits between the tractor linkage and the KM45 sweeper, allowing the same sweeper platform to be matched to different linkage or lift-arm systems by using the appropriate bracket.
Are the collector, gully brush and dust system optional?
Yes. These accessories change how the KM45 handles debris and dust. The hydraulic power pack, Category K linkage, ABR bracket and sweeper remain part of the core BX231 setup.
Can I order the complete setup directly online?
The complete package should be technically confirmed and quoted because tractor, hydraulic, capacity and installation details can vary.
Configure the right sweeping setup for your BX231
Explore the necessary equipment, choose your KM45 accessories and send your selection to Kersten for technical confirmation and a quotation.
