Attachments for Kioti compact tractors
Make more of
your Kioti.
Sweep paths and car parks, reclaim overgrown edges and prepare for winter. Match the tool, mounting and drive to your Kioti tractor.
Start with your carrier
Which Kioti do you have?
Start with your carrier family. WD1260 outfront machines, CS sub-compacts and CK compact tractors use different mounting and power arrangements.
WD1260
Explore the CAT 0 front-linkage route and matched PTO or hydraulic attachments.
Find attachments →
CS Series
Compare front-linkage and rear-linkage options around your exact model.
Find attachments →
CK Series
See front hydraulic and rear PTO sweeping installations on CK tractors.
Find attachments →Another Kioti model?
Have a CX2510, newer CK or another model? Send the full details and photographs of the connections.
Check your KiotiModel and generation matter. The Kioti linkage range also lists selected CK2810/3310, CX2510 and CK4030/5030 systems. Check the exact kit and power arrangement before choosing an attachment.
Explore Kioti linkage options →Choose the job, then confirm the fit
Attachments for a longer working year.
Compare these individual products as starting points for a Kioti quotation. Each installation needs a check of the exact tractor, mounting, power and controls.
Sweep and collect
Choose the mounting position, brush width and drive around your access routes and existing tractor equipment.
Rear PTO sweeping
HKM 12540 M
Use the rear linkage and PTO to sweep paths, yards and car parks without adding a powered front installation.
Choose it when: A compact rear sweeper suits your routes and tractor.
- Working width
- 125 cm
- Brush diameter
- 40 cm
- Drive
- 540 rpm PTO
- Mounting
- Rear Category I
Confirm rear-linkage geometry, PTO shaft and operating weight. Collector and gully brush are options.
View attachment →
Wider rear PTO sweeping
HKM 15040 M
Cover a wider route using a rear-mounted brush, with collection and hydraulic emptying options.
Choose it when: A 1.5 m rear brush suits your routes and tractor.
- Working width
- 150 cm
- Brush diameter
- 40 cm
- Drive
- 540 rpm PTO
- Mounting
- Rear Category I
The CK2630 case study uses this model with a collector and hydraulic opening. Confirm rear-linkage geometry, PTO shaft and the complete working load.
View attachment →
Front mechanical sweeping
KM 13045 M
Keep the brush ahead of the tyres and watch the working edge while following paths and kerbs.
Choose it when: You need 1.3 m coverage and a correctly matched front PTO.
- Working width
- 130 cm
- Brush diameter
- 45 cm
- Drive
- Mechanical PTO
- Mounting
- Matched ABR 45 bracket
Confirm the model-specific linkage, front PTO speed, direction, shaft and ABR bracket. Collector and gully brush are options.
View attachment →
Front hydraulic sweeping
KM 15045 H
A wider front brush for larger cleaning routes, with collection and edge-cleaning options.
Choose it when: Your tractor has an approved continuous hydraulic supply for the brush.
- Working width
- 150 cm
- Brush diameter
- 45 cm
- Required oil flow
- 20 l/min
- Mounting
- Matched ABR 45 bracket
CK35 case-study route: front CAT 0 linkage, matched ABR bracket, collector and gully brush. Verify hydraulic flow and the complete load for your exact tractor.
View attachment →Reclaim edges and renovate gravel
A weedbrush loosens established material on suitable hard surfaces. A renovator works within the gravel surface layer.
%20660.jpg)
Mechanical weed management
UB 6080 MH
Actively brush established vegetation and compacted detritus from suitable kerb lines and hard-surface edges.
Choose it when: A sweeper alone cannot loosen the established material.
- Brush plate
- 60 / 80 cm
- Drive
- Mechanical PTO
- System
- Integrated hydraulics
- Listed carrier range
- 30–60 hp
Confirm PTO and carrier suitability. Mounting frame, brush plate and controls must be specified. Sweep up the loosened arisings afterwards.
View attachment →%20660.jpg)
Gravel-path renovation
WE 110 M-DP
Counter-rotating tools loosen the upper gravel layer and disturb weeds while following a controlled working depth.
Choose it when: You need to renovate an unsealed surface rather than sweep it.
- Working width
- 110 cm
- Drive
- Mechanical PTO
- Mounting
- Rear CAT 1 / CAT 1N
- Tool action
- Counter-rotating
Confirm PTO speed, shaft and tool configuration. Keep the working depth within the surface layer to protect the underlying base.
View attachment →Move autumn leaves
Plan the material destination before choosing blowing over collection.
PTO leaf blower
LBV 6900 M-ABR
Move leaves towards a planned collection point without repeatedly stopping to empty a sweeper box.
Choose it when: Your site has a suitable destination for blown material.
- Air output
- 140 m³/min theoretical
- Listed reach
- Approx. 12 m
- Drive
- Mechanical PTO
- Mounting
- Matched ABR-LBV bracket
Check PTO speed, direction, gearing and mounting. This blower relocates leaves; collection remains a separate operation.
View attachment →Keep winter access open
Plan where displaced snow will go, then match the blade and controls to the tractor.
Compact-tractor snow clearance
SCHN 13060 FK-ABR
Push snow to a planned storage area with a 1.3 m blade and spring protection.
Choose it when: Your access routes allow pushing snow aside.
- Blade width
- 130 cm
- Protection
- Spring break-back
- Mounting
- Matched ABR bracket
- Task
- Snow ploughing
Bracket is excluded from the listing. Confirm the complete front linkage, hydraulic controls, blade clearance and carrier loading.
View attachment →Quote the complete working system. These are individual listing prices, not complete Kioti installations. Linkage, PTO kit, bracket, shaft, collector, controls and working accessories may be additional. Photographs show the relevant equipment, sometimes on another carrier; confirm fitment to your exact Kioti before ordering.
Get the connection right
Carrying the tool and powering it are different jobs.
Carry and lift the attachment
The front linkage carries the tool and raises it for transport. Select the correct kit and A-frame category for the model, generation, load and attachment geometry.
Provide the right drive
A linkage does not provide implement power. Mechanical tools need the correct PTO speed, rotation and shaft; hydraulic tools need suitable continuous flow, pressure, return and cooling.
Connect the working tool
Most Kersten front tools need a matched attachment bracket, frequently with an ABR code. The bracket connects the tool to the linkage; specify lift, angling and collector controls together.
Use the right starting point
What changes between Kioti families?
| Your carrier | Fitting route to investigate | Check before ordering |
|---|---|---|
| WD1260 | Front CAT 0 linkage and PTO-kit route. | Existing carrier connection, drive speed and rotation, lift capacity and attachment bracket. |
| CS Series | CAT 0 front-linkage and PTO options, plus rear-linkage tools. | Exact tractor generation, available PTO, linkage geometry and complete operating weight. |
| CK Series | Front CAT 0 or CAT 1 configurations; front hydraulic and rear PTO sweeping examples. | Continuous hydraulic supply, PTO arrangement, controls and the full load with collector fitted. |
| Selected CK / CX models | The linkage range lists CK2810/3310, CX2510 and CK4030/5030. | Kit-specific fitment; do not apply these newer model listings automatically to an older CK35. |
Send the model, not just the badge. Include the year or serial number, photos of mounting points, PTO and hydraulic couplings, plus your task and access width.
Match the method to the surface
What does your site need?
Routine sweeping
Remove loose soil, leaves and detritus before they accumulate along edges and drainage routes. Add collection when the material needs to leave the surface.
Path-edge reclamation
Use active weedbrushing for established vegetation and overburden, then sweep up the loosened material. Choose brush tools and settings around the surface.
Artificial-surface care
Routine grooming and infill redistribution, active agitation and contamination removal are different tasks. Choose the brush and collection method for the surface and its infill.
Gravel renovation
Loosen the surface layer and disturb weeds with the right renovation tools. Set depth to avoid disturbing the base; grading is a separate material-shaping job.
Autumn leaves
Blowing is useful where leaves can be directed to an agreed collection point. Choose sweeping and collection when material needs to be picked up in the same pass.
Winter access
A plough pushes snow; a snow blower projects it. Plan storage or discharge space, then consider spreading equipment for the separate job of ice management.
See the working systems
Two ways to put a Kioti CK to work.
These installations show the choices behind front hydraulic sweeping and rear PTO sweeping. Use them to discuss a matched system for your tractor.

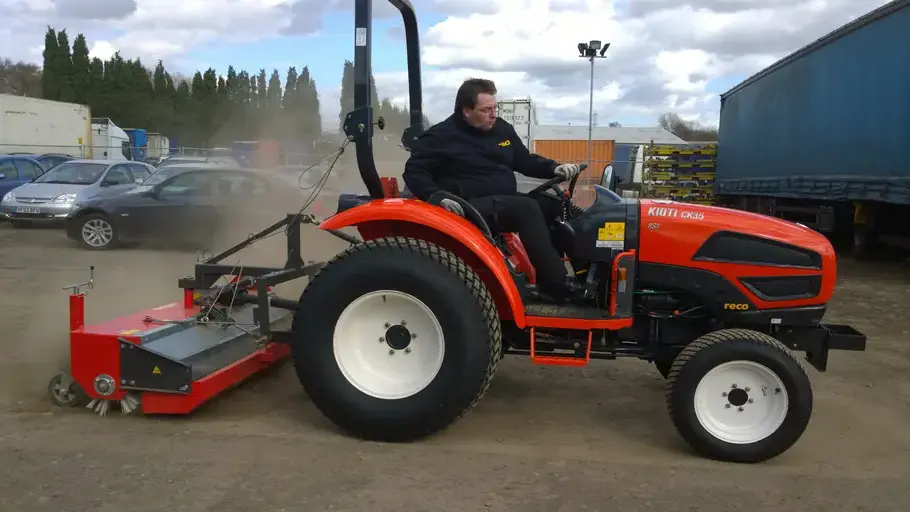

CK35 · front hydraulic sweeping
See the brush before the tyres pass
The KM 15045 H installation combines a front linkage, ABR bracket, collector and gully brush. Manual brush angling was selected for this collection setup.
Read the front-sweeper case study →

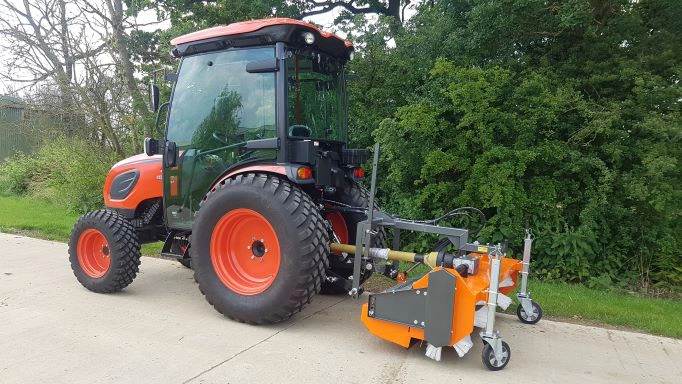

CK2630 · rear PTO sweeping
Start with the rear linkage and PTO
The rear installation uses an HKM 15040 M, collector box and hydraulic collector opening. Compare that arrangement with manual emptying and optional hydraulic angling.
Read the rear-sweeper case study →Keep artificial-surface care task-specific. Routine grooming, infill redistribution and contamination removal are different jobs. See Kersten’s hockey-pitch moss-removal example →.
Before ordering
Your Kioti attachment questions answered.
Will an attachment fit every Kioti in the same series?
No. Confirm the full model, year or serial number, mounting points, drive and hydraulic equipment. A case study demonstrates a specific installation rather than every tractor with the same series badge.
Should I choose a front or rear sweeper?
Front mounting lets you see the working brush and sweep before the tyres run over the material. Rear mounting can use an existing rear linkage and PTO, avoiding a powered front installation. Consider access, turning space, other tools and visibility.
What was fitted to the Kioti CK35?
The front case study uses a KM 15045 H hydraulic sweeper, a CAT 0 front linkage, matched ABR brackets, a collector and gully brush. Manual angling was selected. Verify the same arrangement against your exact tractor and available hydraulics.
What was fitted to the Kioti CK2630?
The rear case study lists an HKM 15040 M, collector box and hydraulic collector opening. The current product listing confirms a 150 cm brush width; the article’s item list contains an inconsistent 125 cm description.
Does a front linkage include the attachment connection and drive?
Usually these are separate parts of the system. The linkage carries and lifts the tool, an attachment-specific bracket connects it, and PTO or hydraulics provide power. Specify controls for lift, angling and collector opening as required.
Can my Kioti run a hydraulic sweeper directly?
Confirm the continuous flow and pressure available to the implement, suitable return connection and cooling. Total pump output is not necessarily the usable implement supply. The CK35 case study describes one suitable hydraulic installation; check other models separately.
Can I keep my mower or loader fitted?
Check the exact linkage, drive route, clearances and attachments you want to retain. Some installations permit other equipment to remain fitted, but this needs model-specific checking. Include these requirements when requesting a quotation.
Are the prices complete fitted-system prices?
No. The shown values are individual product listing prices excluding VAT. Linkage, PTO conversion, bracket, shaft, collector, controls and options may be extra. Live prices refresh on kerstenuk.com; checked fallback values remain if the update fails.
What should I send for a quotation?
Send the full tractor model, year or serial number, photographs of the front and rear connections, PTO and hydraulic couplings, plus your task, surface and access width. Tell us which other equipment needs to remain fitted.
Specify a complete working system
What else could your Kioti do?
Tell us the model, maintenance task and site conditions. We’ll help match the attachment, linkage, mounting bracket, drive and controls to your tractor.
